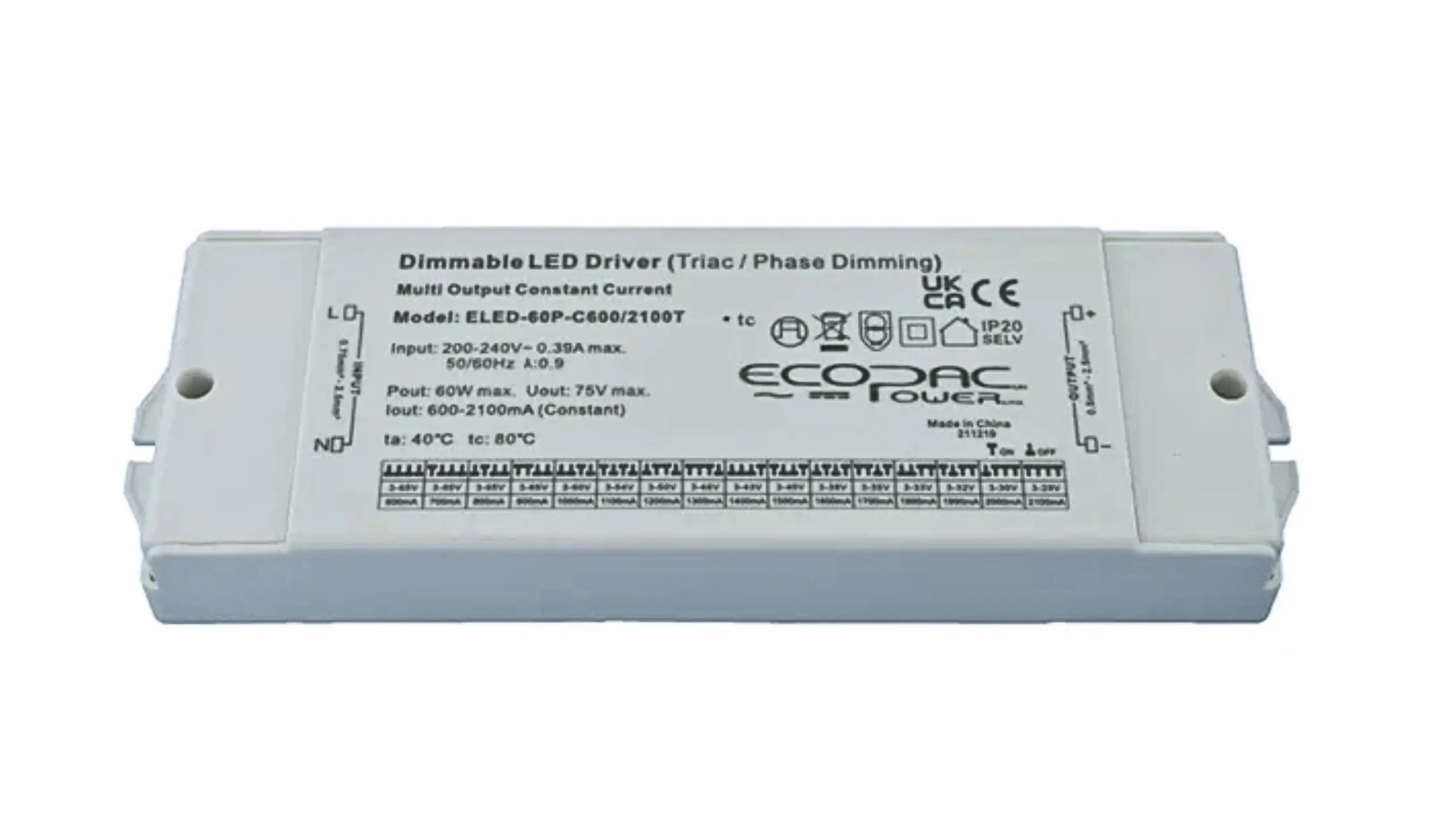

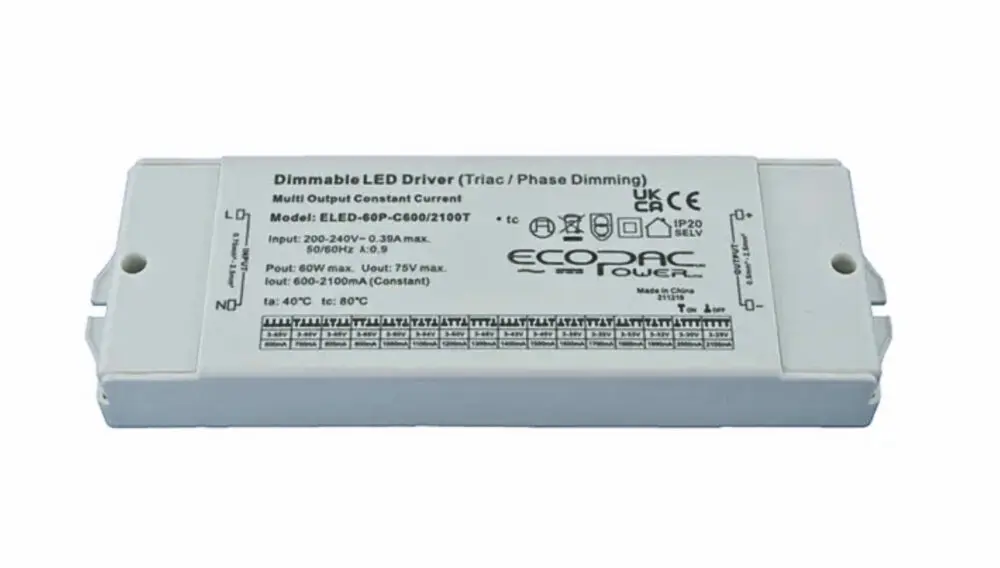

ELED-60P-C600-2100T Series Triac Dimmable Constant Current LED Driver
£32.50 incl. VAT
ELED-60P-C600-2100T Series
Datasheet
Description
ELED-60P-C600/2100T LED Driver – 60W TRIAC-Dimmable Constant Current
Call for project quotations and trade discounts
The ELED-60P-C600/2100T Series is a robust 60W constant current LED driver offering advanced TRIAC dimming control for professional lighting projects. It ensures reliable, flicker-free operation and stable output for architectural and commercial LED systems.
Key Features:
- ☑️ Power Output: 60W
- ☑️ Input Voltage: 200–240VAC, 47–63Hz
- ☑️ Output Current Options: 600–2100mA
- ☑️ Dimming: TRIAC / leading & trailing edge compatible
- ☑️ Efficiency: Up to 88%
- ☑️ Protections: Short circuit / overload / over-temperature
- ☑️ Cooling: Free air convection
- ☑️ Warranty: 3 years
Applications:
- ☑️ Architectural LED systems
- ☑️ Retail and showroom lighting
- ☑️ LED downlights and linear lighting
Available Models:
- ELED-60P-C600-2100T(C600mA)
- ELED-60P-C600-2100T(C700mA)
- ELED-60P-C600-2100T(C800mA)
- ELED-60P-C600-2100T(C900mA)
- ELED-60P-C600-1200T(C1000mA)
- ELED-60P-C600-2100T(C1100mA)
- ELED-60P-C600-2100T(C1200mA)
- ELED-60P-C600-1200T(C1300mA)
- ELED-60P-C600-2100T(C1400mA)
- ELED-60P-C600-2100T(C1500mA)
- ELED-60P-C600-2100T(C1600mA)
- ELED-60P-C600-2100T(C1700mA)
- ELED-60P-C600-2100T(C1800mA)
- ELED-60P-C600-2100T(C1900mA)
- ELED-60P-C600-2100T(C2000mA)
- ELED-60P-C600-2100T(C2100mA)
Why Choose the ELED-60P-C600/2100T?
- ✅ Powerful 60W driver for high-output LEDs
- ✅ Smooth TRIAC dimming performance
- ✅ Excellent current regulation and stability
- ✅ Supported by Ecopac’s trusted reliability and warranty
Additional information
| Weight | .3 kg |
|---|---|
| Dimensions | 192.5 × 62 × 24 mm |
| Wattage | 60W |
| Constant Current Option | 1000mA, 1200mA, 1300mA, 1400mA, 1500mA, 1600mA, 1700mA, 1800mA, 1900mA, 2000mA, 2100mA, 600mA, 700mA, 800mA, 900mA |
| Dimming | Triac |
| IP Rating | IP20 |
