Description
ELED-200-V Series – 0-10V/1-10V Dimmable Constant Voltage LED Drivers
Features
- Three in one dimming function: 0/10Vdc, PWM signal or resistance
- Output constant voltage
- AC input: 200-240VAC
- Built-in active PFC function
- Efficiency up to 89%
- Protections: Short circuit/ Over load/Over Current
- Cooling by free air convection
- IP66 design

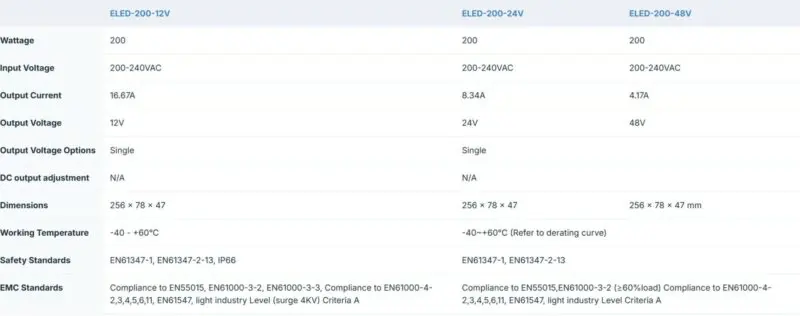

Options
- 12V 200W Driver – ELED-200-12V
- 24V 200W Driver ELED-200-24V
- 48V 200W Driver ELED-200-48V
A compact driver for 0-10V, controllable dimming. Connected in-line before the first light fitting, this driver enables full dimming of the LED product required. With this LED driver your controllable loads such as LED down lights and general LED dimmable lighting. Controlled from any 0~10v device, for example we recommend RAKO infrastructure because we have tested there systems and these items work and dim perfectly together.
Additional information
| Weight | .50 kg |
|---|---|
| Dimensions | 256 × 80 × 53 mm |
| Dimming | 0-10V, 10V PWM dimmable, Dimmable |
| Wattage | 200W |
| Voltage | 12 Volt, 24 Volt, 48 Volt |
| IP Rating | IP66 |
