Ecopac 100W 0-10V Dimmable LED Drivers

£82.00 incl. VAT

Voltage

Clear

Compare

Add to wishlist

SKU: ELED-100-12V Categories: 0~10V Dimmable Drivers, Constant Voltage Drivers, IP Waterproof Drivers, LED Drivers Tags: 0-10V Dimming, 12V, driver

Description
Additional information

Description

ELED-100-V Series

0-10V/1-10V Dimmable Constant Voltage LED Drivers 100W

Features

Constant Voltage Design
0-10V Dimmable
Protections: Short circuit/ Over Voltage/ Overload

Other features

Universal AC input/ Full range
IP66 design for indoor or outdoor installations
Built-in PFC function
Cooling by free air convection
Over 83% efficiency
3 years warranty

Options

12V 100W LED Driver ELED-100-12V
24V 100W LED Driver ELED-100-24V
48V 100W LED Driver ELED-100-48V

A compact driver for 0-10V, controllable dimming. Connected in-line before the first light fitting, this driver enables full dimming of the LED product required. With this LED driver your controllable loads such as LED down lights and general LED dimmable lighting. Controlled from any 0~10v device, for example we recommend RAKO infrastructure because we have tested there systems and these items work and dim perfectly together.

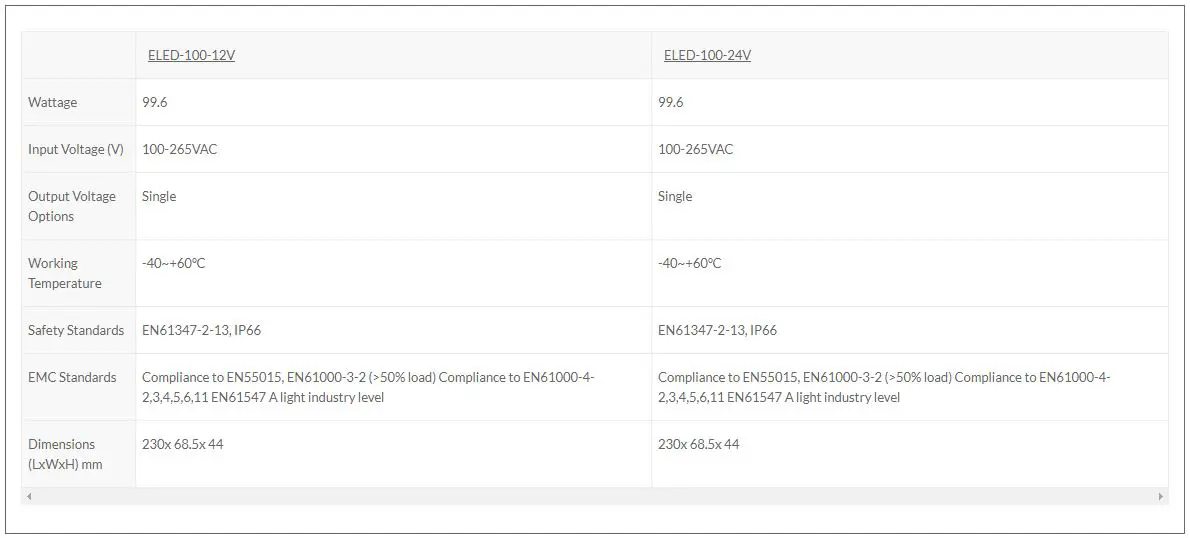

Additional information

Weight	.50 kg
Dimensions	230 × 70 × 46 mm
Dimming	0-10V, 10V PWM dimmable, Dimmable
Wattage	100W
Voltage	12 Volt, 24 Volt, 48 Volt
IP Rating	IP66
