Description
ELED-45-V Series
0-10V/1-10V Dimmable Constant Voltage LED Drivers 45W
Features
- 0-10V/ Potentiometer/10V PWM dimmable
- Constant voltage design
- Universal AC input/ Full range
- IP66 design for indoor or outdoor installations
- Protections: Short circuit/ Overload/ Over voltage/ Over temp.
- Built-in PFC function (PFC>0.98)
- Cooling by free air convection
- Over 83% efficiency
Options
- 12V 45W LED Driver ELED-45-12V
- 24V 45W LED Driver ELED-45-24V
A compact driver for 0-10V, controllable dimming. Connected in-line before the first light fitting, this driver enables full dimming of the LED product required. With this LED driver your controllable loads such as LED down lights and general LED dimmable lighting. Controlled from any 0~10v device, for example we recommend RAKO infrastructure because we have tested there systems and these items work and dim perfectly together.

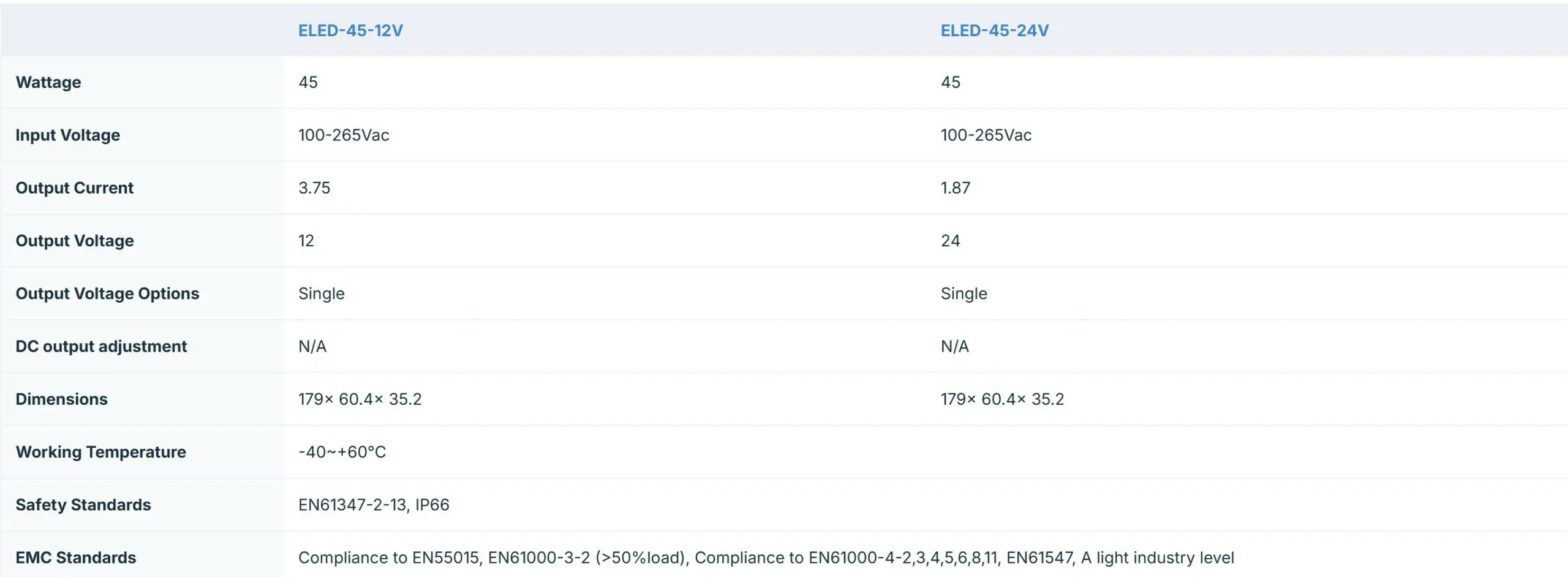

Additional information
| Weight | .30 kg |
|---|---|
| Dimensions | 170 × 50 × 31 mm |
| Dimming | 0-10V, 10V PWM dimmable, Dimmable |
| Wattage | 45W |
| Voltage | 12 Volt, 24 Volt |
| IP Rating | IP20 |
