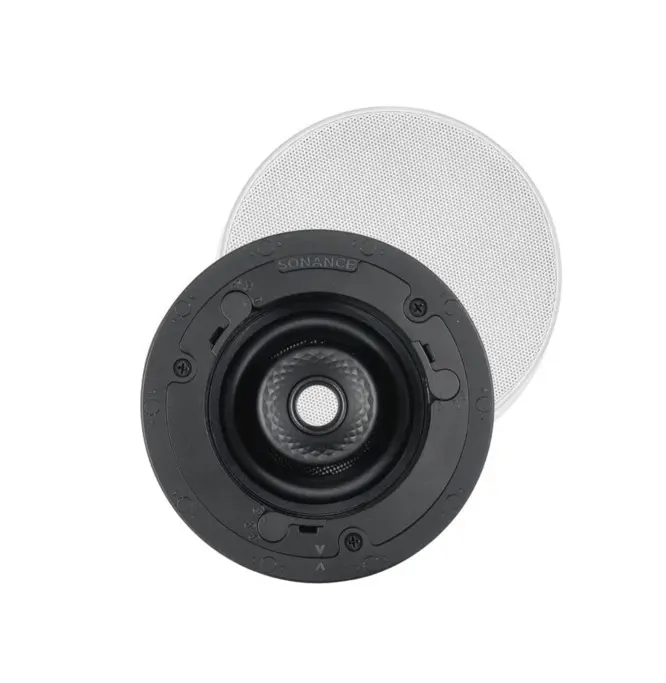

Sonance Visual Experience VX46R SST 4.5″ Round Single Stereo Speaker (Each)
The Sonance Visual Experience VX46R SST is a premium architectural in-ceiling single stereo speaker designed to deliver exceptional sound quality from a single speaker location. Supplied individually, the VX46R SST combines Sonance’s latest advancements in driver technology, crossover engineering, and acoustic design to provide outstanding stereo performance, wide coverage, and exceptional fidelity in areas where installing two separate speakers is impractical.
Featuring a dual voice coil configuration, the VX46R SST incorporates dual 0.75″ ceramic dome tweeters with Ferrofluid cooling and acoustic back chambers, alongside a high-performance 4.5″ Kevlar/Nomex cone woofer with a durable rubber surround. This design allows both left and right stereo channels to be reproduced from a single speaker while maintaining excellent clarity, balance, and musical detail.
The VX46R SST utilises Sonance’s advanced Sinusoidal Textured Waveguide technology to maximise dispersion and ensure consistent audio coverage throughout the listening environment. Combined with the award-winning Sonance CDX crossover technology, derived from the acclaimed Invisible Series, this speaker delivers remarkable warmth, detail, and listening comfort at any volume level.
Designed with installation flexibility in mind, the Visual Experience Series features Sonance’s innovative Flex Frame Mounting System, allowing one-stage or two-stage installation for increased efficiency on both residential and large-scale commercial projects.
The Visual Experience Series offers a variety of grille options, including the supplied Micro Trim grille, optional trimless grilles, and square grille alternatives, ensuring seamless integration into any interior design scheme.
Call for project quotations and trade discounts.
Key Features
✅ Supplied individually (Each)
✅ Single stereo speaker with dual voice coil design
✅ Dual 0.75″ ceramic dome tweeters with Ferrofluid cooling
✅ 4.5″ Kevlar/Nomex woofer with durable rubber surround
✅ Sonance Flex Frame one or two-stage mounting system
✅ Sonance CDX crossover technology for enhanced audio performance
✅ Sonance Sinusoidal Textured Waveguide for maximum sound dispersion
✅ Engineered using advanced simulation and machine learning technologies
✅ Includes brilliant white round Micro Trim grille
✅ Multiple grille options available for custom installations
✅ Ideal for applications requiring stereo sound from a single speaker location
Technical Specifications
☑️ Frequency Response: 58Hz – 20kHz (±3dB)
☑️ Tweeter: 19mm (0.75″) Ceramic Dome, Ferrofluid Cooled with Acoustic Back Chamber and Dual Voice Coil
☑️ Woofer: 114mm (4.5″) Kevlar/Nomex Cone with Rubber Surround
☑️ Dispersion Technology: Sonance Sinusoidal Textured Waveguide
☑️ Impedance: 8Ω Nominal / 6Ω Minimum
☑️ Recommended Power: 5W Minimum / 80W Maximum
☑️ Sensitivity: 90dB SPL (2.83V / 1m)

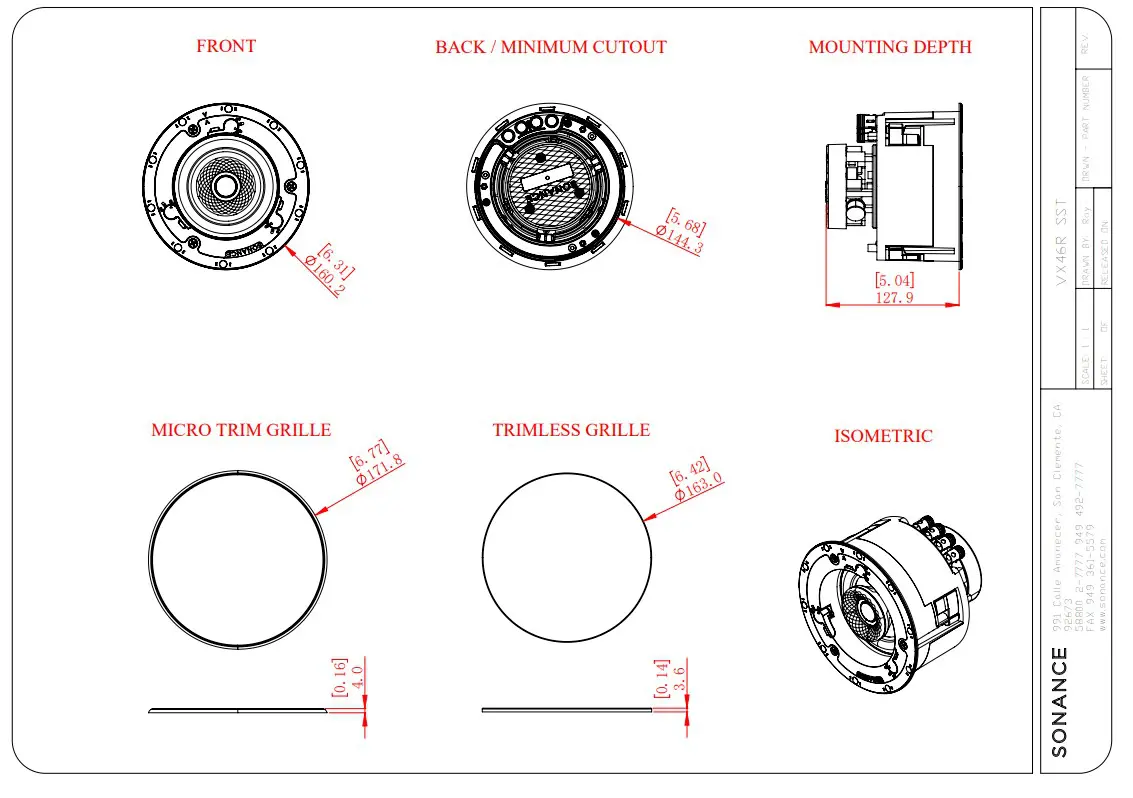

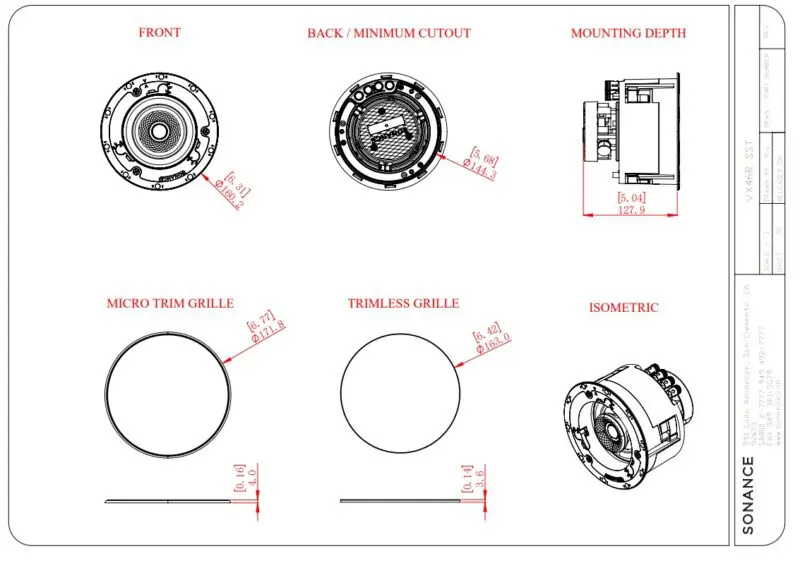

☑️ Standard Grille: Round Micro Trim Grille – 171.8mm (6.77″)
☑️ Speaker Mounting Depth: 117.1mm (4.61″)
☑️ Mounting Depth with Retrofit Enclosure: 146.1mm (5.75″)
☑️ Cut-Out Dimensions: 149mm (5.88″)
☑️ Weight: 1.4kg (3lb)
☑️ Quantity: Each
Control System Compatibility
☑️ Compatible with residential multi-room audio systems
☑️ Ideal for distributed audio and background music applications
☑️ Suitable for integration with leading audio amplification platforms
☑️ Designed for stereo playback from a single speaker location
☑️ Perfect for smaller spaces where dual speaker installation is impractical
Applications
🎵 Bathrooms, en-suites, and cloakrooms
🏡 Kitchens, hallways, utility rooms, and smaller living spaces
🎬 Multi-room audio and distributed music systems
🏛️ Hospitality environments including hotels and guest suites
🛍️ Commercial offices, retail environments, and background music systems
Why Choose the Sonance VX46R SST?
🚀 Premium single stereo speaker delivering exceptional fidelity and coverage
🎯 Dual voice coil design provides true stereo reproduction from a single location
🔊 Advanced waveguide technology ensures consistent room-wide audio performance
🎼 Sonance CDX crossover delivers natural, detailed sound reproduction
🛠️ Flexible installation with the innovative Flex Frame mounting system
🎨 Multiple grille options provide seamless architectural integration
Additional Information
🌟 Ideal for areas where a single speaker must provide stereo sound
🛠️ Optional round trimless, square micro trim, and square trimless grilles available separately
🏆 Developed from over four decades of Sonance loudspeaker innovation
📦 Supplied individually (Each)
