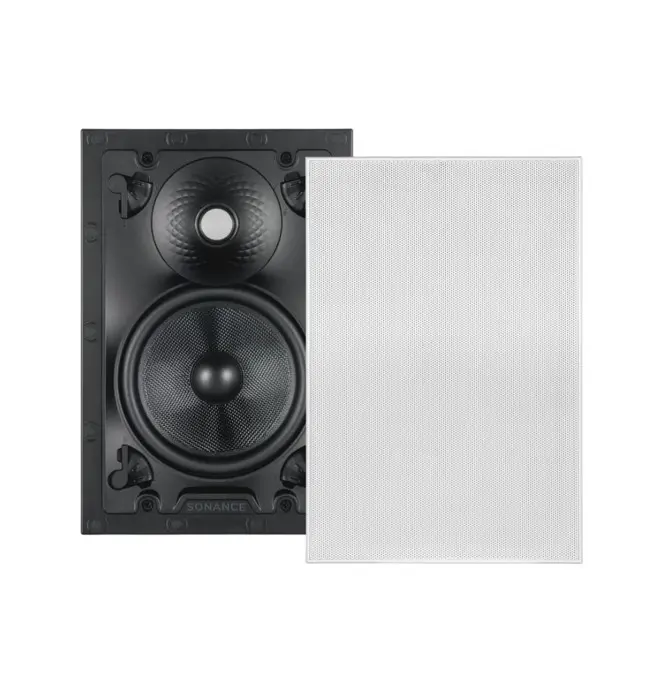

Sonance VX66 SST 6.5″ Single Stereo Rectangular In-Wall Speaker with White Micro Trim Grille (Each)
The Sonance Visual Experience VX66-SST 6.5″ single stereo in-wall speaker is a premium architectural loudspeaker designed to deliver true stereo sound from a single installation point. Supplied as each unit, it is ideal for spaces where multiple speakers are not practical, while still maintaining high-fidelity left and right channel performance.
Part of the advanced Visual Experience Series, the VX66-SST combines precision acoustic engineering, wide dispersion technology, and discreet architectural styling for residential and commercial installations.
Single Stereo (SST) Speaker Design
The VX66-SST is engineered as a dual-channel single stereo speaker, combining left and right audio into one enclosure.
It features:
- 1″ dual voice coil ceramic dome tweeter
Ferrofluid cooled with acoustic back chamber for detailed high-frequency reproduction
- 6.5″ Kevlar Nomex woofer
Rubber surround for controlled bass and natural midrange performance
This configuration allows full stereo sound from a single ceiling or wall position, making it ideal for compact rooms and minimalist installations.
Advanced Acoustic Engineering
The Sonance Visual Experience Series is designed using advanced simulation and modern acoustic engineering techniques to ensure consistent performance across all installations.
Key technologies include:
- Sonance Sinusoidal Textured Waveguide for wide and even sound dispersion
- Sonance CDX crossover technology (derived from the award-winning Invisible Series) for improved tonal balance and reduced distortion
- Machine learning–assisted acoustic tuning for improved accuracy and consistency
These innovations ensure smooth, balanced audio with excellent room coverage.
Flexible Installation System
The VX66-SST features the Sonance Flex Frame mounting system, designed for efficiency and flexibility on professional projects:
- Supports 1-stage or 2-stage installation
- Back can installed first
- Speaker module installed later
- Improves installation speed on large-scale projects
- 4 x RotoLock® clamps for secure mounting
- Suitable for both new-build and retrofit applications
Architectural Design & Grille Options
The VX66-SST is designed for discreet integration into modern interiors:
- Standard brilliant white micro trim grille included
- Bezel size reduced by up to 50% compared to Visual Performance series
- Optional trimless grille available (sold separately)
- Paintable grille for seamless architectural matching
System Compatibility
The VX66-SST integrates with professional distributed audio systems, including:
- Blaze Audio PowerZone Connect amplifiers
- BLZ-POWERZONE-CONNECT-1U-504A
- BLZ-POWERZONE-CONNECT-1U-1008A
- Dante-enabled amplifier options available within the same range
Technical Specifications
- Frequency Response: 43Hz – 20kHz (±3dB)
- Tweeter: 25mm (1″) ceramic dome, dual voice coil, ferrofluid cooled
- Woofer: 6.5″ Kevlar Nomex cone with rubber surround
- Impedance: 8Ω nominal / 6Ω minimum
- Sensitivity: 90dB SPL (2.83V / 1m)
- Recommended Power: 5W – 140W
- Speaker Type: Single Stereo (SST)
- Mounting System: 2-stage Flex Frame, 4 x RotoLock® clamps

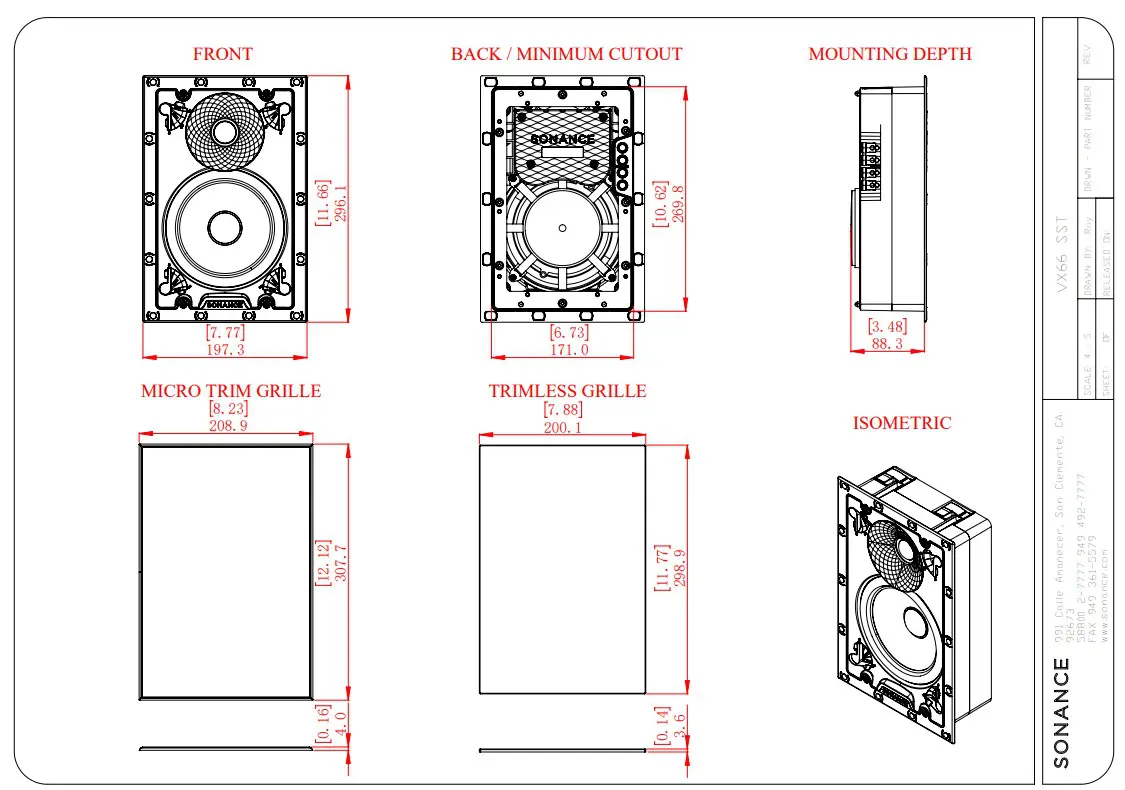

- Cut-Out Dimensions: 273mm x 176mm
- Mounting Depth: 88.3mm
- Weight: 2.3kg
- Quantity: Each
Ideal Applications
- Bathrooms and en-suites
- Kitchens and open-plan living spaces
- Hallways and corridors
- Hotel rooms and hospitality environments
- Offices and compact commercial installations
Why Choose the Sonance VX66-SST?
The Sonance VX66-SST delivers high-quality stereo sound from a single discreet speaker location. Its advanced dual voice coil design, wide dispersion waveguide, and refined crossover system make it ideal for installations where space is limited but audio performance cannot be compromised.
