Description
Sonance Visual Experience VXQ88R 8″ Round Speaker with QuadraTech Tweeter (Each)
The Sonance Visual Experience VXQ88R is the flagship architectural in-ceiling speaker within the Visual Experience range, engineered for uncompromising performance, extreme durability, and reference-grade audio fidelity. Supplied individually, the VXQ88R represents the highest level of acoustic engineering in the VX series, combining advanced driver design, precision crossover technology, and marine-grade construction for both interior and extreme outdoor environments.
At its core, the VXQ88R features Sonance’s proprietary QuadraTech tweeter system with four titanium domes, paired with an 8″ aluminium woofer with Santoprene surround. This advanced configuration delivers exceptional clarity, extended frequency response, and outstanding dynamic performance, ensuring highly detailed sound reproduction across both music and speech applications.
The VXQ88R utilises Sonance’s Cymatic diffuser technology combined with the QuadraTech tweeter array to deliver extremely wide and even dispersion, ensuring consistent sound coverage throughout the listening environment. This makes it ideal for large residential spaces, high-end commercial installations, and demanding architectural audio applications where uniform sound performance is critical.
As part of the Visual Experience VXQ series, this speaker incorporates Sonance CDX crossover technology, originally developed for the award-winning Invisible Series. This ensures precise frequency separation, reduced distortion, and a natural, balanced tonal character even at higher listening levels.
Engineered for extreme environments, the VXQ88R conforms to Military Standard 810G for humidity, salt spray, temperature, and UV exposure, and carries an IP67 waterproof rating. With an operating temperature range from -34°C to 90°C, it is suitable for both indoor luxury installations and harsh marine or outdoor environments.
Installation is streamlined through Sonance’s RotoLock® mounting system, providing secure, efficient fitting while maintaining long-term reliability. The VXQ88R also uses Sonance’s post-capture grille system, offering compatibility with VP Extreme grille options for enhanced installation flexibility and finish consistency.
Call for project quotations and trade discounts.
Key Features
✅ Supplied individually (Each)
✅ Flagship Sonance Visual Experience VXQ series model
✅ QuadraTech tweeter system with four titanium domes
✅ 8″ aluminium woofer with Santoprene surround
✅ IP67 rated for extreme weather and marine environments
✅ Conforms to Military Standard 810G (humidity, salt spray, temperature, UV)
✅ Sonance Cymatic diffuser for wide and even sound dispersion
✅ Sonance CDX crossover technology for refined audio performance
✅ RotoLock® mounting system for secure and efficient installation
✅ Post-capture grille system for enhanced durability and compatibility
✅ Brilliant white Micro Trim grille included
✅ Engineered using advanced simulation and machine learning
Technical Specifications
☑️ Frequency Response: 30Hz – 20kHz (±3dB)
☑️ Tweeter: 25mm (1″) QuadraTech, Four Titanium Domes, Ferrofluid Cooled, Acoustic Back Chamber
☑️ Woofer: 203mm (8″) Aluminium Cone with Santoprene Surround
☑️ Dispersion Technology: QuadraTech Tweeter with Cymatic Diffuser
☑️ Speaker Pivot: Non-Pivoting
☑️ Impedance: 8Ω Nominal / 6Ω Minimum
☑️ Recommended Power: 5W Minimum / 175W Maximum
☑️ Sensitivity: 91dB SPL (2.83V / 1m)
☑️ Mounting Technology: Single Stage with 4 x RotoLock® Clamps
☑️ Protection Rating: IP67
☑️ Operating Temperature: -34°C to 90°C (-30°F to 194°F)

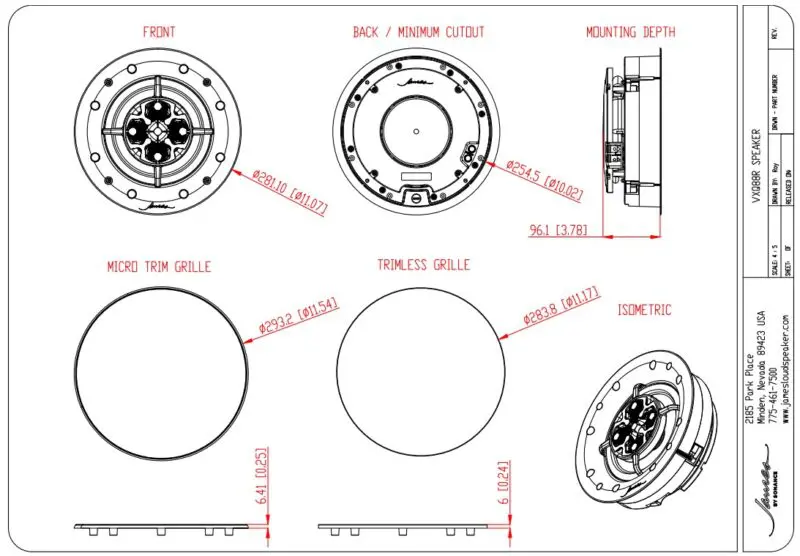

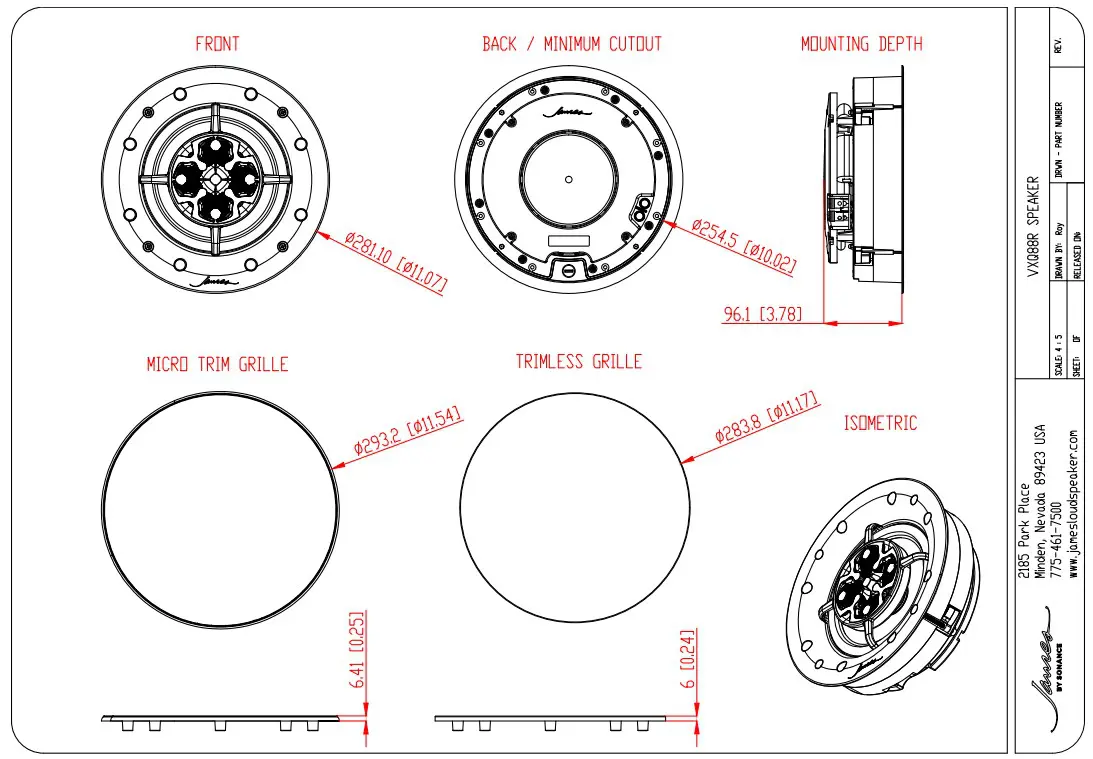

☑️ Standard Grille: Round Micro Trim Grille – 293.2mm (11.54″)
☑️ Speaker Mounting Depth: 96.1mm (3.78″)
☑️ Cut-Out Dimensions: 257mm (10.125″)
☑️ Weight: 2.8kg (6lb)
☑️ Quantity: Each
Control System Compatibility
☑️ Suitable for high-performance residential and commercial audio systems
☑️ Compatible with distributed audio and high-output amplification systems
☑️ Recommended for use with professional-grade multi-zone amplifiers
☑️ Ideal for integration in marine, hospitality, and luxury architectural projects
☑️ Designed for systems requiring extreme environmental durability and reliability
Applications
🎵 High-end residential audio systems
🏡 Luxury homes, open-plan living spaces, and entertainment rooms
🏛️ Hospitality environments including hotels, resorts, and fine dining venues
🌊 Marine and coastal installations requiring IP67-rated protection
🛍️ Commercial spaces, retail environments, and architectural feature audio
🎬 Large-format media and immersive sound environments
Why Choose the Sonance VXQ88R?
🚀 Flagship performance within the Visual Experience VXQ range
🔊 QuadraTech tweeter system delivers ultra-detailed, high-fidelity sound
🌐 Exceptional dispersion ensures even coverage across large spaces
🛡️ IP67 and Military Standard 810G compliance for extreme durability
🎼 CDX crossover technology ensures natural tonal balance and clarity
🛠️ RotoLock® system enables fast, secure, and reliable installation
🏆 Designed using advanced simulation and machine learning engineering
Additional Information
🌟 Premium flagship architectural speaker for demanding environments
🛠️ Compatible grille system with VP Extreme post-capture design
🎨 Supplied with brilliant white Micro Trim grille
🏗️ Suitable for both luxury interior and extreme outdoor applications
📦 Supplied individually (Each)
