Sonance Visual Experience VX46R 4.5″ Pivoting Two-Way Round Speaker (Pair)

The Sonance Visual Experience VX46R is a premium in-ceiling architectural speaker designed to deliver exceptional audio performance with discreet aesthetics and installation flexibility. Supplied as a pair, the VX46R combines Sonance’s latest advancements in driver technology, crossover engineering, and waveguide design to provide outstanding clarity, coverage, and listening consistency throughout any space.

Featuring a fully pivotable coincident woofer and tweeter assembly, the VX46R allows precise sound direction and optimal performance in a wide range of residential and commercial installations. The speaker incorporates a 0.75″ ceramic dome tweeter with Ferrofluid cooling and an acoustic back chamber, paired with a 4.5″ Kevlar/Nomex cone woofer with rubber surround for accurate, natural sound reproduction.

The VX46R utilises Sonance’s innovative Sinusoidal Textured Waveguide technology to maximise dispersion and ensure balanced audio coverage throughout the listening environment. Combined with the advanced Sonance CDX crossover, derived from the award-winning Invisible Series, these speakers deliver remarkable detail, warmth, and musicality at all listening levels.

Designed with installation efficiency in mind, the Visual Experience Series features Sonance’s Flex Frame Mounting System, allowing one-stage or two-stage installation for maximum flexibility on both residential and large-scale commercial projects.

The Visual Experience Series is available with a variety of grille options, including the supplied Micro Trim grille, optional trimless grilles, and square grille alternatives, ensuring seamless integration into any interior design scheme.

Call for project quotations and trade discounts.

Key Features

✅ Supplied as a pair
✅ Fully pivotable coincident woofer and tweeter assembly
✅ Sonance Flex Frame one or two-stage mounting system
✅ 0.75″ ceramic dome tweeter with Ferrofluid cooling and acoustic back chamber
✅ 4.5″ Kevlar/Nomex woofer with durable rubber surround
✅ Advanced Sonance CDX crossover technology
✅ Sonance Sinusoidal Textured Waveguide for exceptional sound dispersion
✅ Engineered using advanced simulation and machine learning technologies
✅ Includes brilliant white round Micro Trim grille
✅ Multiple grille options available for bespoke installations
✅ Designed for premium residential and commercial audio applications

Technical Specifications

☑️ Frequency Response: 58Hz – 20kHz (±3dB)
☑️ Tweeter: 19mm (0.75″) Ceramic Dome, Ferrofluid Cooled with Acoustic Back Chamber
☑️ Woofer: 114mm (4.5″) Kevlar/Nomex Cone with Rubber Surround
☑️ Dispersion Technology: Sonance Sinusoidal Textured Waveguide
☑️ Speaker Pivot: Fully Pivotable Coincident Woofer and Tweeter
☑️ Impedance: 8Ω Nominal / 6Ω Minimum
☑️ Recommended Power: 5W Minimum / 80W Maximum
☑️ Sensitivity: 90dB SPL (2.83V / 1m)
☑️ Mounting Technology: Flex Frame 1 or 2 Stage with 3 x RotoLock® Clamps
☑️ Grille Material: Perforated Steel

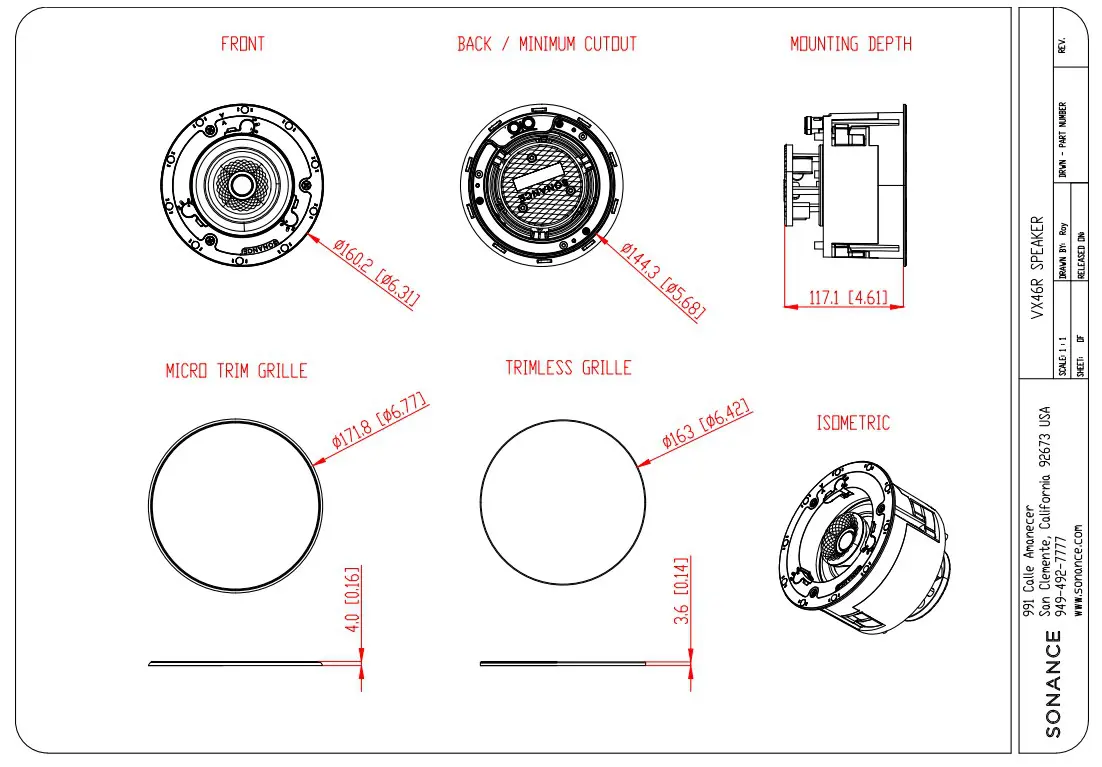

☑️ Standard Grille: Round Micro Trim Grille – 171.8mm (6.77″)
☑️ Cut-Out Dimensions: 149mm (5.875″)
☑️ Speaker Mounting Depth: 117.1mm (4.61″)
☑️ Mounting Depth with Retrofit Enclosure: 146.1mm (5.75″)
☑️ Quantity: Pair

Control System Compatibility

☑️ Compatible with residential multi-room audio systems
☑️ Ideal for distributed audio and home cinema applications
☑️ Suitable for integration with leading audio amplification platforms
☑️ Recommended for use with Blaze Audio PowerZone Connect amplifiers
☑️ Dante-enabled amplifier options available within the Blaze Audio range

Applications

🎵 Multi-room audio systems
🏡 Residential living spaces, kitchens, bedrooms, and hallways
🎬 Media rooms and home cinema installations
🏛️ Hospitality environments including hotels, bars, and restaurants
🛍️ Commercial offices, retail environments, and presentation spaces

Why Choose the Sonance VX46R?

🚀 Premium architectural speaker engineered for exceptional fidelity and coverage
🎯 Fully pivotable driver assembly for precise sound placement
🔊 Advanced waveguide technology ensures consistent listening throughout the room
🎼 Sonance CDX crossover delivers detailed, natural sound reproduction
🛠️ Flexible installation with the innovative Flex Frame mounting system
🎨 Multiple grille options provide seamless architectural integration

Additional Information

🌟 Includes round brilliant white Micro Trim grilles
🛠️ Optional round trimless, square micro trim, and square trimless grilles available separately
🎛️ Recommended amplifier options available from the Blaze Audio PowerZone Connect range
🏆 Developed from over four decades of Sonance loudspeaker innovation
📦 Supplied as a pair
