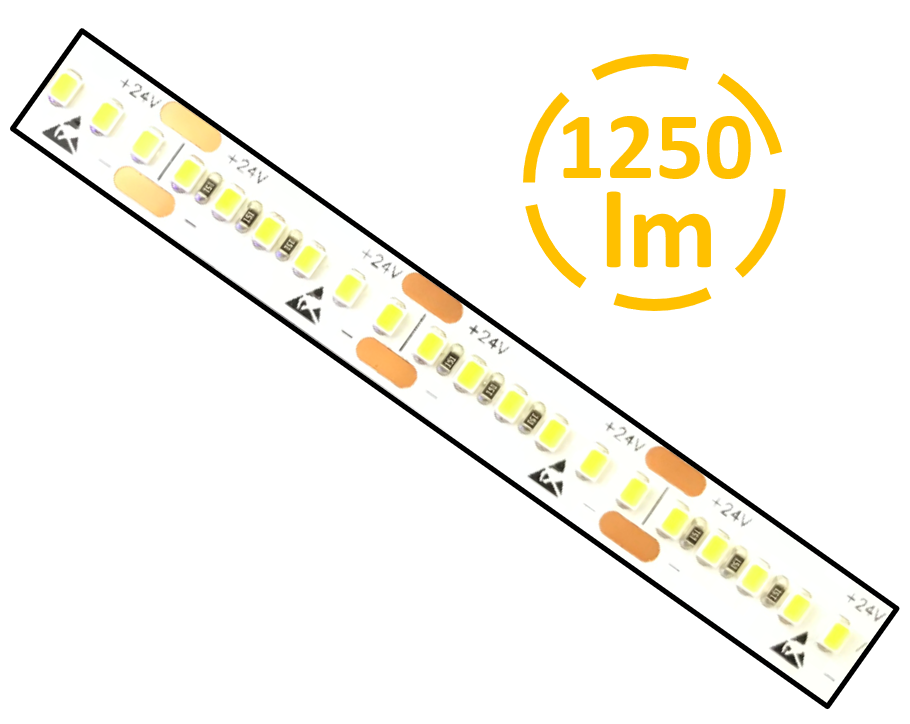

18W per Metre – 24V LED Ribbon Tape (Constant Current)
The PRO Series 18W Constant Current LED Ribbon Tape is a high-performance linear lighting solution engineered for stability, uniformity and long cable-run applications. Designed using the latest Samsung SMD technology, this ribbon delivers bright, consistent illumination with excellent efficiency — making it ideal for architectural, commercial and specialist feature lighting projects.
Manufactured to any project length and costed per metre, this ribbon ensures superior lumen output and reliability. When installed with our aluminium heat-sink channel and supplied FREE LED Surge Protection Module (SPM on orders over £500), the PRO Series qualifies for a full 5-year warranty.
Integrated thermal sensor protection is available on request, allowing the ribbon to automatically dim in overheating conditions for extended LED lifespan and performance stability.
Call for project quotations & trade discounts
Key Features
- ✅ Constant current LED ribbon for long-run stability
- ✅ High-efficiency Samsung 2216 LEDs (300 LEDs per metre)
- ✅ 18W per metre producing 1250 lm
- ✅ Available in multiple single colours & CCTs
- ✅ Optional thermal protection circuitry
- ✅ 5-year warranty with heat-sink + Surge Protection Module
- ✅ Designed for precision architectural and display lighting

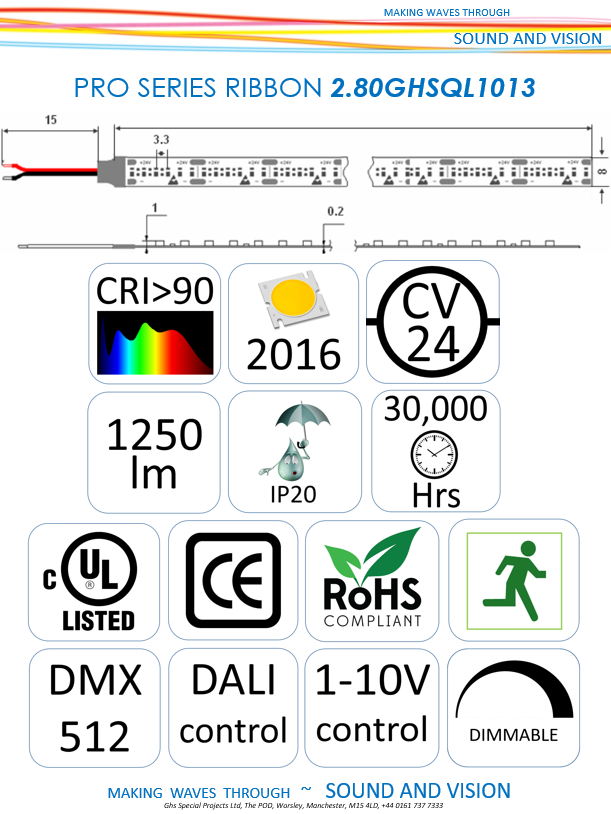

Technical Specifications
-
- ☑️ Power Consumption: 18 W per metre
- ☑️ Supply Voltage: 24 V DC (constant voltage)
- ☑️ LED Technology: Constant Current Regulation
- ☑️ Lumen Output: 1250 lm per metre
- ☑️ Beam Angle: 120°
- ☑️ LED Chip Type: 2216 / 300 LEDs per metre
- ☑️ Cutting Points: Every 6 LEDs
- ☑️ IP Rating: IP20
- ☑️ CRI: >80 Ra
- ☑️ CCT/Colour Options: 3000K / 4000K / 5500K / Red / Green / Blue
- ☑️ Dimensions: 1m × 8mm × 2mm (custom lengths available)
- ☑️ Lifetime: 30,000 hours (environment & installation dependent)
- ☑️ Control System Compatibility: Lutron, Rako, Mode, Crestron
- ☑️ Additional Control Support: 1–10 V, Triac, DALI, DMX512
Applications
- 🎨 Architectural & linear accent lighting
- 🏛️ Display cases, showcases & exhibitions
- 🏡 Residential linear installations & coving
- 🛍️ Retail, hospitality & ambient lighting
- 🌌 Custom star ceilings & bespoke lighting projects
Why Choose the 18W Constant Current Ribbon?
- 🚀 Constant current design ensures long-run uniformity & stability
- 💡 300 LEDs/m for ultra-smooth, dot-free illumination
- 🛡️ Thermal protection available for enhanced lifespan
- 🎛️ Fully compatible with advanced lighting control systems
- 📏 Custom lengths manufactured to order
- 🔌 FREE Surge Protection Module on eligible orders
- 📐 Supported by GHS design, control & integration services
Additional Information
- 🌟 FREE design support — ensuring compatibility with BMS & automation
- 🛠️ Custom star ceiling solutions available
- 🛡️ 5-year warranty when installed with heat-sink & SPM
