Description
14.4W per Metre – 24V LED Ribbon Tape (Constant Current)
The PRO Series 14.4W Constant Current LED Ribbon Tape is a high-performance linear lighting solution engineered for long-run stability, consistent brightness and excellent efficiency. Using advanced Samsung SMD LED technology, this ribbon is ideal for architectural, commercial and detailed feature lighting applications where smooth, uniform illumination is essential.
Manufactured to any project length and costed per metre, this LED ribbon offers exceptional reliability. When installed using our aluminium heat-sink channel and a FREE LED Surge Protection Module (SPM supplied on orders over £500), it qualifies for our full 5-year warranty.
Integrated thermal protection is available on request, enabling the ribbon to automatically reduce output if overheating conditions are detected — helping extend LED lifespan and maintain long-term performance.
Call for project quotations & trade discounts
Key Features
- ✅ Constant current LED ribbon for superior long-run consistency
- ✅ High-efficiency Samsung 5050 LEDs (60 LEDs per metre)

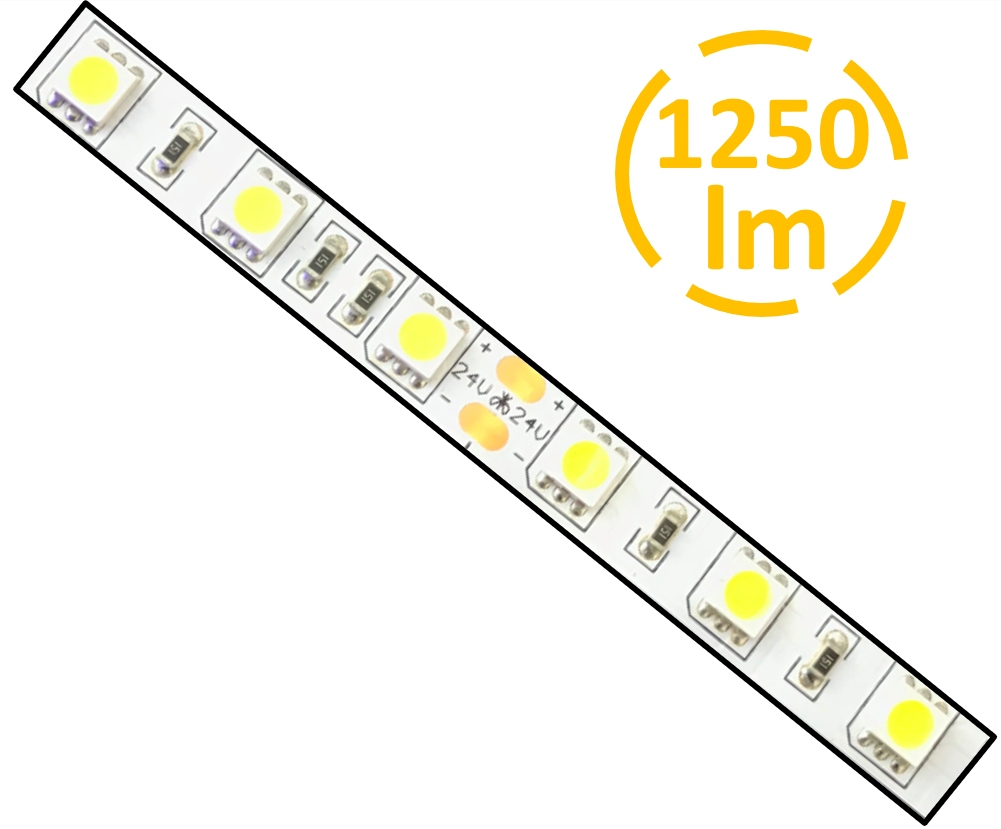

- ✅ 14.4W per metre producing 1250 lm
- ✅ Smooth, uniform light distribution with 120° beam angle
- ✅ Optional thermal safety protection
- ✅ 5-year warranty with heat-sink & Surge Protection Module
- ✅ Fully bespoke lengths available

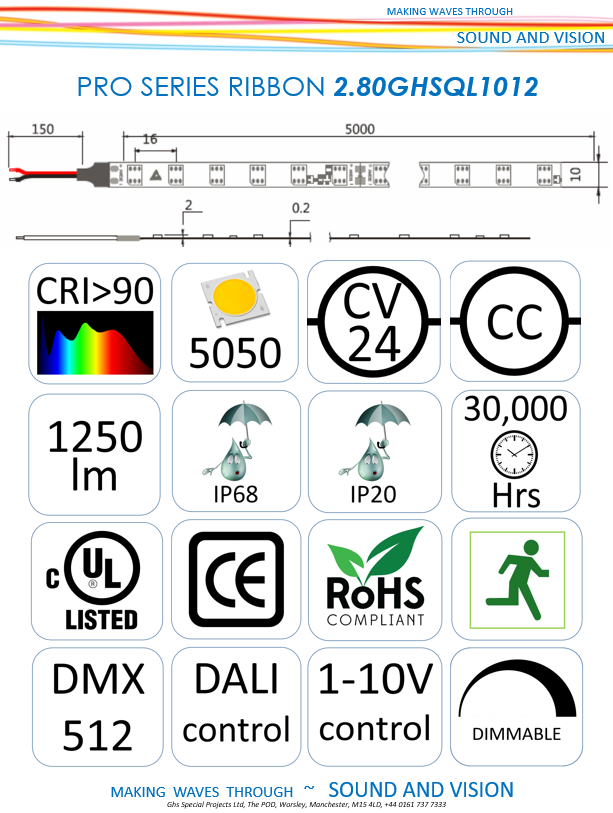

Technical Specifications
-
- ☑️ Power Consumption: 14.4 W per metre
- ☑️ Supply Voltage: 24 V DC (constant voltage)
- ☑️ LED Technology: Constant Current Regulation
- ☑️ Lumen Output: 1250 lm per metre
- ☑️ Beam Angle: 120°
- ☑️ LED Chip Type: 5050 / 60 LEDs per metre
- ☑️ Cutting Points: Every 3 LEDs
- ☑️ IP Rating Options: IP20 / IP67 / IP68
- ☑️ CRI: >80 Ra
- ☑️ CCT/Colour Options: 3000K / 4000K / 5500K / Red / Green / Blue
- ☑️ Dimensions: 1m × 10mm × 2mm (custom lengths available)
- ☑️ Lifetime: 30,000 hours (environment dependent)
- ☑️ Control System Compatibility: Lutron, Rako, Mode, Crestron
- ☑️ Additional Control Support: 1–10 V, Triac, DALI, DMX512
Applications
- 🎨 Architectural & commercial linear lighting
- 🏛️ Display cases, showcases & museum installations
- 🏡 Residential coving, kitchens & decorative accents
- 🛍️ Retail & hospitality ambient lighting
- 🌌 Custom star ceiling applications
Why Choose the 14.4W Constant Current Ribbon?
- 🚀 High-efficiency Samsung LED platform
- 💡 Excellent lumen output for mid-power applications
- 🛡️ Optional thermal protection extends long-term reliability
- 🎛️ Integrates seamlessly with premium lighting control systems
- 📏 Custom-made lengths for precision installations
- 🔌 FREE Surge Protection Module on eligible orders
- 📐 Supported by GHS design, integration & engineering expertise
Additional Information
- 🌟 FREE design support for BMS & control integration
- 🛠️ Made-to-order star ceiling solutions available
- 🛡️ 5-year warranty when installed with heat-sink & SPM
- 🚚 FREE delivery on orders over £100
