Core Horizontal Bend LED Linear FlexiNeon (11.5x21mm)

The Core Horizontal Bend LED Neon Flex is a professional-grade linear lighting solution designed for high-end architectural installations. Unlike vertical alternatives, this flex is engineered to bend horizontally relative to the light output, allowing for seamless curves along walls, facades, and custom signage.

Constructed from premium molded silicone, this fully diffused neon-effect light is built to withstand the elements, making it suitable for both indoor and outdoor applications. This is a made-to-order product; once your order is placed, our sales team will contact you to finalise lengths, colors, and cable entry specifications to ensure a perfect fit for your project.

Key Features

✅ Horizontal Bend Technology: Bends side-to-side relative to the light surface—perfect for following architectural contours.
✅ Dot-Free Illumination: Fully diffused linear light creates a continuous neon-style glow without visible hotspots.
✅ Durable Silicone Jacket: High-grade construction designed to resist UV, salt water, and extreme temperatures.

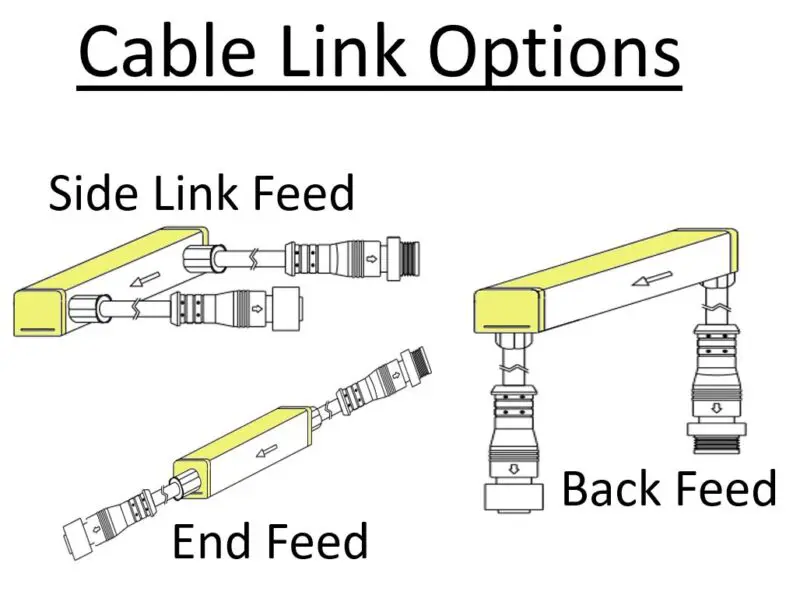

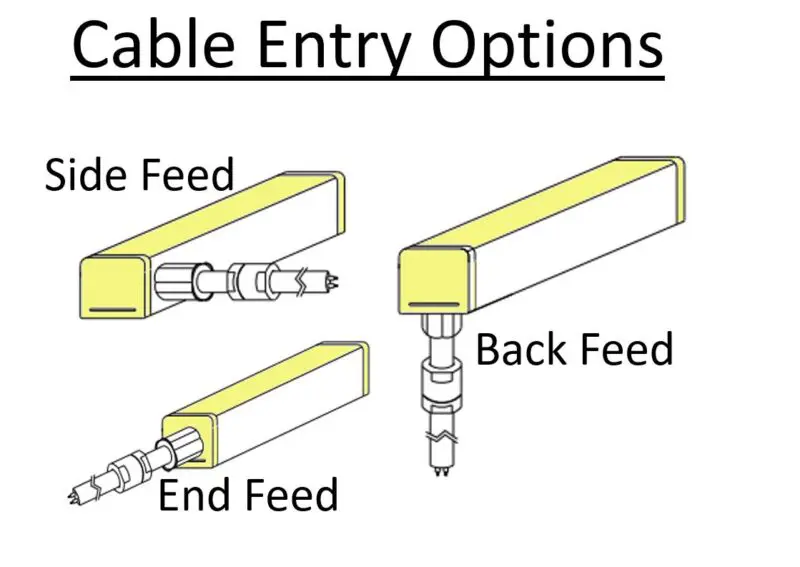

✅ Customisable Configuration: Cuttable every 100mm and available with various cable entry choices.
✅ Professional Grade: IP68 rated (subject to installation method) for complete environmental protection.
✅ Zero Voltage Drop: Custom lengths over 5m are supplied with dual-end cabling to ensure consistent brightness.

Technical Specifications

☑️ Dimensions: 11.5mm x 21mm
☑️ Voltage: 24VDC
☑️ Power Consumption: 9W per metre
☑️ LED Type: 120 SMD Chip-3528 per metre
☑️ Luminous Flux: 320 Lumens @ 6000K
☑️ CRI: >80
☑️ Cutting Points: Every 100mm (12 LEDs)
☑️ Max Run Length: 5m (Standard) / 10m (with dual-end power feeding)
☑️ Available Colours: 3000K, 4000K, 5000K, Red, Green, Blue, RGB, RGBWW
☑️ Connector: 600mm Molded injection connector included
☑️ Lifespan: 50,000 Hours

Dimming & Smart Home Compatibility

Core Neon Flex is fully compatible with professional control protocols and high-end smart home integration:

✅ Protocols: Triac, DMX, Dali, 0-10V, and PWM.
✅ Smart Systems: RAKO, RTI, Lutron, Control 4, Casambi, and Crestron.

Project Support & Accessories

As this is a Full Working System, it includes the 5M /10M FlexiNeon and molded connectors. Additional installation accessories such as mounting brackets and clips are available upon request. We recommend contacting us for bespoke lengths and specific cable entry types.

CALL FOR PROJECT DISCOUNTS: We offer special pricing for large-scale projects. If you need technical assistance or a FREE full lighting design, please call our team on 0161 737 7333 or email us to discuss your requirements.
