Vertical Bend 13x12mm LED NeonFlex Kit with Driver

The NEONSIDE1312/10MKIT-WW is a professional-grade Vertical Bend LED Neon Flex kit, specifically designed for slimline architectural details, furniture integration, and high-end signage. This ultra-slim micro profile provides a fully diffused, dot-free linear light.

Engineered with a vertical bend radius, this flex curves perpendicular to the light output—ideal for side-to-side bending when the light is facing sideways. Constructed from high-quality silicone, it is exceptionally durable and built to withstand the elements in both indoor and outdoor spaces. This 10-metre kit is designed to be powered at both ends to ensure 0% voltage drop and maximum lighting performance across the entire run.

Key Features

✅ Ultra-Slim Micro Profile: 13mm x 12mm dimensions, perfect for discreet furniture and signage applications.
✅ Vertical Bend Precision: Specialized flexibility for side-to-side contouring relative to the light direction.
✅ High Color Rendering: Features a CRI of >90 for superior color accuracy and premium visual appeal.

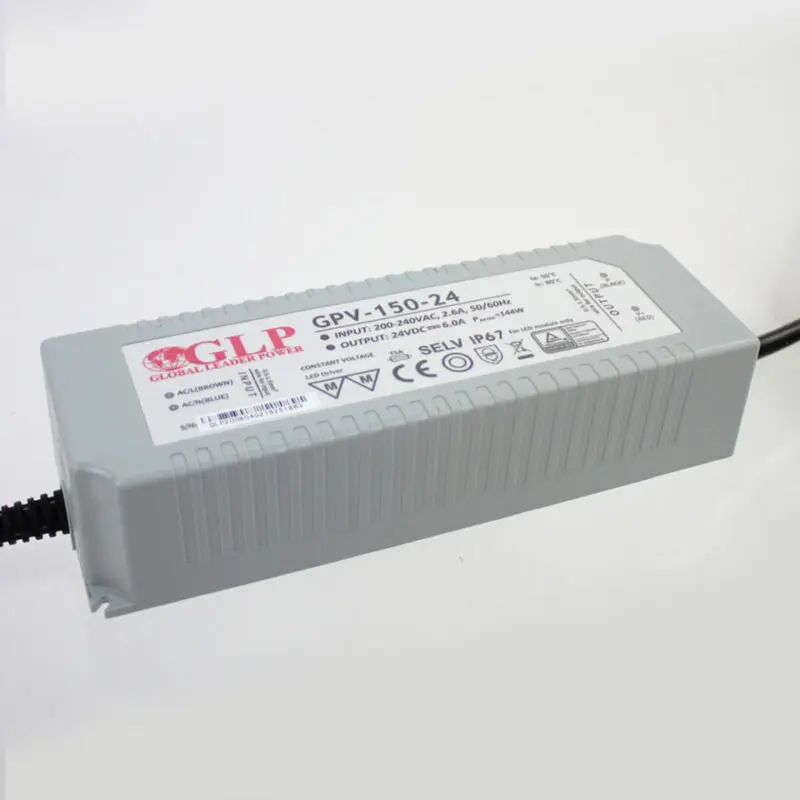

✅ Full Working System: Includes a 10m Neon Flex reel, On/Off switched driver, and installation clips.
✅ Robust Protection: IP67 rated against moisture and IK08 rated for impact resistance.
✅ Precision Cutting: Short 50mm cut points allow for high-accuracy length customization.

Technical Specifications

☑️ Dimensions: 13mm x 12mm x 10,000mm
☑️ Voltage: 24VDC
☑️ Power Consumption: 10.6W per metre
☑️ Colour Temperature: 2700K (Very Warm White), 3000K (Warm White), 4000K (Neutral White), 6000K (Cool White)
☑️ Luminous Flux: 670 Lumens per metre
☑️ Minimum Bend Radius: 60mm
☑️ CRI: >90
☑️ Cutting Points: Every 50mm
☑️ IP/IK Rating: IP67 / IK08
☑️ Warranty: 3 Years
☑️ Certifications: CE, RoHs, UL, and REACH

Dimming & Smart Home Compatibility

While the included driver is a standard On/Off switched unit, the Neon Flex itself is fully compatible with professional control protocols when paired with the appropriate dimmable driver:

✅ Protocols: Triac, DMX, Dali, 0-10V, and PWM.
✅ Smart Systems: RTI, Lutron, Loxone, Rako, Control 4, Lightwave, Wiz, Casambi, and Crestron.

Installation & Customization

This kit comes as a Full Working System including the driver and mounting clips. For bespoke projects, this neon type can be cut easily at the allocated points. We recommend powering the unit at both ends using the provided driver to maintain consistent brightness over the 10-metre length.
