Vertical Bend 13x12mm LED NeonFlex Colour Change (10M Kit)

The NEONSIDE1312/10MKIT-RGB / RGBW is a high-performance, colour-changing LED Neon Flex system designed for vibrant architectural accents and signage. With its ultra-slim micro profile and vertical bend flexibility, this RGB and RGBW system allows for stunning side-to-side contouring while providing a fully diffused, seamless line of light.

Constructed from premium molded silicone, this neon flex is engineered to withstand the elements, making it an ideal choice for both interior feature lighting and exterior building illumination. This 10-metre kit is designed to be powered at both ends to ensure consistent colour and brightness across the entire length, eliminating voltage drop.

Key Features

✅ RGB / RGBW Colour Changing: Full spectrum control to create dynamic moods, branding, or atmospheric effects.
✅ Ultra-Slim Micro Profile: 13mm x 12mm dimensions allow for discreet installation in furniture, joinery, and tight spaces.
✅ Vertical Bend Precision: Designed to bend side-to-side relative to the light direction for precise architectural curves.
✅ Full Working System: Complete kit includes 10m RGB / RGBW Neon Flex, On/Off Power Supply, and a pack of 28 mounting clips.
✅ Extreme Durability: IP67 waterproof and IK68 impact-rated silicone construction built for longevity.
✅ Precision Cutting: Features short 50mm cut points for maximum flexibility during installation.

Technical Specifications

☑️ Dimensions: 13mm x 12mm x 10,000mm
☑️ Voltage: 24VDC
☑️ Power Consumption: 13.2 Watts per metre
☑️ Colour Type: RGB (Red, Green, Blue), RGBW3K, RGBW5K (Red,Green, Blue, Warm / Cool White)
☑️ Wavelengths: Red (620-630nm), Green (525-530nm), Blue (465-470nm)
☑️ Minimum Bend Radius: 60mm
☑️ Cutting Points: Every 50mm
☑️ IP/IK Rating: IP67 / IK68
☑️ Warranty: 3 Years
☑️ Lifespan: Up to 36,000 Hours

Dimming & Smart Home Compatibility

This system is compatible with a wide range of professional RGB controllers and smart home systems (requires an RGB controller, sold separately):

✅ Protocols: Triac, DMX, Dali, 0-10V, and PWM.
✅ Smart Systems: RTI, Lutron, Loxone, Rako, Control 4, Lightwave, Wiz, Casambi, and Crestron.

Included in the Kit

☑️ 10 Metre Vertical Bend RGB Neon Flex

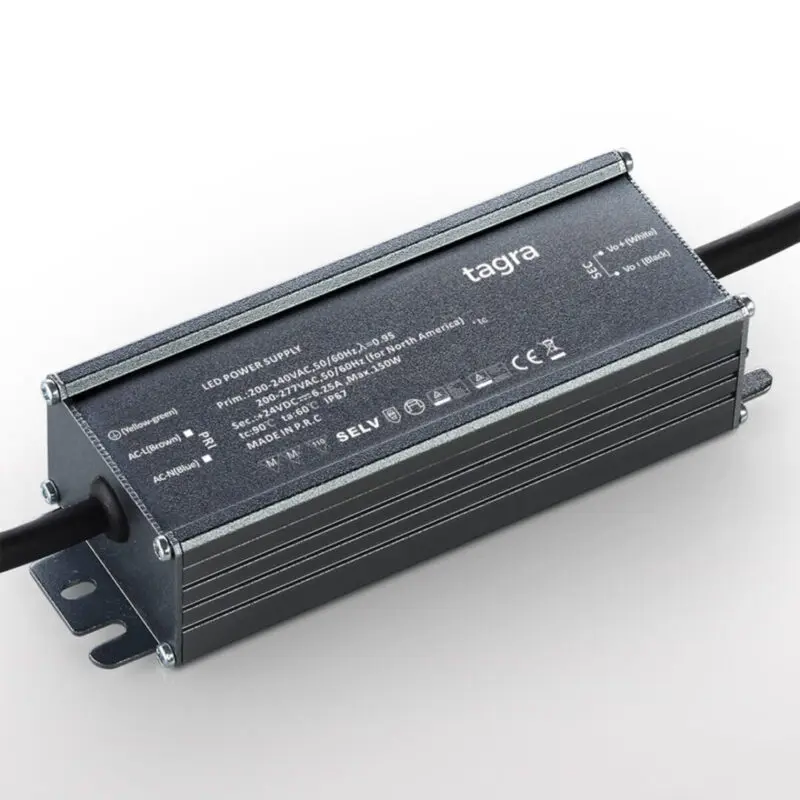

☑️ 24V On/Off Power Supply Driver
☑️ 28 Stainless Steel Mounting Clips

CALL FOR PROJECT DISCOUNTS: We offer volume pricing and FREE lighting design and advice for professional installations. If you need assistance with RGB controllers, DMX integration, or made-to-order lengths, please call our technical team on 0161 737 7333 or email us to discuss your project requirements.
