Ecopac 90W Mains Leading & Trailing Edge Triac Dimmable LED Drivers

£87.00 incl. VAT

Product Documents

Datasheet

ELED-90P-T.pdf

Voltage

Clear

Compare

Add to wishlist

SKU: ELED-90P-T Categories: Constant Voltage Drivers, LED Drivers, Triac Mains Dimmable Drivers Tags: 90W, driver, triac

Description
Additional information

Description

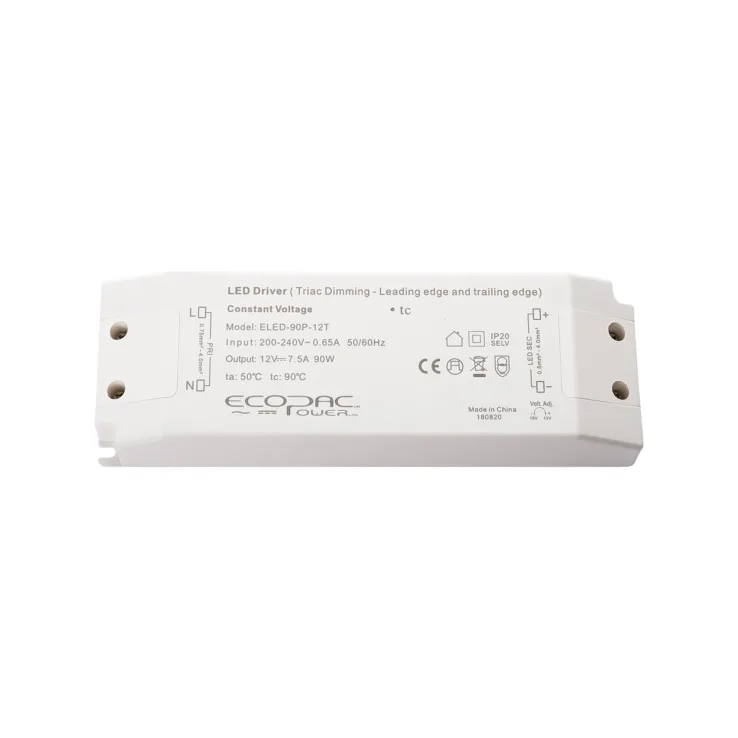

Ecopac ELED-90P T Series

90W Leading & Trailing Edge TRIAC Dimmable Constant Voltage LED Drivers

Features

Constant Voltage Design
Works with leading and trailing edge TRIAC dimmers
PWM Output
Protections: Short circuit/ Over Loading/ Over Current/ Over Temperature
AC input 200-240VAC
Universal AC input/ Full range
IP20 design for indoor installations
Cooling by free air convection
86% efficiency
3 years warranty

Options

ELED-90P-12T
ELED-90P-24T

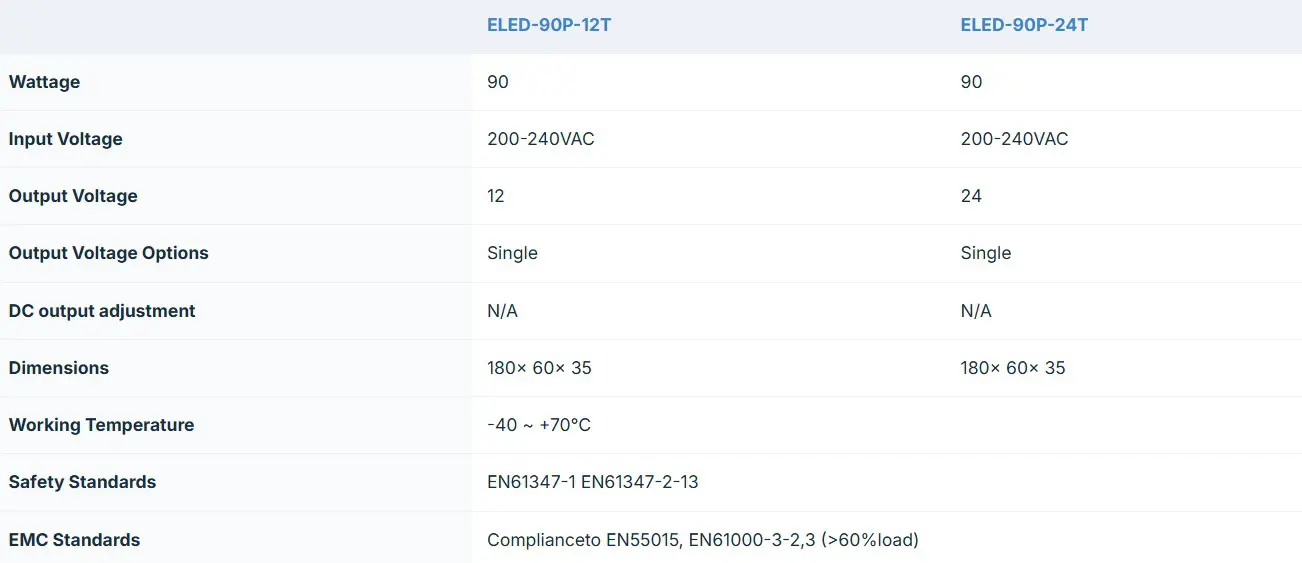

Additional information

Weight	.45 kg
Dimensions	180 × 60 × 35 mm
Dimming	Triac
Wattage	90W
Voltage	12 Volt, 24 Volt
IP Rating	IP20
