RLED Single Channel CV Dimming LED Driver

Description

Wireless Single Channel Constant Voltage Dimming Drivers

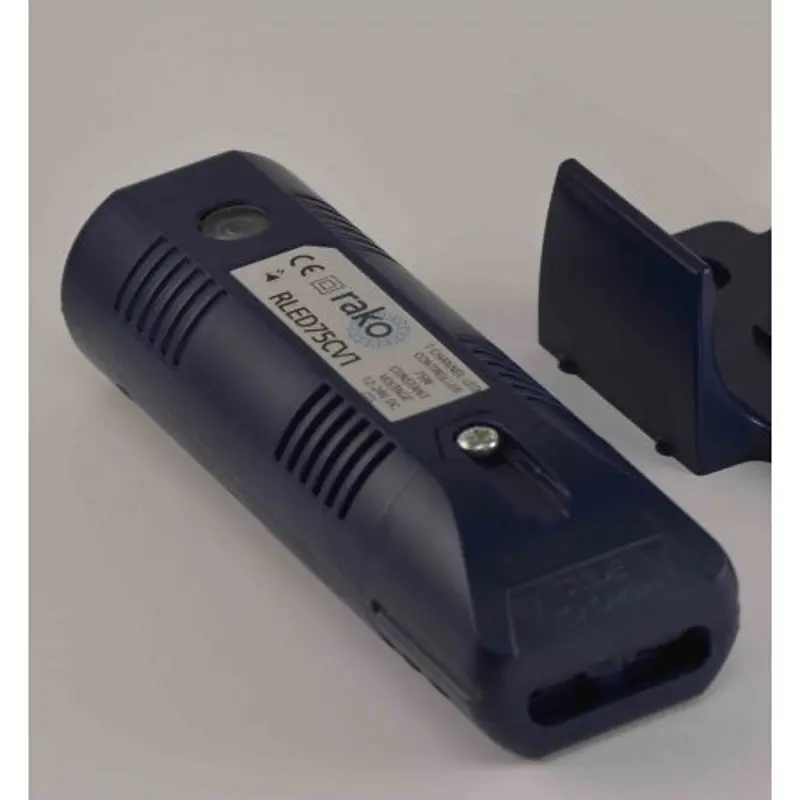

RLED75CV1

75W Single Channel

• In-line RF 75W single channel, constant voltage dimming LED driver
• A compact single channel 75W constant voltage LED dimmer with in-built RF receiver and Rako processor for control of single channel constant voltage LED fittings
• Controlled from any Rako Rakom device, e.g. RCP/RCM wall plates or Bridge interface units
• Designed for use with single channel constant voltage LED fittings and single channel LED tape light
• Maximum wattage of 75w for 12V d.c. fittings or 150w for 24V d.c. fittings. Requires a suitable external d.c. power supply (normally the power supply that would be supplied with the fitting for a non-dimming application).
• Programmed using either an RCM/RCP RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
• Can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system

RLED150CV1

150W Single Channel

• In-line RF 150W single channel, constant voltage dimming LED driver
• A compact single channel 150W constant voltage LED dimmer with in-built RF receiver and Rako processor for control of single channel constant voltage LED fittings
• Controlled from any Rako Rakom device, e.g. RCP/RCM wall plates or Bridge interface units
• Designed for use with single channel constant voltage LED fittings and single channel LED tape light
• Maximum wattage of 150w for 12V d.c. fittings or 300w for 24V d.c. fittings. Requires a suitable external d.c. power supply (normally the power supply that would be supplied with the fitting for a non-dimming application).
• Programmed using either an RCM/RCP RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
• Can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system

For more information on dimming LEDs refer to Rako’s application sheet ‘Controlling LED Lighting With Rako Dimmers and Modules’.
