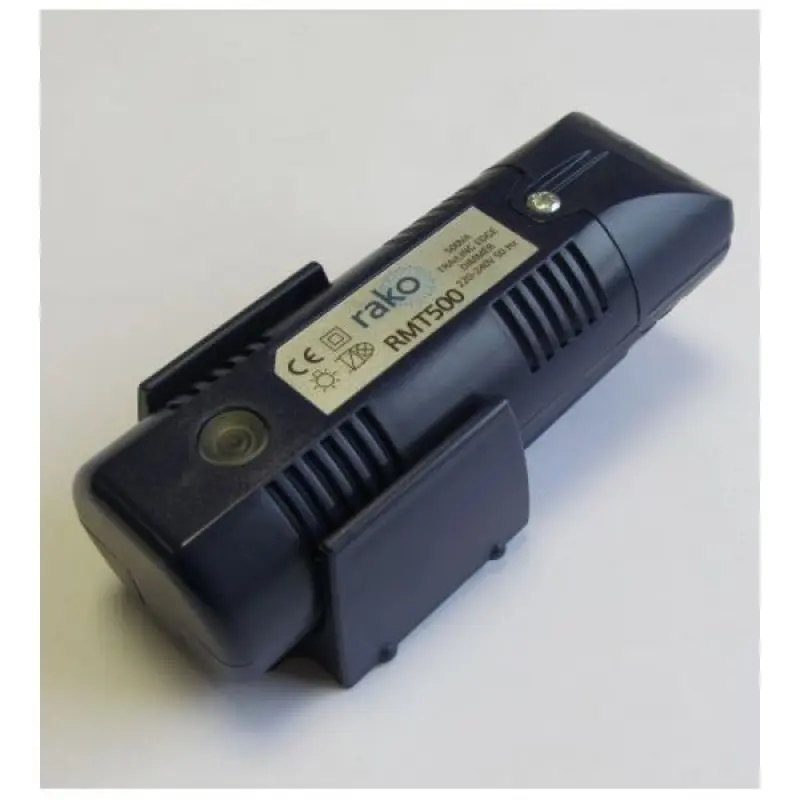

Rako RMT-500 Wireless 500W Trailing-Edge Dimmer
The RMT-500 provides a high-performance wireless trailing-edge dimming solution, specifically optimized for modern Mains LED lamps and electronic low-voltage transformers. Designed for ultimate installation flexibility, this module serves as a perfect retrofit solution when installed within a ceiling void or as a centralized system using the included mounting bracket.
We engineered the RMT-500 to handle digital loads with precision, offering sophisticated control through the Rako wireless ecosystem. The unit features integrated short-circuit protection and thermal shutdown for maximum safety, along with non-volatile memory for up to 16 custom scenes. You can seamlessly control this unit from any Rako transmitter, including RCM, RNC, and the elegant EOS/MOD keypads.
Key Features
- ✅ LED Optimized: Specifically designed for trailing-edge dimmable Mains LED lamps and electronic transformers.
- ✅ Flexible Installation: Compact design fits through standard downlight apertures or mounts centrally via the supplied bracket.
- ✅ Advanced Protection: Features built-in short-circuit protection and thermal shutdown to safeguard your lighting circuits.
- ✅ Precision Dimming: Fully customizable fade rates and dimming profiles via Rasoft programming software for flicker-free performance.
- ✅ System Feedback: Integrated LED diagnostic light provides instant status updates during setup and commissioning.
- ✅ Local Override: Equipped with a manual test and programming button for immediate local operation.
Technical Specifications
| Specification | Details |
|---|---|
| Max Load (Mains LED) | 250W |
| Max Load (Electronic Transformer) | 450W |
| Load Range | Minimum 1W |
| Input Supply | 230V AC 50Hz |
| Dimensions | 138mm x 46mm x 40mm |
| Communication | Rakom RF (433.9MHz) |
Installation & Safety Note
⚠️ Load Compatibility: The RMT-500 uses trailing-edge dimming technology. While it is perfect for most modern LEDs and electronic transformers, it is not suitable for inductive loads such as wire-wound (magnetic) transformers. For inductive or leading-edge only loads, please refer to our RML range.
Professional Support
We specialize in bespoke Rako wireless infrastructure and modern LED dimming topography. If you need technical assistance verifying your LED lamp compatibility, advice on signal range, or a FREE full lighting design, please call our specialist team on 0161 737 7333 or send us an email. Our team will help you achieve a perfectly integrated and reliable wireless control system.
