Description

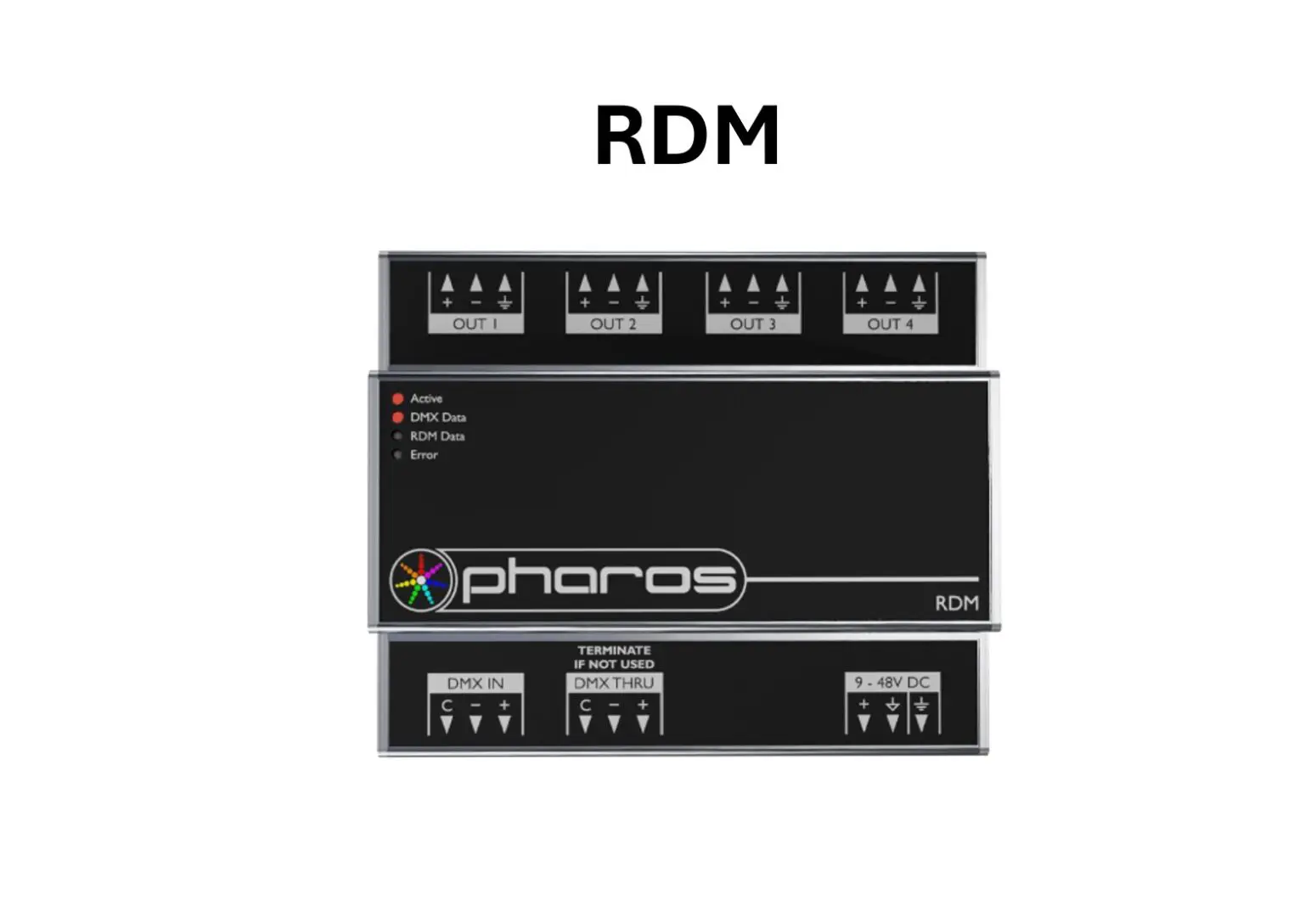

Pharos Designer RDM (Remote Device Management) DMX Splitter

The Pharos Designer RDM is a professional 4-port DMX512 splitter and repeater designed to distribute DMX control signals reliably to luminaires and other lighting devices.

Fully compatible with the RDM (Remote Device Management) standard, this unit allows lighting systems to communicate with fixtures for monitoring, addressing, and configuration while maintaining stable DMX signal distribution.

Designed for permanent architectural installations, the splitter features a rugged DIN-rail mounted enclosure, ensuring reliable 24/7 operation in lighting control cabinets.

Key Features

✅ 4-port DMX512 splitter / repeater
✅ RDM compatible for advanced device management
✅ Opto-isolated DMX input and thru connection
✅ DMX pass-through for daisy-chaining controllers
✅ Compact DIN-rail mounting design
✅ Designed for continuous 24/7 operation
🛡 5-Year manufacturer warranty

DMX Signal Distribution

The Pharos Designer RDM splitter enables reliable DMX distribution across multiple lighting devices and zones.

Key capabilities include:

• Splitting a single DMX signal into four independent outputs

• Maintaining signal integrity across large installations

• Supporting RDM communication for intelligent device control

• Allowing daisy-chaining through the DMX input/thru connection

This makes the device ideal for complex architectural lighting systems and LED façade projects.

Certifications

The unit meets international compliance standards:

• CE compliant

• UKCA compliant

• ETL / cETL listed

Power Requirements

• Input Voltage: 9–48V DC

• Typical Power Consumption: 4W

Connection uses installer-friendly 5.08mm plug-in rising clamp connectors, simplifying installation and maintenance.

Environmental Specifications

Operating Temperature:
0°C – 50°C (32°F – 122°F)

Humidity:
10–50% relative humidity (non-condensing)

Ingress Protection:
IP40

Physical Specifications

Enclosure:
DIN-rail mounted enclosure (DIN43880 / EN60715 – 35mm rail)

Dimensions:
10.8 × 9 × 5.8 cm
(4.2 × 3.5 × 2.3 in)

Weight:
0.5 kg (1.1 lbs)

Shipping Information

Package dimensions:

• 20 × 15 × 12 cm

• 8 × 6 × 5 in

Shipping weight:

• 0.7 kg (1.6 lbs)

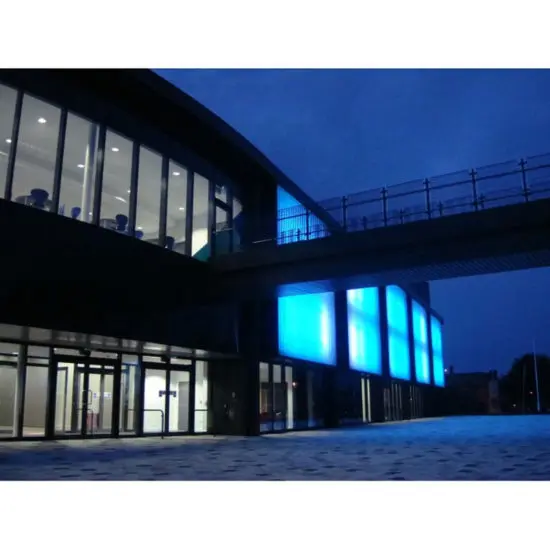

Applications

The Pharos RDM DMX Splitter is suitable for:

🏢 Architectural lighting control systems
🏨 Hotels and hospitality lighting
🏙️ LED façade lighting installations
🎭 Entertainment and stage lighting
🛍️ Retail lighting displays

It integrates seamlessly with lighting control systems from Pharos Controls including the Pharos Designer Controller range.

Need Help with System Design?

We supply a full range of Pharos lighting control products, including controllers, button panels, DMX drivers, and network nodes.

📞 Contact us for expert advice, product selection, and project quotations.
