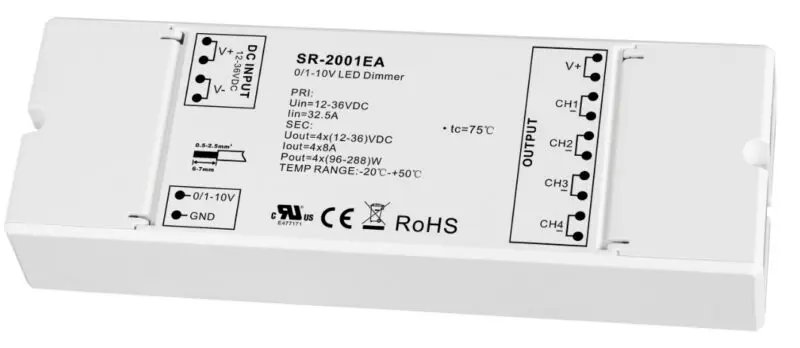

SR-2001EA Sunricher 0-10Volt Decoder RGBW Constant Voltage

Call for project quotations and trade discounts

The SR-2001EA Sunricher 0-10Volt Decoder is a professional RGBW constant voltage controller for ultra-smooth dimming with zero flicker. Supporting 12–36VDC, this 4-channel output decoder is perfect for residential, commercial, and architectural LED projects.

Key Features:

• ✓ Voltage: 12 – 36VDC
• ✓ Channels: 1CH input / 4CH output
• ✓ Power: 8A – 12V@384W, 24V@768W, 36V@1152W
• ✓ Dimming: Smooth 0–10V dimming to 0.1% with no flicker or buzzing
• ✓ Control Methods: 1–10V potentiometer, push switch, or 1–10V analogue
• ✓ Output Type: PWM for precise RGBW control

Technical Specifications:

• Input Voltage: 12–36VDC
• Input Channels: 1CH 1–10V
• Output Channels: 4CH PWM
• Max Current: 8A total
• Power Output: 12V@384W, 24V@768W, 36V@1152W

Applications:

• RGBW LED lighting projects
• Architectural and commercial lighting systems
• Home and multi-room LED installations

Why Choose the SR-2001EA Sunricher Decoder?

• ✓ Ultra-smooth dimming down to 0.1% with no flicker
• ✓ Flexible 4-channel constant voltage output
• ✓ Compatible with multiple control methods
• ✓ Reliable, durable design for professional LED installations
• ✓ Ideal for precise RGBW colour control and effects

Please note: Ensure input voltage matches the 12–36VDC range for safe and optimal operation.
