Description

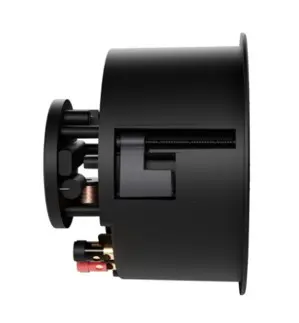

Sonance Visual Experience VX42R 4.5″ Pivoting Two-Way Round Speaker (Pair)
The Sonance Visual Experience VX42R is a premium architectural in-ceiling speaker designed to deliver exceptional sound quality, wide coverage, and discreet aesthetics for residential and commercial environments. Supplied as a pair, the VX42R combines Sonance’s latest innovations in driver, tweeter, and crossover technology to provide a crisp, balanced, and immersive listening experience.
Featuring a fully pivotable coincident woofer and tweeter assembly, the VX42R allows precise sound direction for optimal performance in a variety of room layouts. The speaker incorporates a 0.75″ cloth dome tweeter with Ferrofluid cooling and an acoustic back chamber, paired with a 4.5″ textured polypropylene woofer with a durable rubber surround for smooth, natural audio reproduction.
The VX42R utilises Sonance’s advanced Sinusoidal Textured Waveguide technology to maximise dispersion and provide consistent sound coverage throughout the listening space. Combined with the innovative Sonance CDX crossover, derived from the award-winning Invisible Series, these speakers deliver remarkable detail, warmth, and musical accuracy at any listening level.
Designed for installation flexibility, the Visual Experience Series features Sonance’s Flex Frame Mounting System, allowing installers to complete projects in one or two stages for maximum efficiency on both residential and large-scale commercial installations.
The Visual Experience Series offers multiple grille options, including the supplied Micro Trim grille, optional trimless grilles, and square grille alternatives, ensuring a seamless finish within any interior design scheme.
Call for project quotations and trade discounts.
Key Features
✅ Supplied as a pair
✅ Fully pivotable coincident woofer and tweeter assembly
✅ Sonance Flex Frame one or two-stage mounting system
✅ 0.75″ cloth dome tweeter with Ferrofluid cooling and acoustic back chamber
✅ 4.5″ textured polypropylene woofer with durable rubber surround
✅ Sonance CDX crossover technology for enhanced audio performance
✅ Sonance Sinusoidal Textured Waveguide for maximum sound dispersion
✅ Engineered using advanced simulation and machine learning technologies
✅ Includes brilliant white round Micro Trim grille
✅ Multiple grille options available for custom installations
✅ Designed for residential, commercial, and hospitality applications
Technical Specifications
☑️ Frequency Response: 60Hz – 20kHz (±3dB)
☑️ Tweeter: 19mm (0.75″) Cloth Dome, Ferrofluid Cooled with Acoustic Back Chamber
☑️ Woofer: 114mm (4.5″) Textured Polypropylene Cone with Rubber Surround
☑️ Dispersion Technology: Sonance Sinusoidal Textured Waveguide
☑️ Speaker Pivot: Fully Pivotable Coincident Woofer and Tweeter
☑️ Impedance: 8Ω Nominal / 6Ω Minimum
☑️ Recommended Power: 5W Minimum / 70W Maximum
☑️ Sensitivity: 89dB SPL (2.83V / 1m)

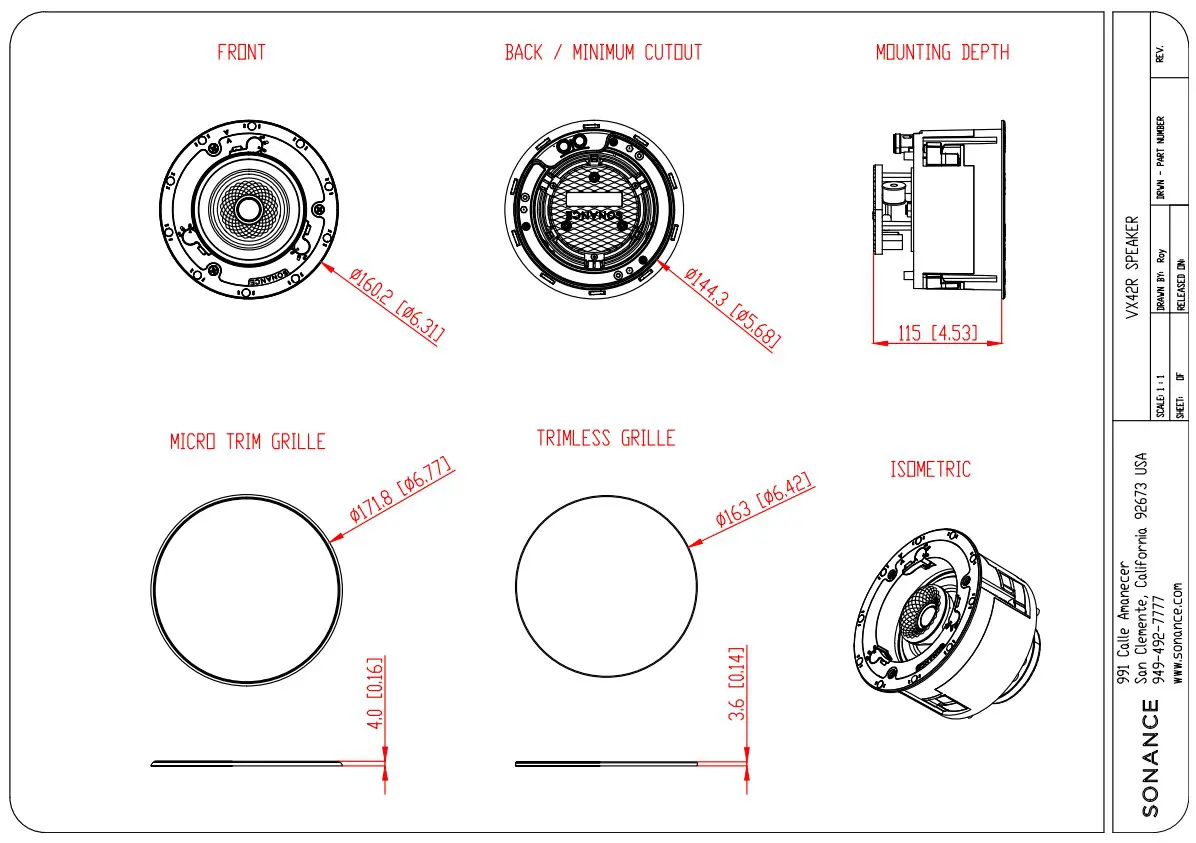

☑️ Mounting Technology: Flex Frame 1 or 2 Stage with 3 x RotoLock® Clamps
☑️ Grille Construction: Perforated Steel
☑️ Standard Grille: Round Micro Trim Grille – 171.8mm (6.77″)
☑️ Cut-Out Dimensions: 149mm (5.875″)
☑️ Speaker Mounting Depth: 115mm (4.53″)
☑️ Mounting Depth with Retrofit Enclosure: 146.1mm (5.75″)
☑️ Quantity: Pair
Control System Compatibility
☑️ Compatible with residential multi-room audio systems
☑️ Ideal for distributed audio and home cinema applications
☑️ Suitable for integration with leading audio amplification platforms
☑️ Compatible with Sonance architectural audio installations
☑️ Designed for professional residential and commercial AV projects
Applications
🎵 Multi-room audio systems
🏡 Residential living spaces, kitchens, bedrooms, and hallways
🎬 Media rooms and home cinema installations
🏛️ Hospitality environments including hotels, bars, and restaurants
🛍️ Commercial offices, retail environments, and presentation spaces
Why Choose the Sonance VX42R?
🚀 Premium architectural speaker delivering exceptional clarity and coverage
🎯 Fully pivotable driver assembly for accurate sound positioning
🔊 Advanced waveguide technology provides consistent room-wide audio performance
🎼 Sonance CDX crossover ensures detailed, natural sound reproduction
🛠️ Flexible installation with the innovative Flex Frame mounting system
🎨 Multiple grille options allow seamless architectural integration
Additional Information
🌟 FREE audio visual system design and technical support available
🛠️ Optional round trimless, square micro trim, and square trimless grilles available separately
🏆 Developed from over four decades of Sonance loudspeaker innovation
📦 Supplied as a pair
🚚 FREE delivery on orders over £100
📞 Call for project quotations, trade discounts, and technical assistance
