Description

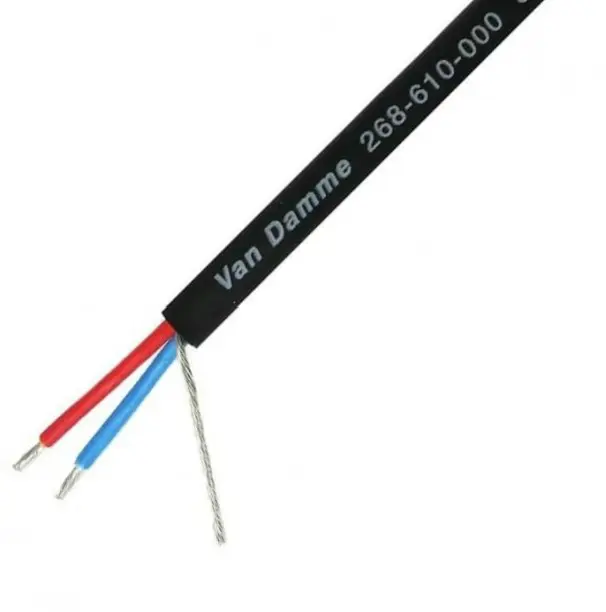

Van Damme Smart Control DMX 1 Pair Control Cable – Black 100m Reel
The Van Damme Smart Control DMX 1 Pair Cable is a professional-grade control cable designed for reliable transmission of the DMX512 lighting control protocol in live production, stage, and installation environments.
Constructed with precision foil screening and high-quality oxygen-free copper conductors, the cable ensures accurate data transfer and minimal signal loss across long DMX lighting control runs.
Foamed polyethylene insulation combined with a flexible yet durable PVC/Neoprene composite jacket provides excellent mechanical protection while maintaining the flexibility required for touring and temporary stage installations.
Supplied on a 100m reel, this cable is ideal for professional lighting systems, stage productions, theatres, and permanent lighting control installations.
Professional DMX512 Lighting Control Cable
Van Damme Smart Control DMX cables are engineered specifically for the transmission of DMX512 lighting control signals. The robust construction ensures dependable performance in both touring and permanent installation environments.
The combination of controlled impedance, foil shielding, and precision conductor design allows the cable to maintain stable data communication across extended distances commonly required in large lighting rigs and stage productions.
Mechanical Specifications
- Conductor: 16 × 0.20mm Tinned Oxygen-Free Copper
- Conductor Size: 0.52mm² (Approx. AWG 20/16)
- Insulation: Foamed Polyethylene
- Screen: Aluminium / Polyester Foil (≥125% Coverage)
- Jacket Material: Flexible PVC / Neoprene Composite
- Overall Diameter: 6.00 ± 0.30 mm (1 Pair)
- Bend Radius: 10 × Overall Diameter
- Operating Temperature: −20°C to +70°C
- Pair Colours: Red / Blue
- Sales Format: 100m Reel
- Manufacturer Code: 268-610-000-100
Electrical Specifications
☑️ Conductor Resistance: < 41 Ohm/km
☑️ Insulation Resistance: > 20 MOhm/km
☑️ Capacitance (Core to Core): 50 pF/m
☑️ Capacitance (Core to Screen): 105 pF/m
☑️ Characteristic Impedance: 85 Ohms at 1 MHz
Key Features
✅ Designed for DMX512 lighting control protocol
✅ Precision foil shielding for stable signal transmission
✅ Foamed polyethylene insulation for accurate data transfer
✅ Flexible yet robust PVC/Neoprene jacket for touring use
✅ Suitable for long DMX cable runs
✅ Professional-grade construction for stage and installation environments
Application Notes
💡 22AWG conductors optimise digital control signal transmission
🎭 Flexible jacket allows easy routing through lighting rigs and truss systems
🎪 Designed for touring, stage production, and theatre lighting systems
🎚️ Suitable for permanent lighting control installations
Applications
💡 DMX512 lighting control systems
🎭 Theatre and stage lighting installations
🎪 Touring and live production lighting rigs
🏟️ Event production and entertainment venues
🎛️ Architectural and stage lighting control networks
Why Choose Van Damme Smart Control DMX Cable?
🚀 Designed specifically for professional lighting control systems
🛡️ Robust touring-grade jacket for demanding environments
⚡ Stable impedance for reliable DMX signal transmission
🎛️ Flexible design for stage and installation use
🎭 Trusted by lighting professionals worldwide
Additional Information
🌟 Professional DMX control cable
🛠️ Ideal for lighting technicians and AV installers
📦 Supplied on convenient 100m reel for installations
