Description

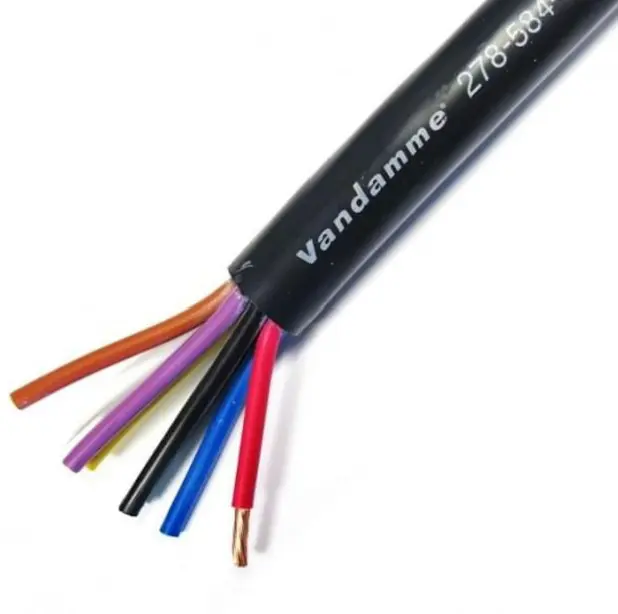

Van Damme Ecoflex Install Grade Multicore Speaker Cable – LSZH
Van Damme Ecoflex Install Grade Multicore Speaker Cable LSZH is a professional installation cable designed for environments where Low Smoke Zero Halogen materials are required. The cable features LSZH insulation and jacket construction, making it ideal for installations in public buildings, residential developments, and marine environments where safety and compliance are critical.
Manufactured using ultra-pure oxygen-free copper conductors, the Ecoflex range provides excellent audio signal transmission and long-term reliability for professional speaker installations and distributed audio systems.
The robust LSZH thermoplastic construction reduces smoke density and eliminates halogen gas emissions during combustion, helping protect people and sensitive electronic equipment in enclosed spaces.
Application Notes
✅ Ultra-pure oxygen-free copper conductors for outstanding sonic integrity
✅ LSZH insulation and jacket for reduced smoke and toxic gas emissions
✅ Designed for permanent installation in safety-critical environments
✅ Suitable for public buildings, residential developments, and marine installations
General Specifications
- Conductor: Bare Ultra-Pure Oxygen-Free Copper
- Insulation: SHF1 LSZH Thermoplastic Polymer
- Jacket: SHF1 LSZH Thermoplastic Polymer
- Jacket Colour: Anthracite Grey (RAL 7016)
- Working Voltage: 300 / 500 V
- Bend Radius: 10 × Overall Cable Diameter
- Operating Temperature: −35°C to +70°C
Cable Colour Codes
🔴 Conductor 1 – Red
🔵 Conductor 2 – Blue
🟢 Conductor 3 – Green
🟡 Conductor 4 – Yellow
⚪ Conductor 5 – White
⚫ Conductor 6 – Black
🟤 Conductor 7 – Brown
🟣 Conductor 8 – Violet
Standards & Compliance
☑️ RoHS 2011/65/EU – Restriction of Hazardous Substances
☑️ REACH – Registration, Evaluation, Authorisation and Restriction of Chemicals
☑️ IEC 60092-360:2014 – Electrical Installations in Ships
☑️ IEC 60332-1 – Fire Retardancy of a Single Cable
☑️ IEC 60332-3-24 – Fire Retardancy of Bunched Cables
☑️ IEC 60754-1 – Amount of Halogen Gas Emissions
☑️ IEC 60754-2 – Degree of Acidity of Released Gases
☑️ IEC 61034-2 – Measurement of Smoke Density
Applications
🏢 Public buildings and government premises
🎓 Schools, colleges, and universities
🏠 New-build residential developments
🚢 Marine audio installations
🎶 Professional multi-channel speaker systems
Why Choose Van Damme Ecoflex LSZH Speaker Cable?
🚀 Designed for safety-critical installations
🔊 Ultra-pure copper provides excellent audio performance
🛡️ LSZH materials minimise smoke and toxic emissions
🏗️ Fully compliant with international safety standards
⚙️ Reliable performance for permanent AV installations
Additional Information
🌟 Professional installation-grade speaker cable
🛠️ Trusted by AV integrators and electrical contractors
📦 Available in multiple multicore configurations
