Description

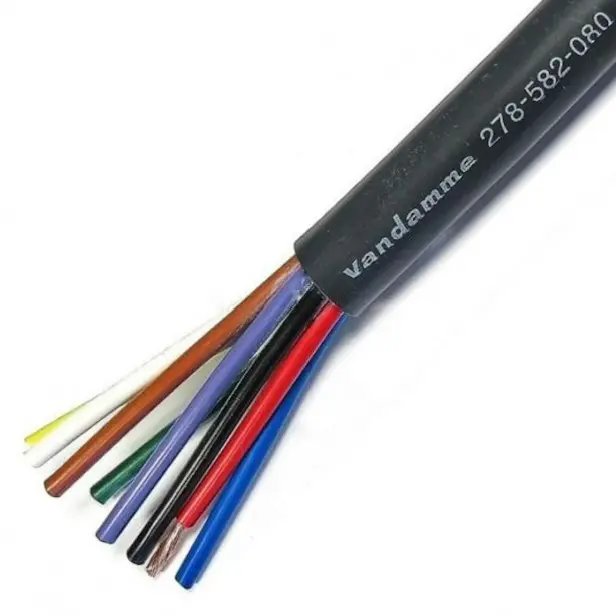

Van Damme Ecoflex Install Grade Multicore Speaker Cable – LSZH
The Van Damme Ecoflex Install Grade Multicore Speaker Cable LSZH range is specifically designed for professional audio installations where enhanced fire safety and environmental protection are required.
Featuring Low Smoke Zero Halogen (LSZH) insulation and jacket materials, this cable range is ideal for installations in public buildings and safety-critical environments where reduced smoke and toxic emissions are essential.
Manufactured with ultra-pure oxygen-free copper conductors, the Ecoflex range delivers excellent signal integrity and reliable audio performance across multi-channel speaker systems.
The robust LSZH thermoplastic construction ensures durability, flexibility, and compliance with modern building regulations, making it suitable for fixed installations in public infrastructure, residential developments, and marine environments.
Professional LSZH Installation Speaker Cable
Van Damme Ecoflex Install Grade Multicore Speaker Cable is engineered for fixed installation environments where safety, performance, and compliance are essential. The LSZH construction significantly reduces smoke density and eliminates halogen gas emissions during combustion, helping protect people and sensitive equipment in enclosed environments.
The cable is commonly specified for government buildings, educational facilities, commercial premises, marine installations, and modern residential developments where LSZH materials are mandatory.
General Specifications
- Conductor Material: Bare Ultra-Pure Oxygen-Free Copper
- Insulation: SHF1 LSZH Thermoplastic Polymer
- Jacket Material: SHF1 LSZH Thermoplastic Polymer
- Jacket Colour: Anthracite Grey (RAL 7016)
- Working Voltage: 300 / 500 V
- Bend Radius: 10 × Overall Cable Diameter
- Operating Temperature: -35°C to +70°C
Key Features
✅ LSZH insulation and jacket for enhanced fire safety
✅ Ultra-pure oxygen-free copper conductors for superior audio performance
✅ Designed for fixed installation environments
✅ Low smoke and zero halogen emissions
✅ Flexible yet durable thermoplastic construction
✅ Ideal for safety-critical public buildings
✅ Suitable for marine and residential installations
Standards & Compliance
☑️ RoHS 2011/65/EU – Restriction of Hazardous Substances
☑️ REACH – Registration, Evaluation, Authorisation and Restriction of Chemicals
☑️ IEC 60092-360:2014 – Electrical Installations in Ships
☑️ IEC 60332-1 – Fire Retardancy of a Single Cable
☑️ IEC 60332-3-24 – Fire Retardancy of Bunched Cables
☑️ IEC 60754-1 – Halogen Gas Emission Measurement
☑️ IEC 60754-2 – Acidity of Released Gases
☑️ IEC 61034-2 – Smoke Density Measurement
Conductor Colour Identification
🔴 Conductor 1: Red
🔵 Conductor 2: Blue
🟢 Conductor 3: Green
🟡 Conductor 4: Yellow
⚪ Conductor 5: White
⚫ Conductor 6: Black
🟤 Conductor 7: Brown
🟣 Conductor 8: Violet
Applications
🏢 Government and public sector buildings
🎓 Schools, colleges, and universities
🏠 Modern residential developments
🚢 Marine audio installations
🎶 Multi-channel professional speaker systems
Why Choose Van Damme Ecoflex LSZH Speaker Cable?
🚀 Designed for safety-critical installations
🔊 Ultra-pure copper ensures excellent sonic performance
🛡️ LSZH construction minimises smoke and toxic gas emissions
🏗️ Fully compliant with international safety standards
⚙️ Ideal for permanent professional audio installations
Additional Information
🌟 Professional installation-grade speaker cable
🛠️ Trusted by AV integrators and electrical contractors
📦 Available in multiple multicore configurations
