Description

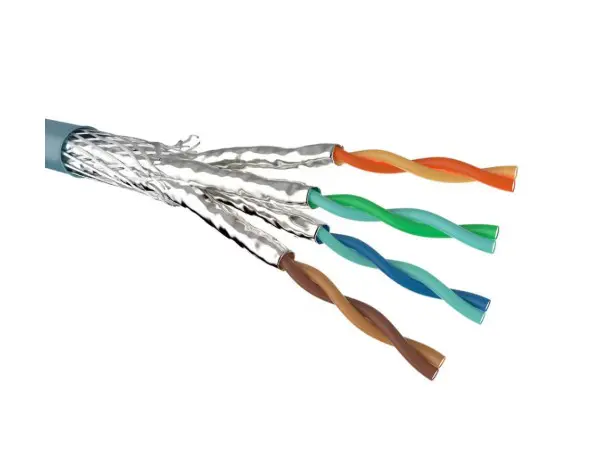

The HNCPROPLUS+ CAT7A S/FTP cable from Structured Cable Products (SCP) is a premium high-performance networking solution engineered for advanced commercial and residential installations.

Designed as the Crestron DM equivalent, this CAT7A cable is HDBaseT certified and optimised with four balanced twisted pairs using 23AWG PE foam insulated solid bare copper conductors.

Each pair is individually shielded with aluminium foil to eliminate crosstalk, while an overall tinned copper braid provides exceptional EMI and interference protection. Supporting frequencies up to 1200MHz, this cable delivers superior signal integrity for 10G and professional AV transmission.

Low Smoke Zero Halogen (LSZH) construction ensures enhanced fire safety compliance, and CPR Dca-s1,d1,a1 rating makes it suitable for demanding indoor installations. Supplied in 305m (1000ft) lengths, this cable is ideal for structured cabling, HDBaseT distribution, and high-performance data infrastructure.

Smart Control Recommendation

Fully compatible with HDBaseT systems and Crestron DigitalMedia™ infrastructure, delivering high-bandwidth performance for professional AV and enterprise networking applications.

Customisation & Build Options

• Conductor: 23AWG Solid Bare Copper

• Insulation: Skin Foam Skin PE

• Configuration: 4 Balanced Twisted Pairs

• Shielding: Aluminium Foil per Pair + Overall Tinned Copper Braid (S/FTP)

• Frequency Rating: 1200MHz

• Jacket: LSZH

• CPR Rating: Dca-s1,d1,a1

• Colour: Ice Blue

• Length: 305m / 1000ft

Key Features

✅ CAT7A HDBaseT Certified
✅ 1200MHz high-bandwidth performance
✅ 23AWG PE foam insulated solid copper conductors
✅ Aluminium foil shield on every pair
✅ Overall tinned copper braid shield
✅ Crestron DM equivalent performance
✅ LSZH jacket for enhanced fire safety
✅ CPR Dca-s1,d1,a1 rated
✅ Exceptional EMI and crosstalk protection
✅ Supplied in 305m (1000ft) reel

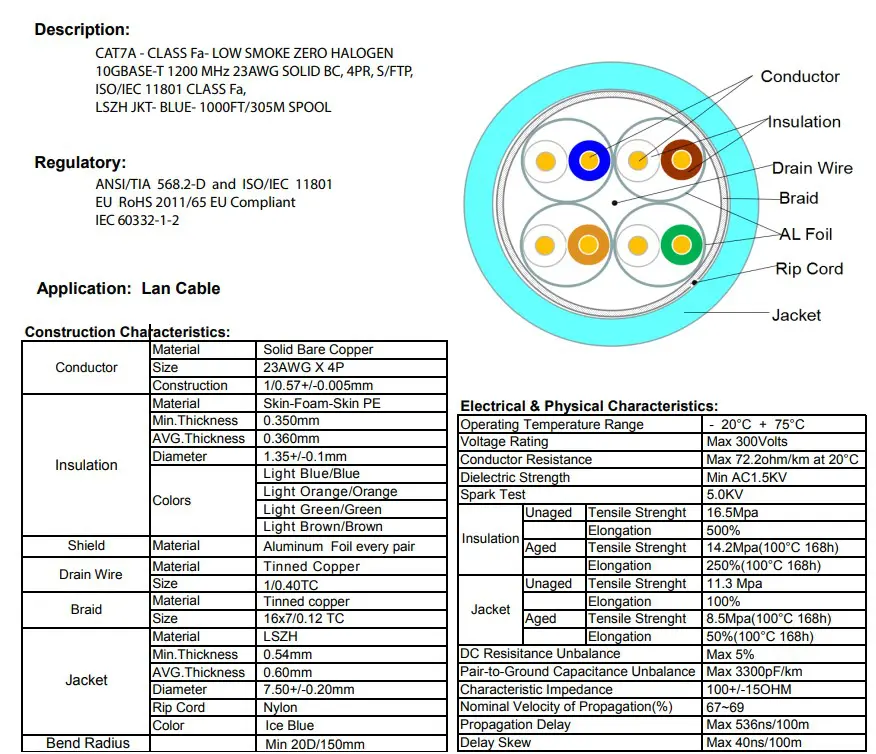

Technical Specifications

☑️ Cable Type: CAT7A S/FTP LSZH
☑️ Conductor Size: 23AWG x 4 Pair
☑️ Conductor Material: Solid Bare Copper
☑️ Construction: 1/0.57mm (±0.005mm)
☑️ Frequency Rating: 1200MHz
☑️ Function: Data
☑️ Rating: 75°C 30V
☑️ Bend Radius: Min 20D / 150mm
☑️ Jacket Material: LSZH
☑️ Rip Cord: Nylon
☑️ Diameter: 7.30 ±0.20mm
☑️ Length: 305m / 1000ft
☑️ Colour: Ice Blue
☑️ Product Code: SCP-CAT7A-LSZH-DCA-BL

Control System Compatibility

☑️ HDBaseT AV Distribution
☑️ Crestron DigitalMedia™ Systems
☑️ 10 Gigabit & High-Speed Ethernet
☑️ Enterprise Structured Cabling
☑️ Commercial & Residential Installations

Applications

🏢 Commercial networking infrastructure
🏠 High-end residential installations
🎥 Professional AV & HDBaseT systems
📡 Data centres & telecom rooms
🏨 Hospitality & enterprise environments

Why Choose SCP HNCPROPLUS+ CAT7A?

🚀 Ultra-high 1200MHz bandwidth
🛡️ Individual pair shielding + overall braid for maximum protection
🎛️ Crestron DM equivalent for professional AV systems
📏 Solid copper conductors for stable 10G transmission
🔥 LSZH & CPR Dca compliance for safety-critical environments

Additional Information

🌟 Designed for high-performance data and AV transmission
🛠️ Professional-grade installation cable
🚚 Bulk supply available
