SCP 14/4 Direct Burial Non Gel Speaker Cable 152M
£966.00 incl. VAT
3 in stock (can be backordered)
SCP 14/4 Direct Burial Non Gel Speaker Cable 152MSCP 14/4 Direct Burial Non-Gel Speaker Cable – 152m
14 AWG 4-Core Direct Burial Speaker Cable with Water Blocking Tape
The SCP 14/4 Direct Burial Non-Gel Speaker Cable is a professional-grade 14 AWG 4-core outdoor speaker cable designed for high-performance landscape audio, outdoor speaker systems and demanding direct burial installations.
Manufactured by Structured Cable Products (SCP), this cable provides an alternative to traditional gel-filled direct burial speaker cable. Instead of gel, it uses a water blocking tape layer beneath the durable LLDPE outer jacket, providing effective protection against water permeability while making the cable easier and cleaner to prepare during installation.
The cable features 105-strand oxygen-free bare copper conductors, a balanced twisted-pair construction and a flexible design engineered to maintain its strength and flexibility in demanding outdoor environments.
With a 152m cable length, the SCP 14/4-DB-500 is well suited to larger residential, commercial and professional landscape audio and outdoor speaker installations.
Call for Project Quotations & Trade Discounts
Key Features
- 14 AWG 4-core direct burial speaker cable
- 152m cable length
- Non-gel direct burial construction
- Water blocking tape layer for moisture protection
- Easy-to-cut water blocking tape for simpler installation
- Durable LLDPE direct burial jacket
- High-strand-count oxygen-free bare copper conductors
- 105 strands per conductor
- Balanced twisted-pair construction
- Excellent flexibility for easier installation
- Designed for high-performance landscape and outdoor speaker systems
- Excellent resistance to water permeability and environmental conditions
- Designed for long-term outdoor performance
- Suitable for harsh temperature environments
- Black outer jacket
- Nylon rip cord
Non-Gel Direct Burial Speaker Cable
The SCP 14/4-DB-500 is specifically designed for applications where a gel-filled speaker cable is not suitable or preferred.
Instead of using a flooded gel construction, this cable incorporates a water blocking tape layer beneath the LLDPE jacket. The water blocking tape provides protection against moisture while offering the practical advantage of a non-gel cable that is easier and cleaner to cut and terminate.
This makes the cable an excellent choice for installers looking for a professional direct burial speaker cable without gel filling.
Water Blocking Tape Construction
The water blocking tape provides an additional layer of protection against water permeability. It is designed to help prevent moisture from travelling along the cable while maintaining the flexibility required for outdoor installation.
The tape is also easy to cut, helping installers prepare cable ends efficiently during termination.
Combined with the LLDPE outer jacket, the water blocking layer makes the SCP 14/4-DB-500 suitable for demanding underground and outdoor speaker applications.
105-Strand Oxygen-Free Copper Conductors
Each conductor uses 105 strands of 0.16mm oxygen-free bare copper, providing excellent flexibility and reliable electrical performance.
The high strand count helps the cable remain flexible when routing through landscaping, around buildings or through other installation areas where tight bends and changes in direction may be required.
The use of oxygen-free copper conductors also provides a high-quality solution for professional speaker systems where consistent electrical performance is important.
Balanced Twisted-Pair Construction
The SCP 14/4-DB-500 uses a balanced twisted-pair construction, helping provide a reliable cable configuration for professional speaker installations.
The 4-core design offers additional flexibility when designing and wiring multi-speaker or more complex outdoor audio systems.
Durable LLDPE Direct Burial Jacket
The outer jacket is manufactured from LLDPE (Linear Low-Density Polyethylene) and is designed specifically for demanding outdoor and direct burial applications.
The durable black jacket provides protection against environmental conditions while allowing the cable to retain its flexibility and strength.
Outdoor and Landscape Speaker Applications
The SCP 14/4-DB-500 is suitable for a wide range of outdoor audio installations, including:
- High-performance landscape speaker systems
- Garden speaker installations
- Outdoor speaker systems
- Direct burial audio installations
- Residential landscape audio
- Commercial outdoor audio
- Multi-zone speaker systems
- Professional AV installations
- Custom installation projects
- Outdoor entertainment areas

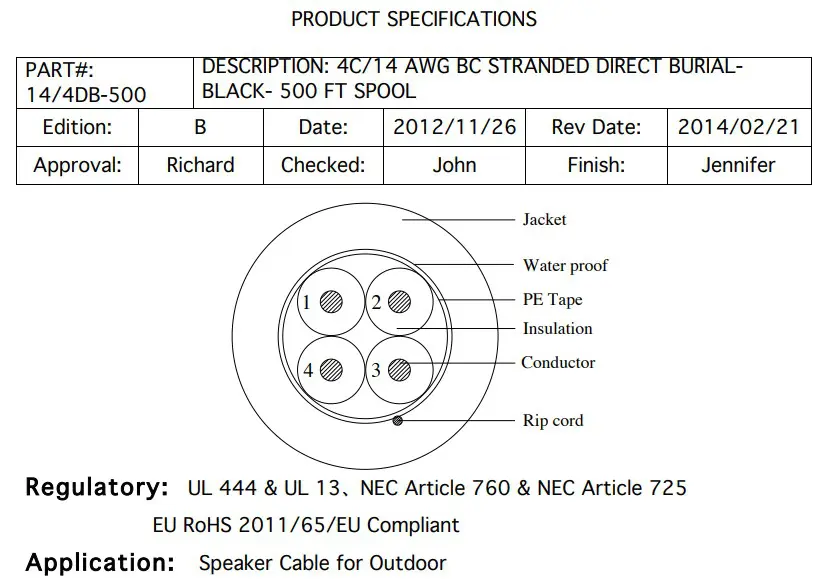

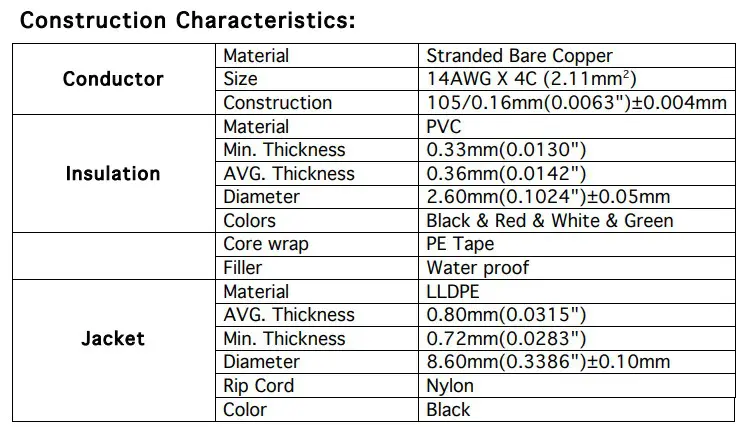

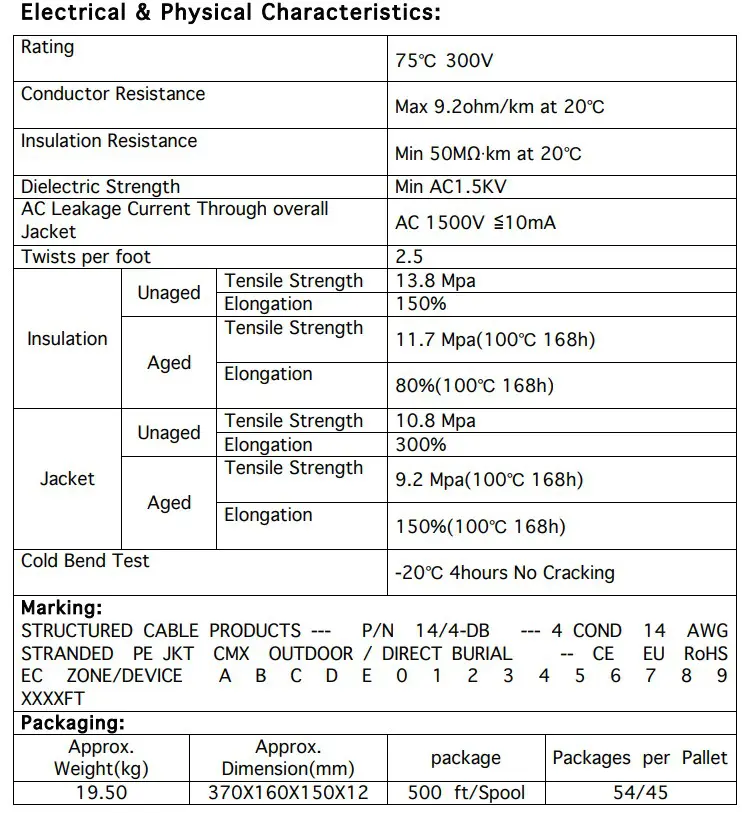

Technical Specifications
| Specification | Details |
|---|---|
| Product | SCP 14/4-DB-500 |
| SKU | SCP-14-4-DB-500 |
| MPN | 14/4DB-500 |
| Cable Type | Direct Burial Non-Gel Speaker Cable |
| Function | Speaker |
| Conductor Material | Stranded bare copper |
| Conductor Size | 14 AWG × 4C |
| Conductor Construction | 105/0.16mm ±0.004mm |
| Conductor Type | Oxygen-free copper |
| Insulation Material | PVC |
| Water Protection | Water blocking tape |
| Jacket Material | LLDPE |
| Jacket Colour | Black |
| Rip Cord | Nylon |
| Overall Diameter | 8.60mm ±0.10mm |
| Minimum Bend Radius | 15D / 77mm |
| Temperature Rating | 75°C |
| Voltage Rating | 300V |
| Length | 152m |
| Construction | Balanced twisted pair |
| Gel Filled | No |
Why Choose SCP 14/4-DB-500 Speaker Cable?
Non-Gel Construction
The non-gel design provides a cleaner alternative to gel-filled direct burial cables while still offering protection against water permeability through the integrated water blocking tape.
Easy Installation and Termination
The water blocking tape is designed to be easy to cut, helping installers prepare and terminate the cable efficiently.
High-Quality OFC Conductors
The 105-strand oxygen-free bare copper conductors provide excellent flexibility and reliable electrical performance for professional speaker systems.
Designed for Harsh Environments
The cable is engineered to maintain its flexibility and strength across demanding outdoor environments, from extremely cold conditions to high-temperature locations.
4-Core 14 AWG Construction
The 4-core 14 AWG configuration provides additional wiring flexibility for landscape audio systems and more complex outdoor speaker installations.
Long 152m Cable Length
Supplied in a 152m length, this cable is suitable for larger projects where extended speaker cable runs are required.
SCP 14/4 Non-Gel vs Gel-Filled Direct Burial Cable
The SCP 14/4-DB-500 offers an alternative to gel-filled direct burial speaker cable for installations where a non-gel construction is preferred.
| Feature | SCP 14/4-DB-500 |
| Cable Type | Non-gel direct burial |
| Water Protection | Water blocking tape |
| Conductor | 105-strand OFC |
| Core Configuration | 4-core |
| Gauge | 14 AWG |
| Outer Jacket | LLDPE |
| Installation | Direct burial / outdoor |
| Cable Length | 152m |
| Termination | Easy-to-cut water blocking layer |
Professional Direct Burial Speaker Cable
For professional landscape audio and outdoor speaker installations, the SCP 14/4-DB-500 provides a durable and practical direct burial cable solution without the use of gel filling.
Its combination of 105-strand oxygen-free copper conductors, water blocking tape, balanced twisted-pair construction and LLDPE direct burial jacket makes it suitable for demanding residential, commercial and professional outdoor audio projects.
Please Note: This 4-core 14 AWG direct burial speaker cable is supplied in a 152m length.
