Description

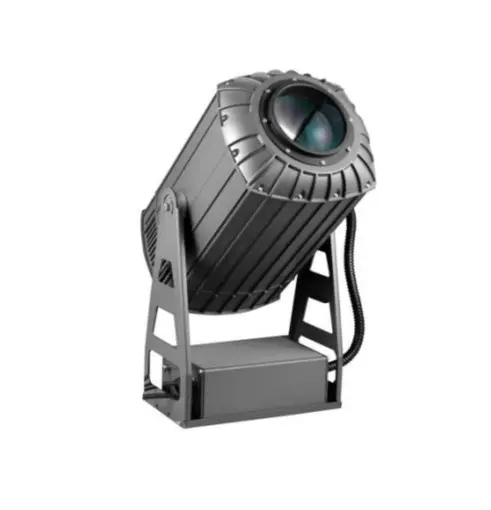

High-Power LED Exterior Framing GOBO Projector — Bespoke Made-to-Order Architectural Projection
The High-Power LED Exterior Framing GOBO Projector is a professional-grade, bespoke made-to-order architectural projection luminaire designed for large-scale image, colour, and GOBO effects in demanding outdoor environments. Engineered for high-output performance, it delivers powerful beam projection, dynamic movement, precise framing control, and advanced optical performance for architectural, event, and commercial installations.
We offer a full bespoke projection solution and can meet any specification. Please call our technical department if you require assistance — we provide FREE project consultation and specification support. Call our design team on 0161 737 7333.
Call for project quotations & bespoke specification pricing
Key Features
- ✅ Bespoke made-to-order high-power exterior framing projector
- ✅ Ultra-high output LED options up to 1000W
- ✅ Precision framing shutters for shaped light and image control
- ✅ Motorised zoom, focus, dimming, and strobe effects
- ✅ CMY colour mixing with additional dichroic colour wheel
- ✅ IP65-rated for professional outdoor use
Technical Specifications
- ☑️ Light Source: 600W / 800W / 1000W white LED
- ☑️ Colour Temperature: 6600K
- ☑️ Average LED Life: 20,000 hours
- ☑️ Input Voltage: AC 100–240V, 50/60Hz
- ☑️ Power Consumption: 750W / 1000W / 1200W
- ☑️ Zoom: 5° – 50° linear electronic zoom
- ☑️ Focus: Motorised linear focus
- ☑️ Dimmer: 0–100% linear dimming curves
- ☑️ Strobe: 0–25 Hz variable speed, pulse & random effects
- ☑️ Framing System:
- 8 independent framing shutters
- System rotation: ±90°
- ☑️ Colour Mixing: CMY colour mixing system
- ☑️ Colour Wheel: 6 dichroic colours + open, bi-directional rotating rainbow
- ☑️ GOBO Wheel:
- 1 × rotating GOBO wheel
- 6 interchangeable glass gobos + open
- ☑️ GOBO Effects: Rotating / shake / bi-directional variable-speed rotation
- ☑️ Dynamic Effects: Dynamic GOBO effects
- ☑️ GOBO Size: Ø28 mm (outer) / Ø22 mm (inner)
- ☑️ DMX Channels: 21 CH
- ☑️ Control Modes: DMX, Auto 1, Auto 2, Sound, Scene
- ☑️ Display: Full-colour 180° reversible LCD
- ☑️ DMX Connections: 3-pin waterproof DMX in/out
- ☑️ Power Connections: 3-pin waterproof power in/out
- ☑️ Protection Rating: IP65
- ☑️ Dimensions: 262 × 329 × 681 mm
- ☑️ Net Weight: 28.35 kg
- ☑️ Packaging:
- Carton: 800 × 495 × 390 mm — 30.75 kg
- Flightcase: 740 × 520 × 420 mm
Applications

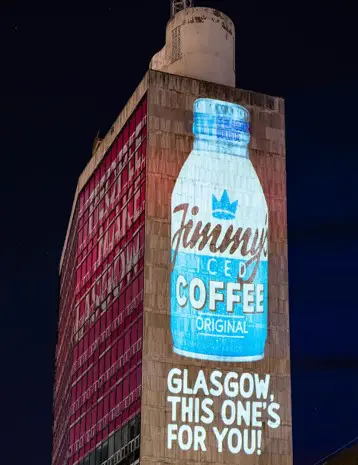

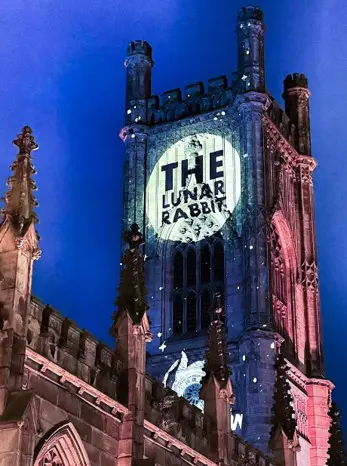

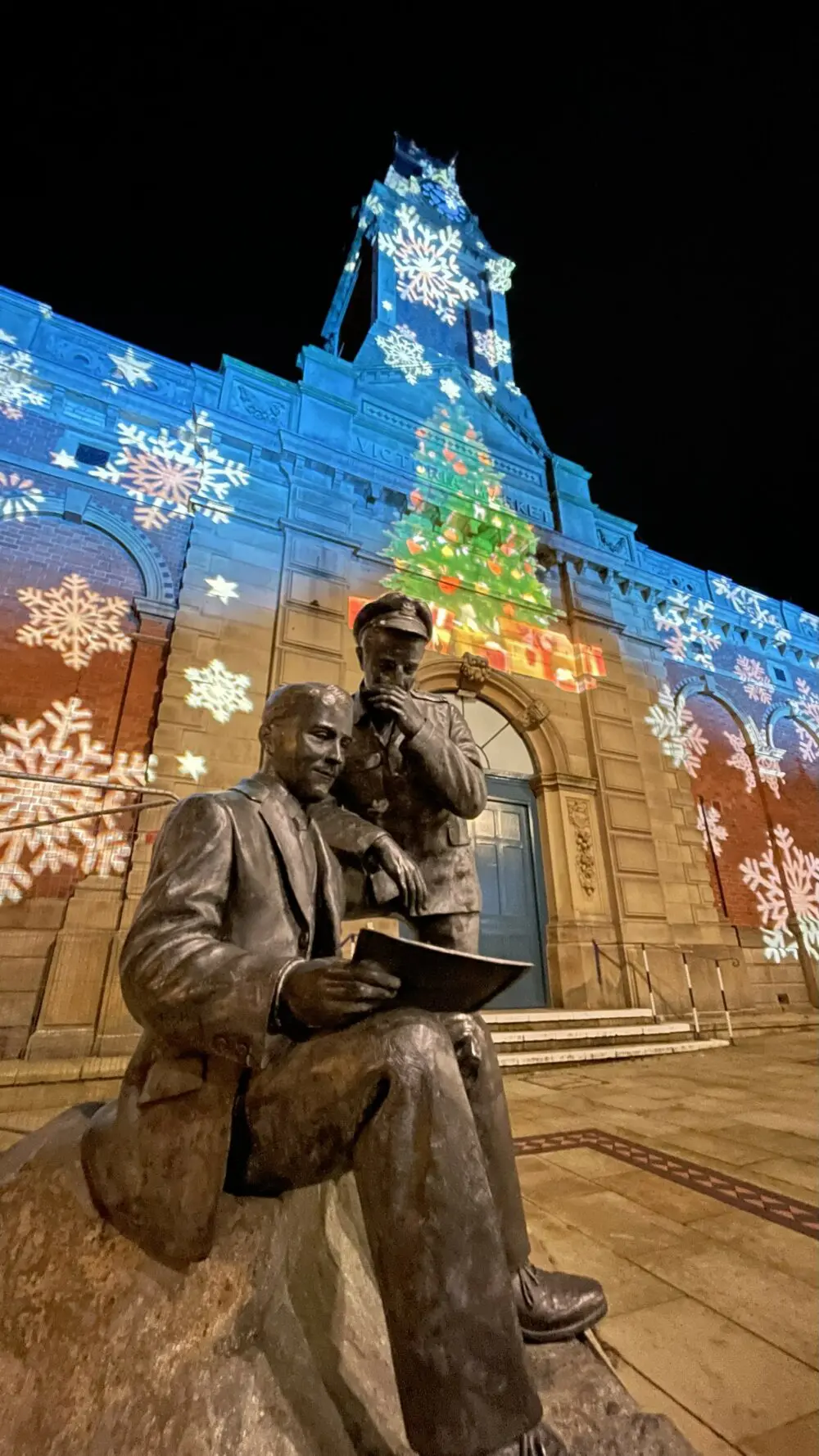

- ✅ Large-scale architectural and façade projection
- ✅ Precision framing for building details and features
- ✅ Outdoor events, festivals, and live productions
- ✅ High-impact branding and promotional installations
- ✅ Permanent and temporary exterior lighting schemes
Why Choose This Framing Projector?
- ✅ High-power output for long-throw architectural projection
- ✅ Precision framing shutters for controlled light shaping
- ✅ Advanced colour mixing and GOBO effects in one fixture
- ✅ Robust IP65 construction for professional outdoor use
- ✅ Supplied as a bespoke, project-specified solution
Additional Information
- ✅ Bespoke specification and configuration available
- ✅ Project-based pricing and trade discounts
- ✅ FREE technical consultation and system design support
- ✅ Approved supplier of professional architectural projection lighting
