Description

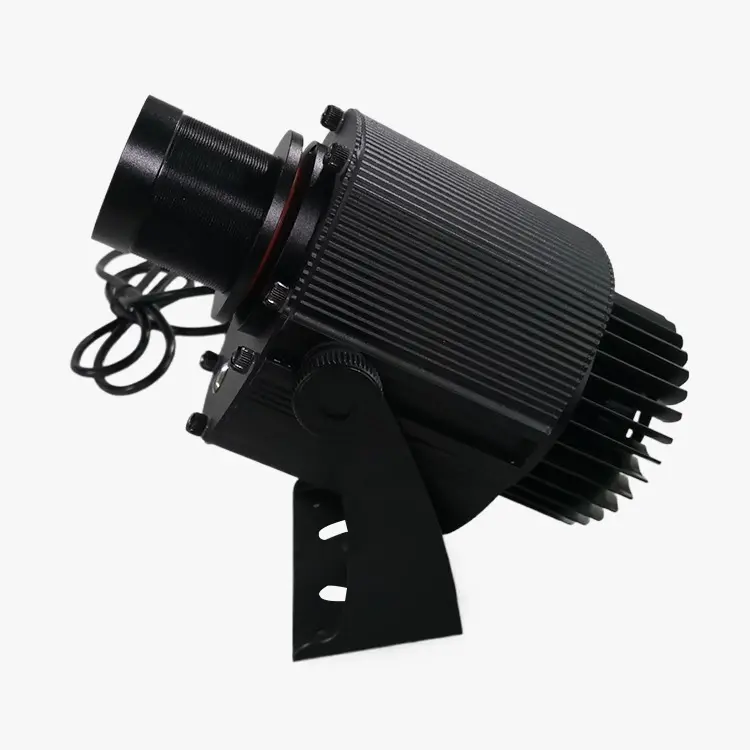

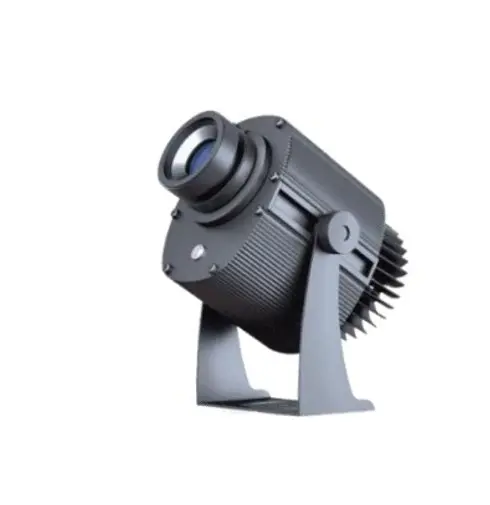

GHSMIZ-W-L LED Exterior GOBO Projector — Bespoke Made-to-Order Image & Logo Projection
The GHSMIZ-W-L LED Exterior GOBO Projector is a high-performance, bespoke made-to-order LED projection luminaire engineered for crisp, high-brightness image and logo projection onto walls, buildings, and outdoor surfaces. Designed for demanding exterior applications, it delivers powerful optical performance combined with advanced control features and reliable all-weather performance.
Ideal for creative, architectural, and commercial installations, the GHSMIZ-W-L is perfectly suited to branding, wayfinding, architectural highlights, and promotional projection where clarity, brightness, and durability are essential.
We offer a full bespoke projection service including GOBO design support and can meet any specification. Please call our technical department if you require assistance — we provide FREE project consultation and specification support. Call our design team on 0161 737 7333.
Call for project quotations & bespoke GOBO pricing
Key Features
- ✅ Bespoke made-to-order image and logo projection luminaire
- ✅ High-output OSRAM LED options up to 100W
- ✅ Rotating GOBO as standard
- ✅ Multiple lens options for precise beam control
- ✅ Adjustable mounting bracket for flexible aiming
- ✅ IP65-rated for permanent exterior installation
Technical Specifications
- ☑️ Light Source: OSRAM LED
- ☑️ Rated Power: 35W / 50W / 80W / 100W
- ☑️ Luminous Flux:
- 35W: 3500 lm
- 50W: 6000 lm
- 80W: 8000 lm
- 100W: 10,000 lm
- ☑️ Colour Temperature: 8000K – 8500K
- ☑️ Colour Rendering Index (CRI): ≥85 Ra
- ☑️ Input Voltage: AC 110–240V, 50/60Hz
- ☑️ Forward Voltage: 24–36V
- ☑️ Default Lens: 0.33 (17°)
- ☑️ Available Lenses: 0.2 (11°) / 0.33 (17°) / 0.65 (36°) / 1.0 (53°)

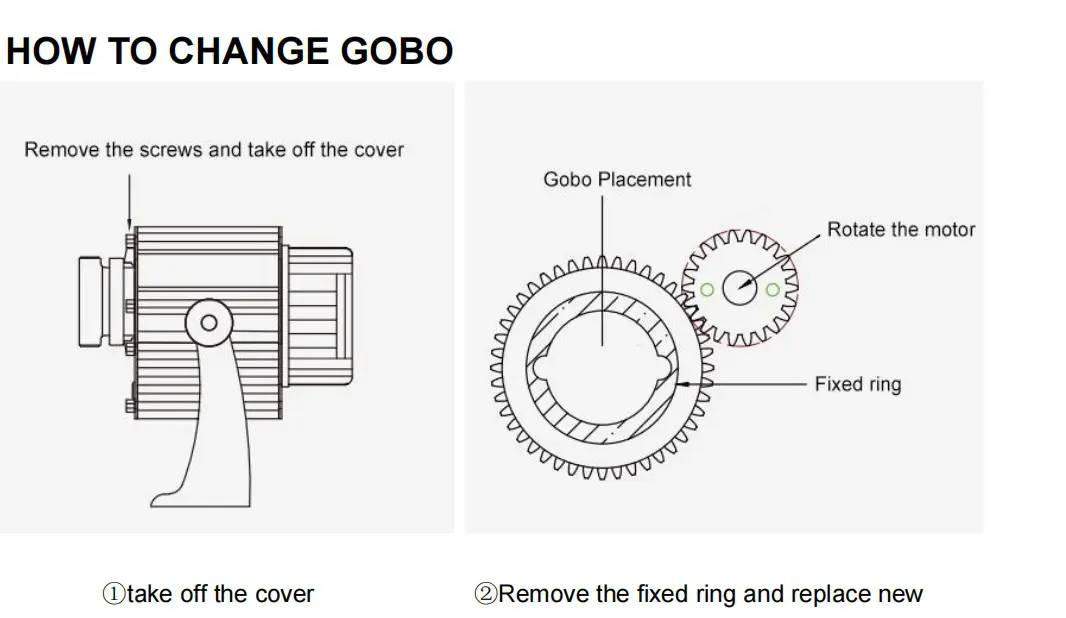

- ☑️ GOBO Type: 1 × Rotating GOBO
- ☑️ GOBO Diameter: 37 mm
- ☑️ Adjustable Bracket Angle: 0–180°
- ☑️ Protection Rating: IP65

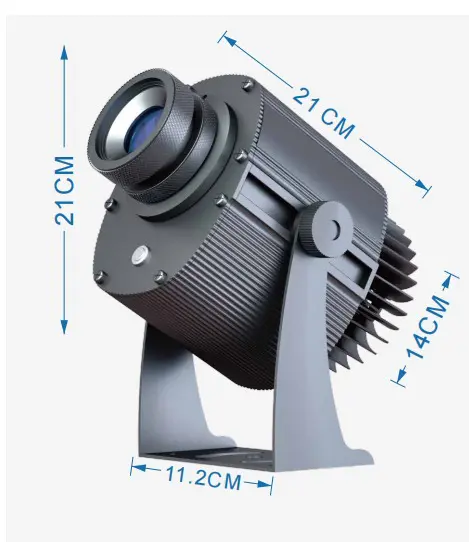

- ☑️ Dimensions: 134 × 193 × 184 mm
- ☑️ Net Weight: 1.6 kg / 2.1 kg
- ☑️ Package Size: 360 × 210 × 160 mm
Applications
- ✅ Architectural façade and building projection
- ✅ Corporate branding and logo projection
- ✅ Wayfinding and directional signage
- ✅ Retail, hospitality, and commercial environments
- ✅ Permanent outdoor promotional installations
Why Choose GHSMIZ-W-L?
- ✅ Bespoke made-to-order solution tailored to each project
- ✅ High-lumen output options up to 10,000 lm
- ✅ Precision optics for controlled image projection
- ✅ Robust IP65 housing for reliable exterior use
- ✅ Supported by specialist projection lighting engineers
Additional Information
- ✅ Custom GOBO artwork and design service available
- ✅ Project-based pricing and trade discounts
- ✅ FREE technical consultation and specification assistance
- ✅ Approved specialist supplier of architectural projection lighting
