Description

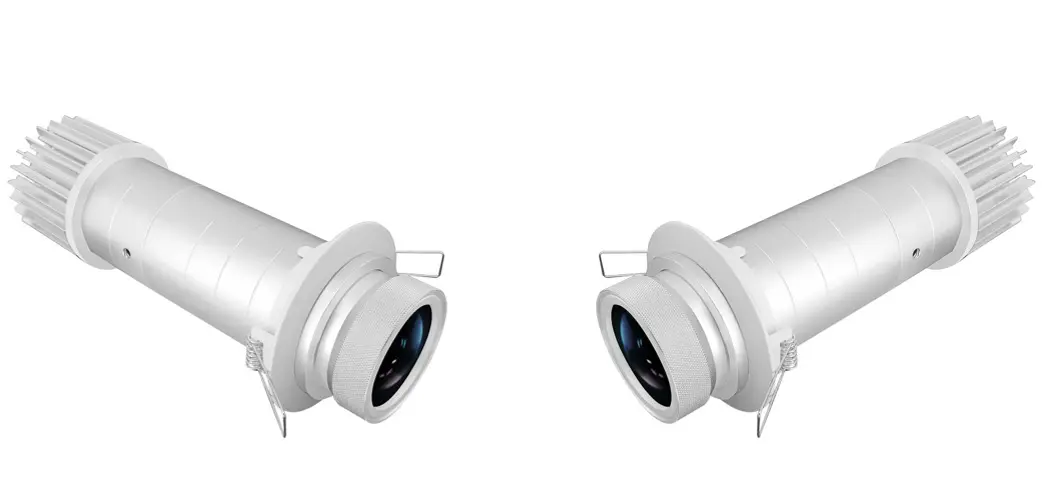

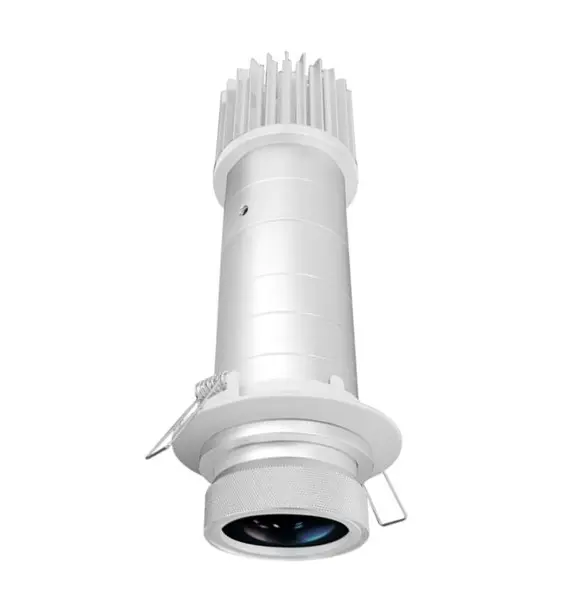

GHSMIZ-W-E LED Interior Recessed GOBO Projector — Bespoke Made-to-Order Image & Logo Projection
The GHSMIZ-W-E LED Interior Recessed GOBO Projector is a high-performance, bespoke made-to-order LED projection luminaire designed to deliver crisp, high-brightness image and logo projection onto interior surfaces. Designed specifically for recessed indoor installations, it provides precise optical performance combined with discreet architectural integration and reliable operation.
We offer a full bespoke projection service including catalogue GOBO options or your own custom artwork. Please call our technical department if you require assistance — we provide FREE project consultation and specification support. Call our design team on 0161 737 7333.
Call for project quotations & bespoke GOBO pricing
Key Features
- ✅ Bespoke made-to-order interior image and logo projection luminaire
- ✅ Recessed installation for clean architectural finishes
- ✅ High-quality OSRAM LED options for sharp image clarity
- ✅ Static GOBO for precise logo projection
- ✅ Adjustable bracket for accurate alignment
- ✅ IP20-rated for indoor use
Technical Specifications
- ☑️ Light Source: OSRAM LED
- ☑️ Rated Power Options: 15W / 25W / 35W
- ☑️ Luminous Flux:
- 15W: 1200–1500 lm
- 25W: 2000–2500 lm
- 35W: 3000–3500 lm
- ☑️ Colour Temperature: 8000K – 8500K
- ☑️ Lens Ratio: 0.28
- ☑️ GOBO Capacity: 1 × Static GOBO
- ☑️ GOBO Size: Ø37 mm
- ☑️ Adjustable Bracket Angle: 0–30°
- ☑️ Installation Type: Recessed / embedded

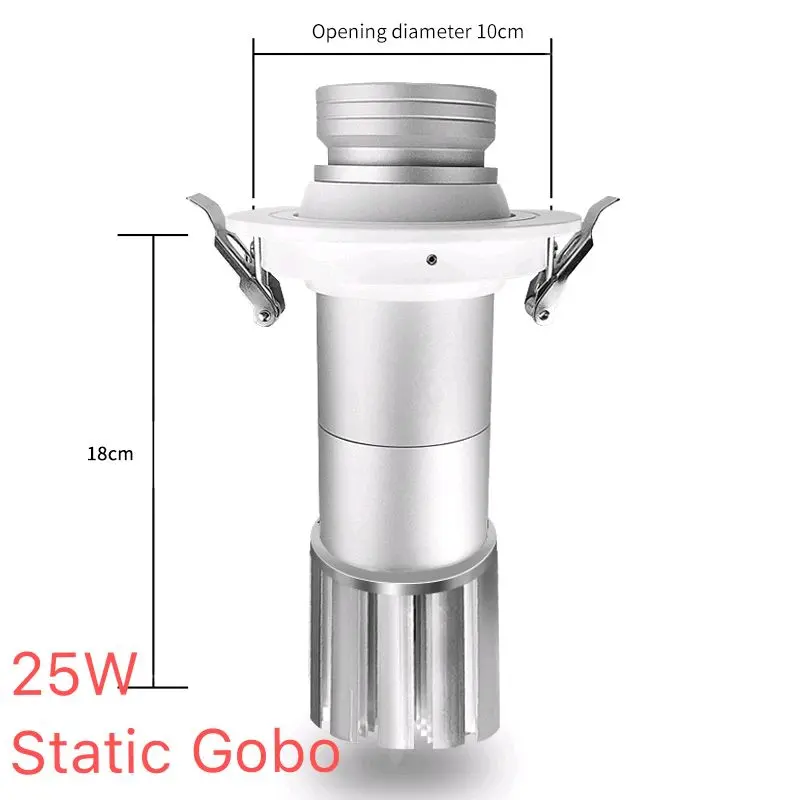

- ☑️ Recommended Cut-out Size: Ø90 mm
- ☑️ Recommended Installation Depth: 220 mm
- ☑️ Housing Finish: Black / Silver
- ☑️ Protection Rating: IP20
- ☑️ Dimensions: 50 × 90 × 230 mm
- ☑️ Net Weight: 1 kg
- ☑️ Carton Package: 140 × 190 × 350 mm — 1.5 kg
Applications
- ✅ Interior branding and logo projection
- ✅ Retail, hospitality, and commercial interiors
- ✅ Wayfinding and directional signage
- ✅ Architectural feature lighting
- ✅ Showrooms, galleries, and exhibition spaces
Why Choose GHSMIZ-W-E?
- ✅ Bespoke made-to-order solution tailored to each interior project
- ✅ Discreet recessed design for seamless integration
- ✅ Sharp, high-contrast static logo projection
- ✅ Multiple wattage options to suit different environments
- ✅ Supported by specialist architectural projection engineers
Additional Information
- ✅ Custom GOBO artwork and design support available
- ✅ Project-based pricing and trade discounts
- ✅ FREE technical consultation and specification assistance
- ✅ Approved specialist supplier of architectural projection lighting
