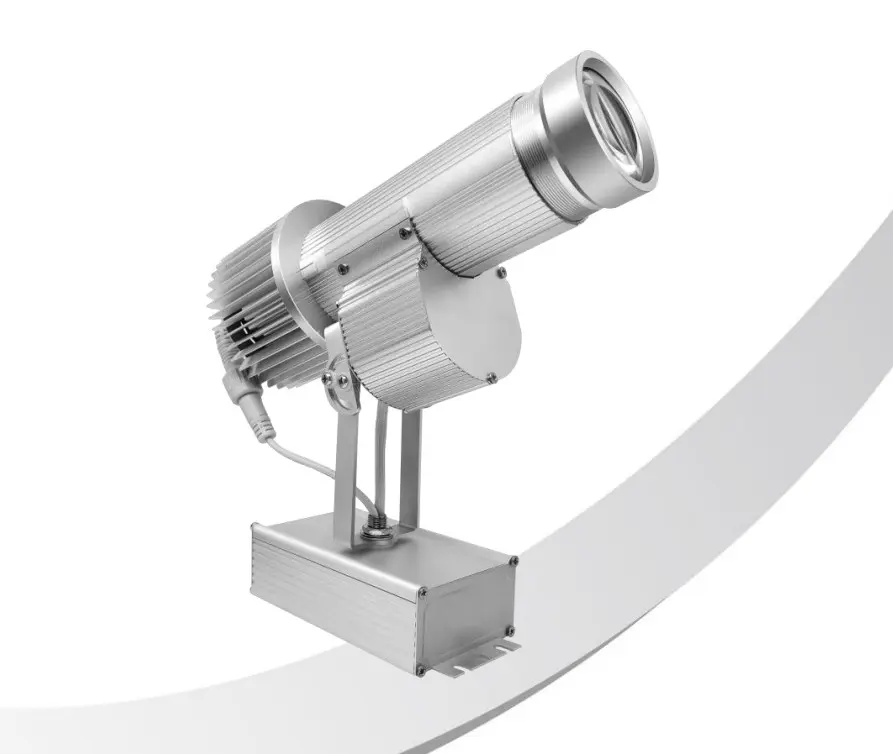

GHSMIZ-W-A LED Exterior GOBO Projector — Bespoke Made-to-Order Image & Logo Projection
The GHSMIZ-W-A LED Exterior GOBO Projector is a high-performance, made-to-order projection luminaire engineered for crisp, high-brightness logo and image projection onto walls, buildings, and outdoor surfaces. Each unit is bespoke manufactured for your project, using either catalogue GOBO options or your own custom-designed artwork.
Designed for creative, architectural, and commercial applications, the GHSMIZ-W-A combines powerful optical performance, flexible lens options, and robust all-weather reliability. Ideal for branding, wayfinding, architectural highlights, and promotional installations.
We offer a full bespoke projection service including GOBO design support. Please call our technical department if you require assistance — we provide FREE project consultation and specification support. Call our design team on 0161 737 7333.
Call for project quotations & bespoke GOBO pricing
Key Features
- ✅ Bespoke made-to-order LED exterior GOBO projector
- ✅ Suitable for catalogue GOBOs or fully custom artwork designs
- ✅ High-brightness LED projection for buildings and outdoor surfaces
- ✅ Static or rotating GOBO options available
- ✅ Multiple wattage and lens angle configurations
- ✅ IP65-rated for permanent outdoor installation
Technical Specifications
- ☑️ Light Source: Sanan LED (15W) / OSRAM LED (25W–55W)
- ☑️ Rated Power: 15W / 25W / 35W / 55W
- ☑️ Luminous Flux:
- 15W: 1200–1500 lm
- 25W: 2000–2500 lm
- 35W: 3000–3500 lm
- 55W: 5000–5500 lm
- ☑️ Colour Temperature: 8000K – 8500K
- ☑️ Colour Rendering Index (CRI): ≥85 Ra
- ☑️ LED Lifetime: 50,000 hours
- ☑️ Supply Voltage: AC 110–240V, 50/60Hz
- ☑️ Lens Options: 0.27 (default), 0.33, 0.5, 0.65
- ☑️ GOBO Capacity: 1 × Static or Rotating GOBO
- ☑️ GOBO Diameter: 37 mm
- ☑️ Protection Rating: IP65
- ☑️ Adjustable Bracket Angle:
- Static: 0–180°
- Rotating: 0–90°
- ☑️ Remote Control: Optional — up to 100 m range
- ☑️ Dimensions: 70 × 220 × 220 mm
- ☑️ Net Weight: 1.30 kg | Gross Weight: 1.60 kg
Applications
- ✅ Architectural façade and building projection
- ✅ Corporate branding and logo projection
- ✅ Retail, hospitality, and commercial premises
- ✅ Events, exhibitions, and promotional installations
- ✅ Permanent outdoor signage and wayfinding
Why Choose GHSMIZ-W-A?
- ✅ Fully bespoke, made-to-order solution for each project
- ✅ Supports both standard catalogue and custom-designed GOBOs
- ✅ High-output LED options up to 55W for long-throw applications
- ✅ Robust IP65 construction for reliable outdoor performance
- ✅ Flexible lens and mounting options for precise image control
Additional Information
- ✅ Custom GOBO design service available
- ✅ Project-based pricing and trade discounts available
- ✅ Supplied and supported by specialist projection lighting engineers
- ✅ Contact our team for photometric advice and specification support
