37watt Framing Projector Spotlight – Contour Zoom & Focus Track Mount
The Framing Projector Spotlight Contour Zoom & Focus Track Mount 37W is a high-output professional LED framing luminaire engineered for galleries, museums, exhibitions and premium architectural lighting. This 37W powerhouse delivers superior optical performance, allowing curators and lighting designers to create perfectly framed beams, project images or text from gobos, and achieve precise control over focus, sharpness and beam size.
Designed for maximum flexibility, the unit supports spot focusing, fixed focusing, zoom and bi-directional zoom for full creative control. Powered by a high-efficiency Tridonic LED engine and featuring an exceptionally high CRI of 97, it ensures true-to-life colour representation — essential for art conservation, display environments and high-end installations.
Compatible with multiple control protocols including CASAMBI, DMX, DALI, Triac and 0–10 V, this track-mounted projector integrates seamlessly into modern lighting systems. A wide selection of adaptors is available to suit all track types including top box and side box systems.
Call for project quotations & trade discounts
Key Features
- ✅ High-output 37W LED framing projector for track mounting
- ✅ Ultra-high CRI 97 for exceptional colour accuracy
- ✅ Precision optical system for framing and gobo projection
- ✅ Supports zoom, fixed focus and bi-directional focus modes
- ✅ Powered by Tridonic’s high-efficiency light engine
- ✅ Fully dimmable via CASAMBI, DMX, DALI, Triac or 0–10 V

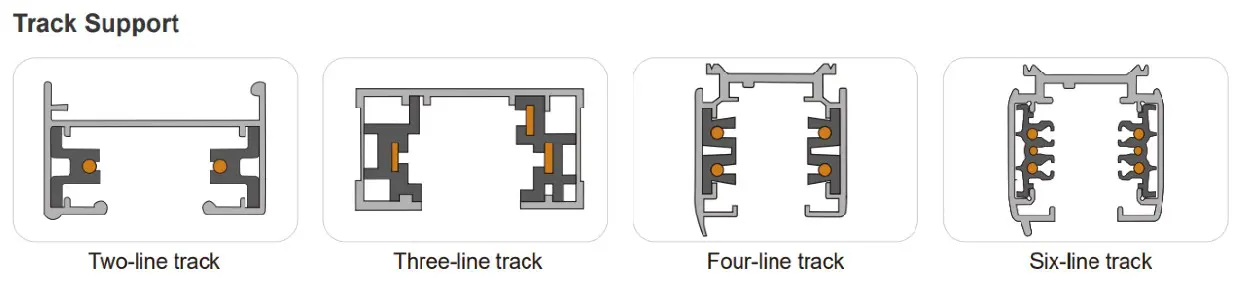

- ✅ Suitable for all major track systems (top box / side box)
Lens Options
- ☑️ Zoom & Focus 15°–36° — GHSKPT4008K-5836B
- ☑️ Fixed & Focus 55° — GHSKPT4008K-5855
Technical Specifications
- ☑️ Power: 37 W
- ☑️ Lumen Output: 1550 lm
- ☑️ Colour Rendering Index: Ra97
- ☑️ Light Engine: Tridonic
- ☑️ CCT Options: 2700 K, 3000 K, 4000 K, 6000 K
- ☑️ CCT Dip-Switch Option: Available upon request
- ☑️ Gobo Size: Ø30 mm / 18 mm inner
- ☑️ Rotation: 355° × 355°
- ☑️ Input Voltage: 230 V ± 10%
- ☑️ Supply Frequency: 50/60 Hz
- ☑️ Ambient Temperature: 0 °C – 50 °C
- ☑️ IP Rating: IP20
- ☑️ Control Options: CASAMBI, DMX, DALI, Triac, 0–10 V
- ☑️ Mounting Options: Track — top box / side box (surface & recessed also available)
- ☑️ Available Colours: White / Black
- ☑️ Cut-out: N/A
- ☑️ Dimensions: As per product images
Applications
- 🎨 Art galleries & museums
- 🏛️ Exhibition lighting
- 🛍️ High-end retail & boutique displays
- 🎭 Projection of text, images, logos & QR codes
- 📐 Precision architectural accent lighting
Why Choose the 37W Track-Mount Framing Projector?
- 🚀 Highest-output model in the series for powerful illumination
- 🎨 CRI 97 ensures museum-grade colour accuracy
- 🔍 Exceptional flexibility with zoom & focus optics
- 📡 Compatible with modern smart control and DMX systems
- 🛠️ Adaptable mounting across all standard track systems
- 📞 Supported by UK-based technical design specialists
Additional Information
- 📦 FREE delivery for orders over £100
- 📞 Trade discounts available — call for pricing
- 🌐 Approved LED distributor — full technical support available
