ANOLIS Ambiane™ SP16

Description

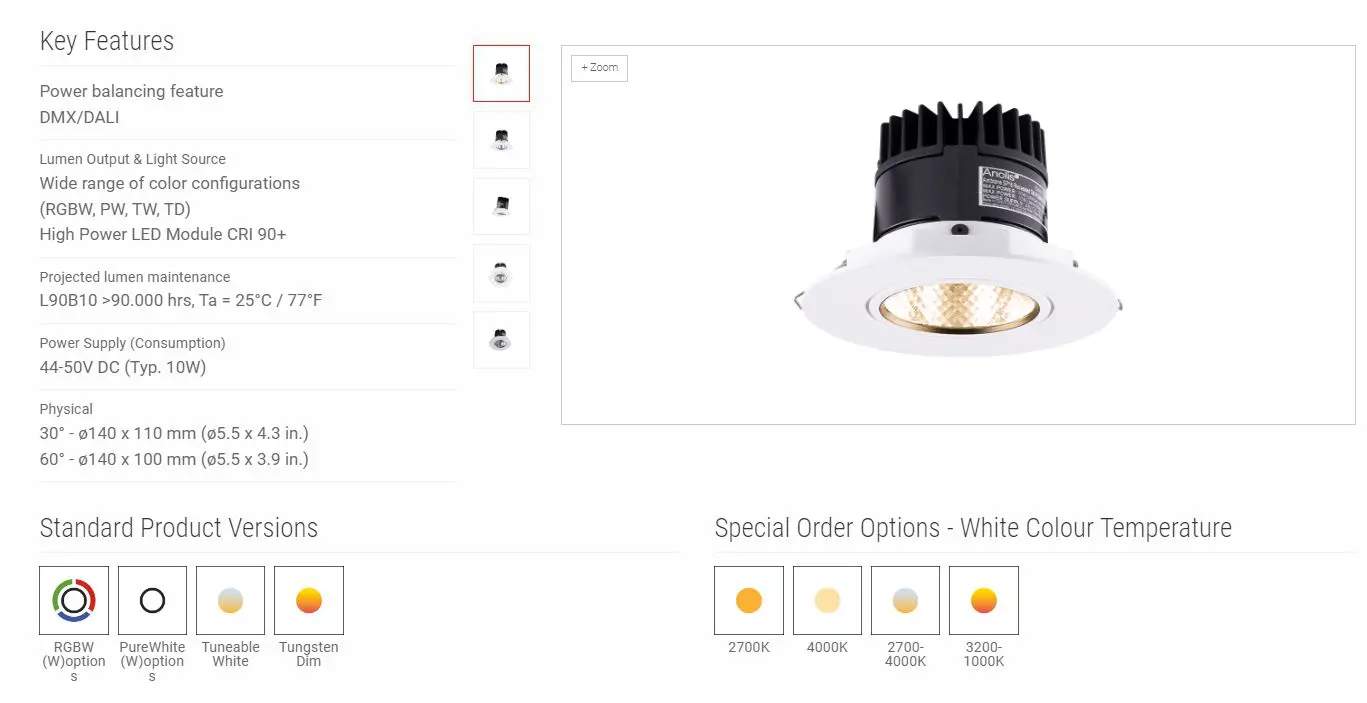

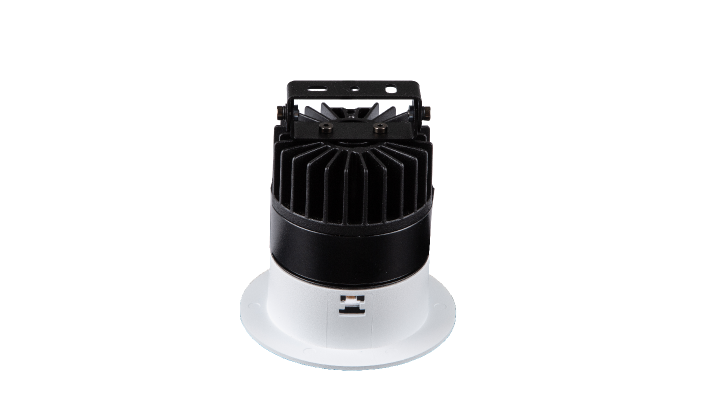

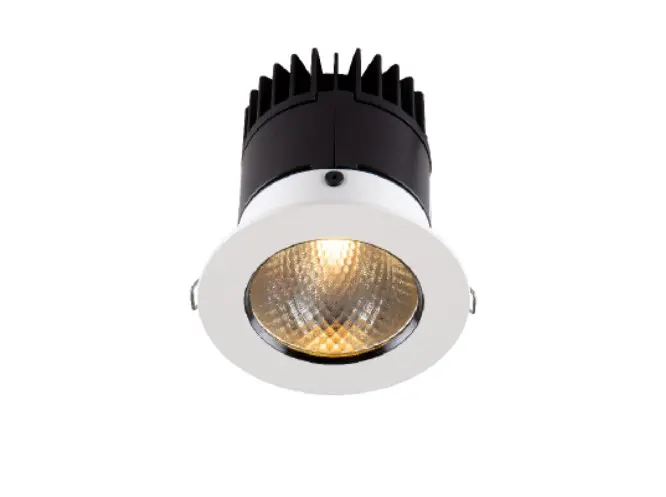

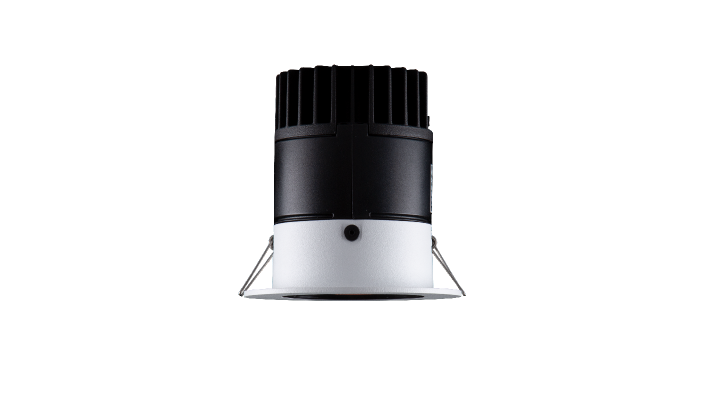

ANOLIS Ambiane™ SP16 Recessed Tiltable

The smallest luminaire of Ambiane range offers efficient, powerful and high-quality solution for lower ceiling recessed applications. Highly efficient LED module with CRI 90+, no UV or IR emissions, CCT and green correction settings is perfect for museums, art galleries, theatres, concert halls and other most demanding installations. Sharing the same LED chip-set with other Ambiane fixtures it complements the range and gives lighting designers even more options for various interior lighting installations. Tiltable trim 0 – 25°.

SPECIFICATION

ELECTRICAL

Input Voltage 48 V DC

Input Voltage range 44-50 V DC

Max. Power Consumption 10 W

OPTICAL

Light Source High Power LED module

Colour Variants RGBW (W 2700 K or 4000 K) Pure White Tunable White Tungsten Dim

Colour Temperature of White PW 2700 K or 4000 K | TW 2700-4000 K | TD 3200 K

CRI 90+

Beam Angle 30° | 60°

Lumen Output Delivered

481 lm (RGBW at 30° White LEDs only)

518 lm (RGBW at 60° White LEDs only)

Projected Lumen Maintenance L90B10 >90.000 hrs, Ta = 25°C / 77°F

CONTROL

Interface Protocol USITT DMX512, RDM, DALI 2, 0-10 V

DALI 2 Device Type DT 8

Control System ArcControl Range or any Third Party Controller

DMX Modes 5 (for RGBW version)

DMX Channels 4, 3, 12, 3, 6

Settings / Addressing DIP Switch, RDM

Power Supply

Ambiane Power AP (up to 4x Ambiane SP16)

Ambiane Power Rack (up to 4x Ambiane SP16 per Output)

PHYSICAL

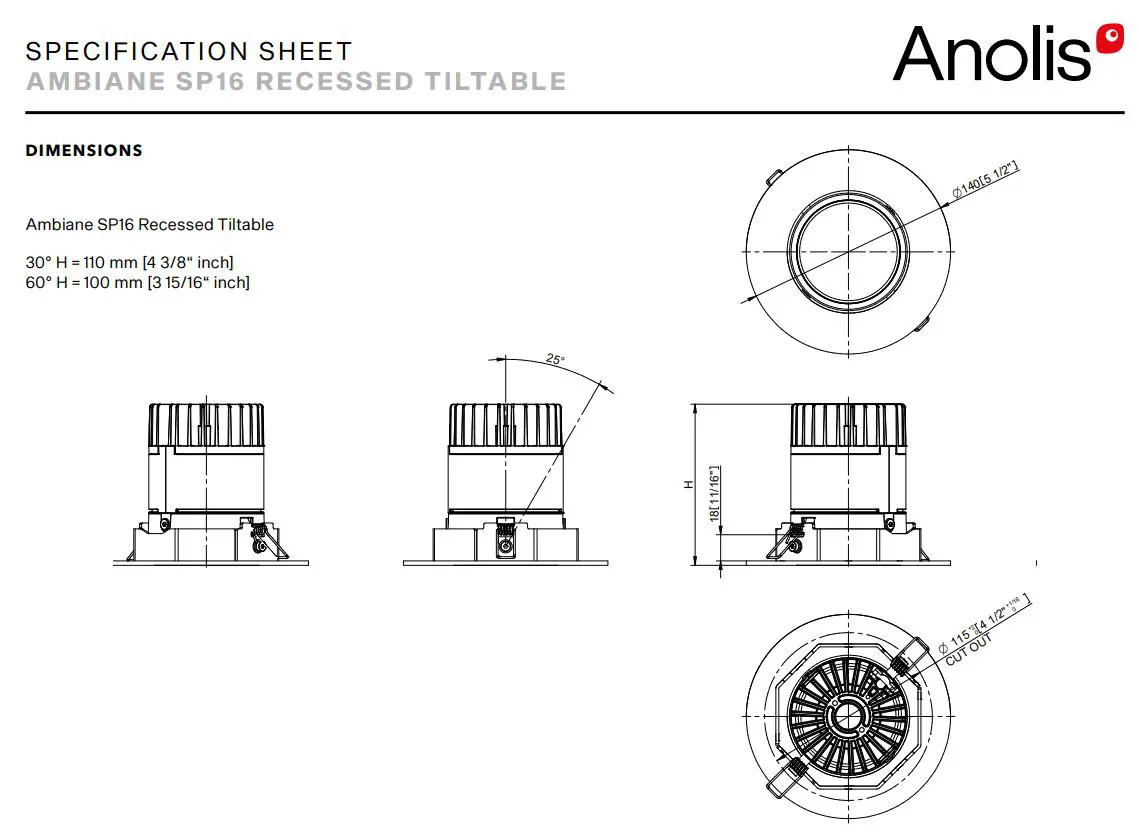

Diameter x Height

Ambiane SP16 Recessed Tiltable 30° – ø140 x 110 mm (ø5.5 x 4.3 in.)

Ambiane SP16 Recessed Tiltable 60° – ø140 x 100 mm (ø5.5 x 3.9 in.)

Weight 0.69 kg | 1.5 lbs

Housing Die-Cast Aluminium Body

Trim Finish Options

Standard Color – White RAL9016 | Black RAL9005

Cost Option – Custom RAL

Cables / Connections Terminal block (Power In, DMX In/Out, DALI In/Out)

Mounting Method Recessed, Via Spring Clips. Cut-Out Diameter: 115 mm / 4.5 in

Adjustability 0 – 25°

Protection Factor IP20 / Dry location only

Cooling System Convection

Operating Ambient Temperature -20 °C / +40 °C (-4 °F / +104 °F) (TBC)

Max. Operating Temperature +75°C (167°F) (TBC)

CERTIFICATION Listings ETL / cETL, RoHS, CE, UKCA

ACCESSORIES

Included Items

Control Unit for Ambiane SP16

Not Included Items

Ambiane Power Rack (CE/US)

Ambiane Power AP
