Description

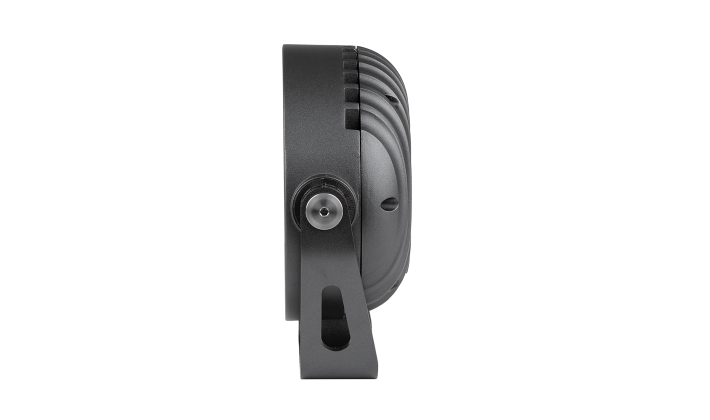

ANOLIS Calumma™ M MC
Featuring an optical design using 7 high efficacy multi-chip LEDs and available with optional LED colour variants and various beam angles, the medium-sized Calumma M MC luminaire creates powerful and beautiful light output for a spot, accent or flood lighting solution. Its durable housing is built to withstand any exterior conditions, and its special finish for harsh and marine environments provides an exceptional outdoor LED luminaire in an elegant design. Additionally, Calumma M MC can be connected in long In/Out daisy-chains via an E-Box and hybrid Plug & Play connections for almost effortless installation. Complemented by wide range of accessories and control protocols, this luminaire is an effective and versatile unit to get the most out of architectural lighting applications.
SPECIFICATION
ELECTRICAL
Input Voltage 120 – 277 V AC 50/60 Hz (US)
Typical Power Consumption 65 W +/-10 %
OPTICAL
Light Source High Power Multichip LEDs
Colour Variants
RGBW (W – 6500 K) | RGBA | PW (W – 3000 K)
Other Variants On Request (TW 3000 – 6500 K)

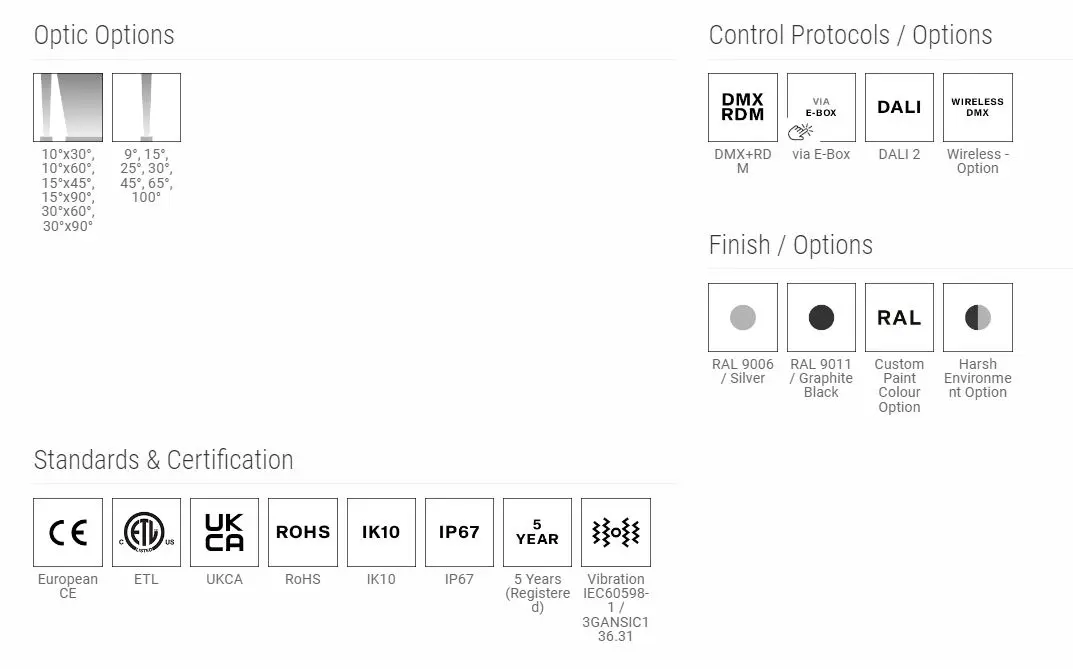

Beam Angle
9° | 15° | 25° | 30° | 45° | 65° | 100°
10°x30° | 30°x10° | 10°x60° | 60°x10° | 15°x45° | 45°x15°
15°x90° | 90°x15° | 30°x60° | 60°x30° | 30°x90° | 90°x30°
Lumen Output Delivered 2316 lm (@9° RGBW)
Projected Lumen Maintenance L90B10 >90.000 hrs, Ta = 25°C / 77°F
CONTROL
Interface Protocol Via E-box range, DMX/RDM, wireless DMX, DALI 2
E-box control protocol USITT DMX512+RDM, ArtNet, MA Net, MA Net2, sACN, Kling-Net
DALI 2 Device Type DT 8
Wireless DMX (Option) Lumen Radio CRMX Technology
Control System Third Party DMX Controllers
Operating Modes DMX, Stand-alone
Settings / Addressing E-box, RDM communicator
Power Supply Integrated
PHYSICAL

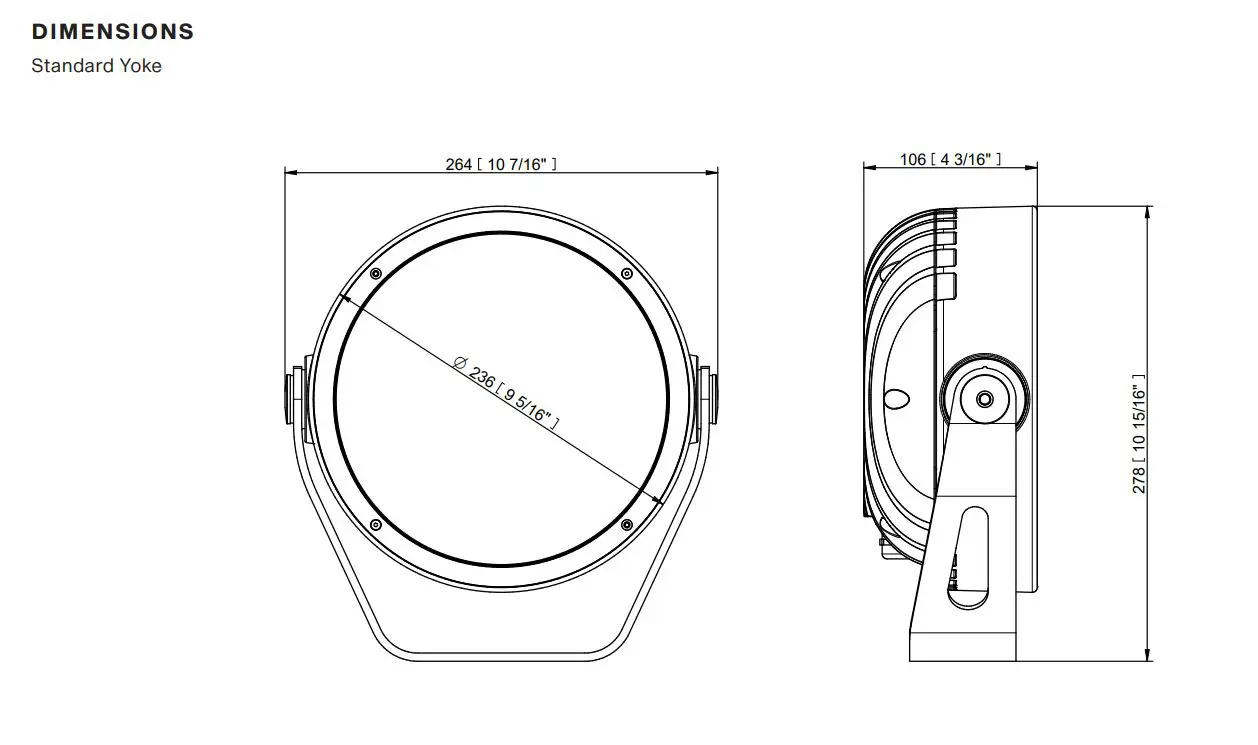

Width x Height x Depth 264 x 278 x 106 mm (10.4 x 10.94 x 4.17 in.)
Weight 5.77 kg | 12.72 lbs
Housing
High Pressure Die-Cast Aluminium Body
Tempered Glass
Finish Options
Standard Colour – Graphite Black (RAL 9011), Silver (RAL 9006)
Cost Option – Custom RAL | Harsh Environment (RAL 9016, RAL 9011)
Cables / Connections
IN/OUT (for E- Box version):
– 0,5 m cables with hybrid connectors
– Jumper cables
IN (for DMX, DALI):
– 1 m cable with bare end
– Other cable length – custom
– Junction box – optional
Mounting Method Yoke or Yoke for Pole Adaptor
Adjustability +180° / -180°
Protection Factor IP67 / Suitable For Wet Locations
IK Rating IK10
Cooling System Convection
Operating Ambient Temperature -20 °C / +50 °C (-4 °F / +122 °F)
CERTIFICATION Listings ETL / cETL, CE, RoHS, UKCA
ACCESSORIES
Not Included Items
Junction Box for Calumma
Optical Demo Set for Calumma M
Top Hat Calumma M
Half Top Hat Calumma M
Tenon Adaptor for Calumma M
Floor Stand for Calumma S, M
Pole Adaptor (ø 102mm) (Yoke for Pole Adaptor Required)
