Description
This item is a Bespoke Made To Order specifically for your project product.

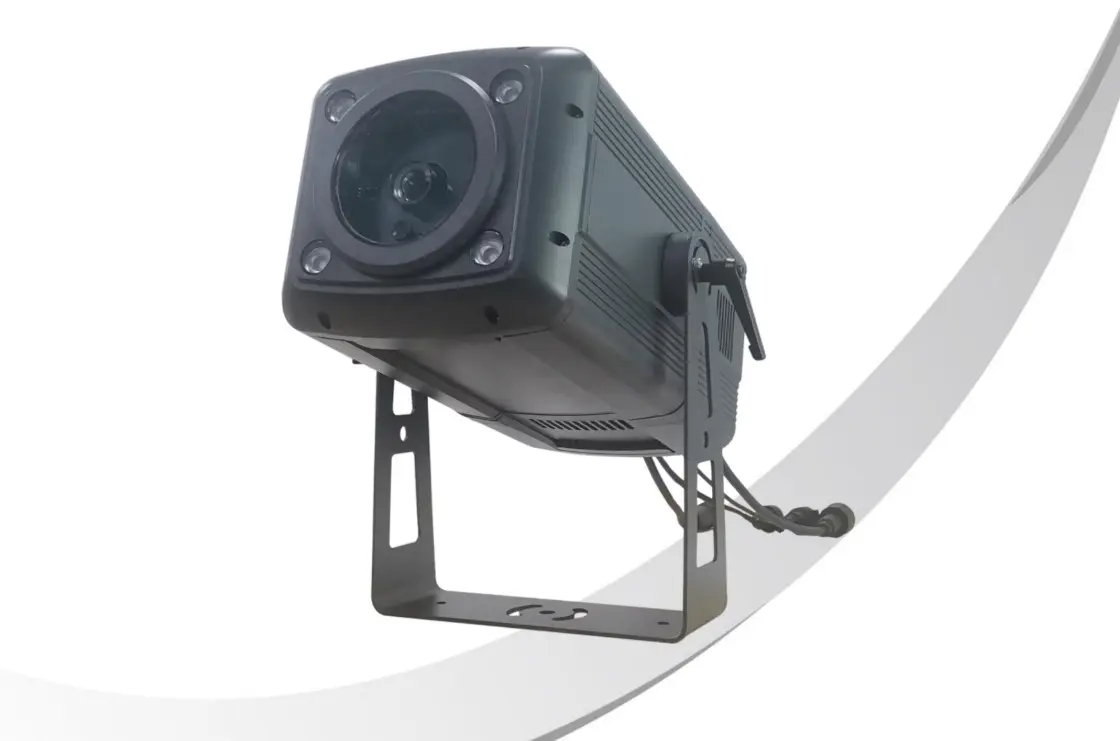

GHSMIZ1000LM Outdoor Interactive Projector — IP65 Digital Outdoor Entertainment & Advertising System
This Outdoor Interactive Projector transforms any outdoor space into an immersive entertainment or advertising environment. Combining powerful DLP projection, intelligent interactivity, and robust IP65 weather protection, it delivers a new standard for outdoor leisure and commercial engagement. Whether you’re creating dynamic games for families, cinematic backyard experiences, or eye-catching retail and brand activations, the Nebula 1000lm provides unmatched versatility and performance.
We offer a full range of AV and lighting solutions and can meet any specification. Please call our technical department if you require assistance — we provide FREE project design support. Call our design team on 0161 737 7333.
Call for project quotations & trade discounts
Key Features
- ✅ 1000 ANSI lumen outdoor interactive projector
- ✅ Built-in interactive capture system with infrared camera
- ✅ Vast library of interactive games + media playback
- ✅ IP65 weatherproof — ideal for permanent outdoor installation
- ✅ Supports entertainment, advertising & brand activation
- ✅ Wireless connectivity: WiFi & Bluetooth + Ethernet
- ✅ Android-based system with content management & onboard storage
- ✅ Durable die-cast aluminium housing for long-term reliability
Technical Specifications
- ☑️ Light Source Type: DLP TI 0.45″ DMD
- ☑️ Projection Light Source: OSRAM RGB LED
- ☑️ Rated Lifetime: 20,000 hours
- ☑️ Output Luminous Flux: 1000 ANSI lumens
- ☑️ Contrast Ratio: 500:1

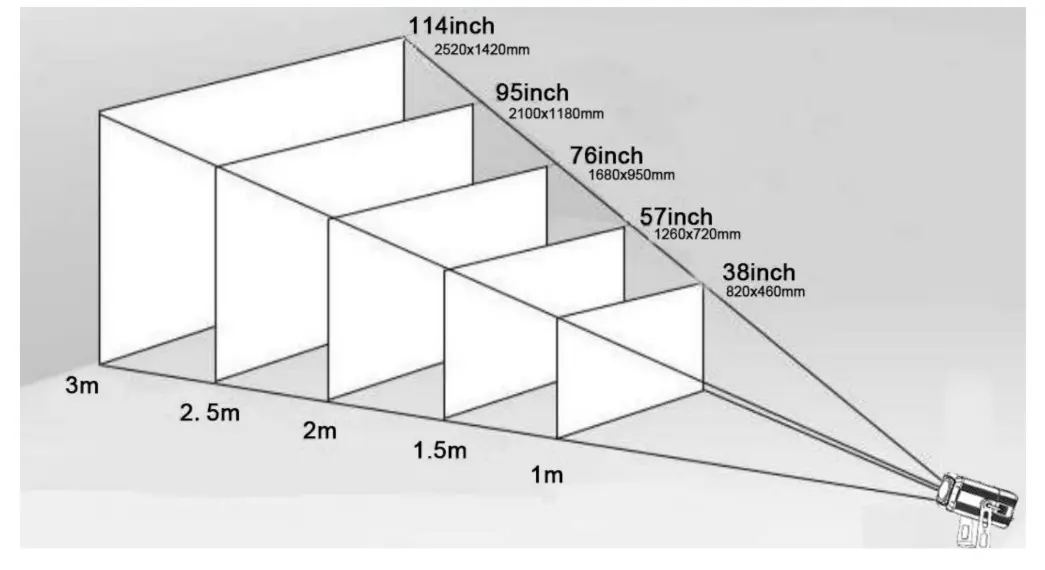

- ☑️ Lens Throw Ratio: 1.2
- ☑️ Beam Angle: 45°
- ☑️ Aspect Ratio: 16:9 (4:3 compatible)
- ☑️ Resolution: Native 1280×800, supports 1080P
- ☑️ Decoding Chip: MSTAR high-performance decoder
- ☑️ Projection Lens: High-transmittance coated lens
Power
- ☑️ Power Supply: 19V (8A) + 12V (3A)
- ☑️ Input Voltage: 100–240V AC, 50/60Hz
- ☑️ Maximum Power: 120W
Function Modules
- ☑️ DLP/DMD projector engine driver board
- ☑️ Complete DLP/DMD projection lens assembly
- ☑️ Interactive capture system with IR camera
- ☑️ Infrared remote control
- ☑️ USB file transfer
- ☑️ Ethernet connectivity
- ☑️ WiFi & Bluetooth support
- ☑️ Internal dual speakers + 3.5 mm audio output
Main Features
- ☑️ RGB colour mixing
- ☑️ Vertical keystone correction
- ☑️ Built-in Android board with four-corner correction
- ☑️ Electric focus
Content Management
- ☑️ Expandable memory card support
- ☑️ Built-in Android system board for image & video storage
- ☑️ Internal Storage: 16GB high-speed memory
- ☑️ Video compatibility: mp4, mov, avi, mpg and common formats
Connections
- ☑️ Power: 3-pin waterproof power in/out
- ☑️ USB: 1 × USB 2.0
- ☑️ Ethernet: Remote network transmission
Operating System
- ☑️ Android 7.1
Physical
- ☑️ Material: Die-cast aluminium
- ☑️ Colour: Grey
- ☑️ Protection: IP65 weather-resistant
- ☑️ Installation: Ceiling / Wall / Ground
- ☑️ Working Temperature: -25°C to +40°C
Weight & Dimensions
- ☑️ Net Weight: 8.75 kg
- ☑️ Gross Weight: 10.75 kg

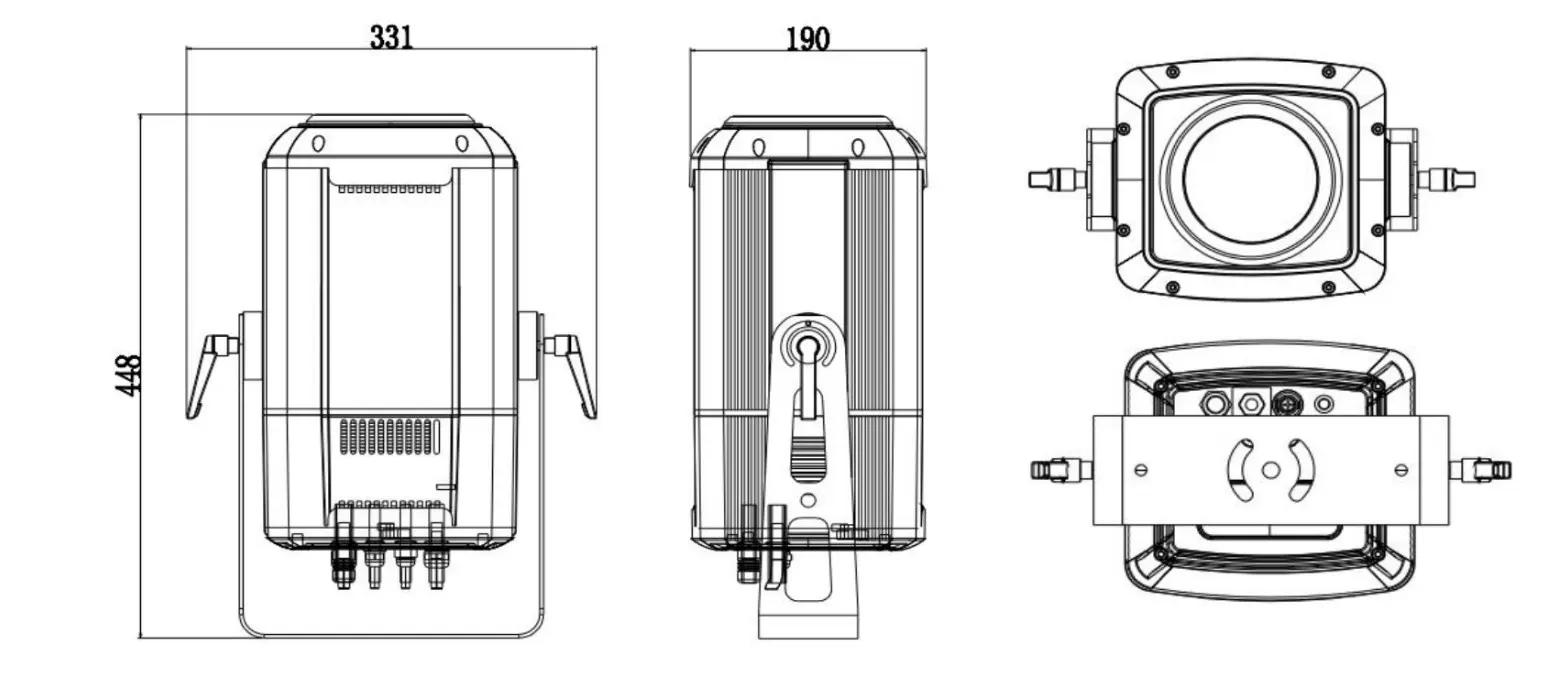

- ☑️ Dimensions: 190 × 331 × 448 mm
- ☑️ Package (1-in-1 carton): 545 × 435 × 290 mm
- ☑️ Package (4-in-1 flight case): 890 × 470 × 660 mm
Included Items
- ☑️ User manual
- ☑️ Power cable
- ☑️ Remote control for projector engine
- ☑️ Remote control for Android board
Applications
- ✅ Outdoor family entertainment & backyard cinema
- ✅ Interactive gaming zones & children’s play areas
- ✅ Retail advertising & brand activation
- ✅ Event projections, pop-up promotions & exhibitions
- ✅ Hospitality environments: cafés, resorts, theme parks
- ✅ Public spaces, museums, activity centres
Why Choose the Nebula 1000lm?
- ✅ True outdoor-ready design with IP65 protection
- ✅ High-brightness 1000lm output suitable for evening outdoor use
- ✅ Built-in interactive engine creates engaging visual experiences
- ✅ Supports both entertainment and professional advertising
- ✅ Powerful Android platform for content control
- ✅ Durable aluminium construction for long-term installations
