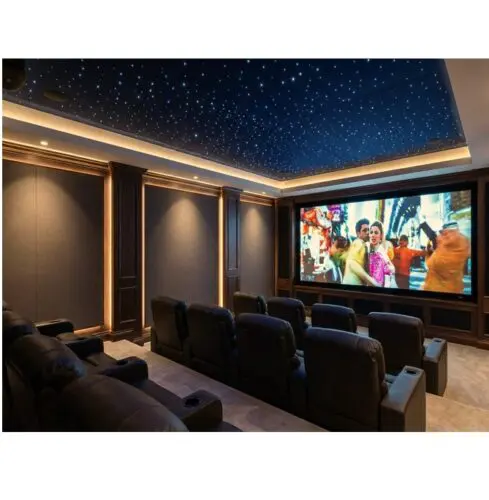

Infinity Fibre Optic Star Ceiling Panel System
Infinity Fibre Optic Star Ceiling Panel System
This is a magnetic fibre optic infinity star ceiling system, complete with a installation system grid track.

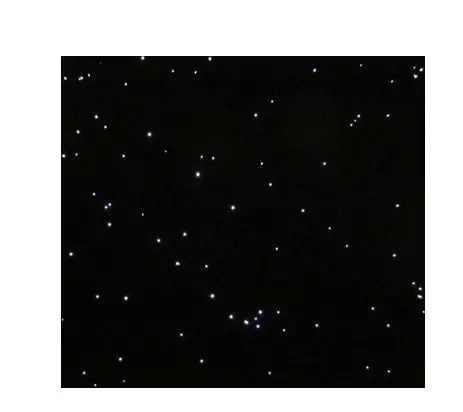

Individual panels have a bundle of 100 mixed diameter fibres 3.1.1 (0.50mm, 0.75mm, 1mm and 1.5mm) distributed in a natural star pattern across the face.

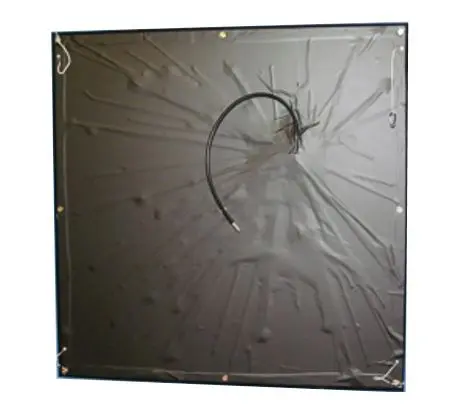

On the rear of the panel this bundle is connected via an optical joint with screwed coupling to a corresponding carrier tail connected to the light source.
- Panel specification: Panels: 1000 x 1000 x 10mm
- Material: Lightweight foam board.
- Face covering: Super black fabric.
- Weight: 4.5 kgs
- Total depth from ceiling using steel channel and magnets: 42mm
- Longest permissible carrier tail: 15 metres.
- Speaker/down-light cut-outs available: Yes
- Panels re-sizing: Yes
- Edge trim available: Yes
- NFPA fire rating – 0. No unusual hazard.
- Fibre optic sheath tails are extended from the harness/light source to the installed panels for ease of installation.
LED ML800 light source features a nice, very natural twinkle effect. A powerful compact DMX* capable light source for a range of duties including RGBW colour colour mixing together with the twinkle wheel. Complete with hand held remote control, however, please note that to access the full range of functionality this light source should be combined with home automation such as #RTI #Control4 or used with a DMX controller
What in the installation Kit?
- Infinity Panels
- 3m lengths of grid track
- LED fibre source – (Optional extra DMX interface (for control model)
Individual Panel Specification and Details:
- Magnetic strips on the back of the panels for easy installation
- 100 3.1.1 mixed size fibre optic stars per panel
- Panel Dimension: 1000 x 1000 x 10mm
- Material: Lightweight foam board
- Face covering: Black Molton fabric
- Weight: 5 kgs
- Total depth from ceiling using steel channel and magnets: 47mm
- Longest permissible carrier tail: 12 metres.
- Speaker/down-light cut-outs available: Yes
- NFPA fire rating – 0. No unusual hazard.
- Supply voltage: 240v ac via transformer 3-pin plug. (110v ac 2-pin available)
Unit input voltage: 12v dc via removable jack plug.
LED 10 watt cool white
Dimensions 165 x 115 x 80mm
Optical port internal diameter: 20mm
Weight 0.85kgs
Power consumption: 11 watts
Colour wheel: 6 colours including white
Twinkle wheel with clear section
Fibre capacity:
0.75 x 425 fibres
1.00 x 230 fibres
Cooling Fan: none
Heat radiation: light source case warm to the touch.
Warranty: 18 months. Commercial 12 months.
Manufacturer accreditation: ISO 9001
