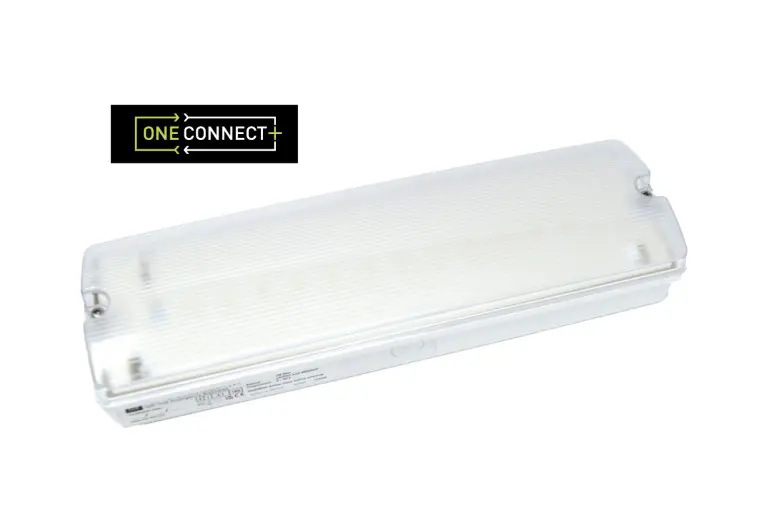

One-Lux Bulkhead™ X-RANGE™ (XBH) — LED Emergency Lighting Bulkhead
The One-Lux Bulkhead™ X-RANGE™ (XBH) is a robust LED emergency lighting bulkhead
designed for escape routes and anti-panic areas in commercial, industrial and public buildings.
With IP65 protection, industry-standard dimensions, and options for DALI-2, “One Connect+” Casambi
wireless or Silvair wireless Self-Test, it provides a flexible and durable solution for modern
emergency lighting schemes.
Source: One-Lux
Contact us for project quotations and trade discounts
Key Features
- ✅ X-RANGE™ LED emergency bulkhead suitable for escape routes and anti-panic areas.
- ✅ Available with DALI-2, “One Connect+” Casambi wireless or Silvair wireless Self-Test functionality.
- ✅ Maintained or non-maintained operation selectable to suit system requirements.
- ✅ Industry-standard size bulkhead for both new installations and retrofit projects.
- ✅ Wall mountable with multiple M20 cable entry points for flexible wiring.
- ✅ Uses the latest generation LEDs for efficient, long-life emergency illumination.
- ✅ Speedy maintenance and testing using the OLX-XRC remote control, compatible with all models.
- ✅ High ingress-protection rating IP65 for use in more demanding indoor or sheltered outdoor locations.

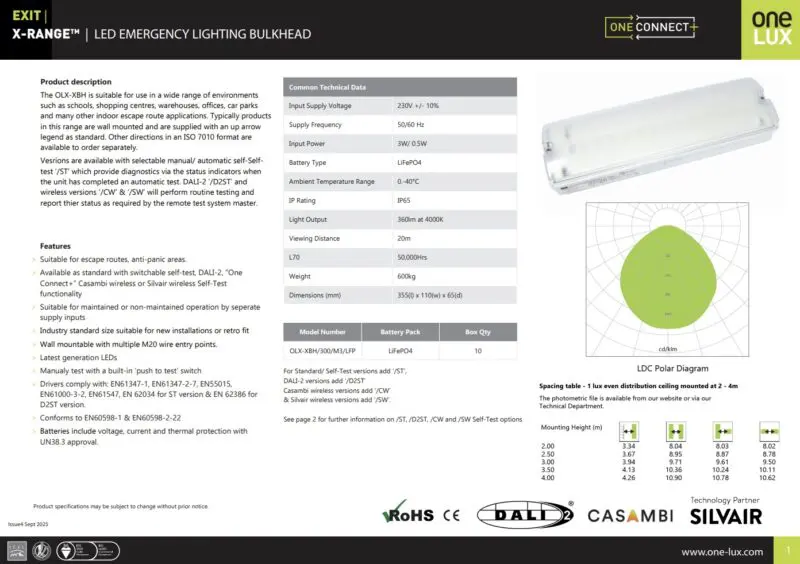

Technical Highlights
- 🔧 Input Supply Voltage: 230 V ±10 % 50/60 Hz
- 🔧 Input Power (Maintained / Non-maintained): 3 W / 0.5 W
- 🔧 Light Output: 360 lm (typical)
- 🔧 Colour Temperature: 4000 K
- 🔧 Battery Type: LiFePO₄ emergency battery
- 🔧 Operating Temperature Range: 0 – 40 °C
- 🔧 IP Rating: IP65
- 🔧 Weight: 0.6 kg (600 g)
Available Variants / Models
- OLX-XBH/300/M3/LFP — Manual Test bulkhead, LiFePO₄ battery, 3 hour duration (typical).
- OLX-XBH/300/M3/LFP/ST — Self-Test bulkhead, LiFePO₄ battery, 3 hour duration (typical).
- OLX-XBH/300/M3/LFP/D2ST — DALI Self-Test bulkhead, LiFePO₄ battery, 3 hour duration (typical).
- Further options available upon request:
- /CW — Casambi wireless
- /SW — Silvair wireless
Applications
- ✅ Escape routes and anti-panic areas in commercial, industrial and public buildings.:contentReference[oaicite:19]{index=19}
- ✅ Warehouses, plant areas, car parks, schools and offices requiring robust IP65 emergency bulkheads.
- ✅ Retrofit or replacement projects where an industry-standard bulkhead footprint is beneficial.:contentReference[oaicite:20]{index=20}
- ✅ Installations that benefit from remote testing and monitoring using OLX-XRC and Self-Test / DALI-2 / wireless options.:contentReference[oaicite:21]{index=21}
Why Choose the Bulkhead™ X-RANGE™ (XBH)?
- ✅ Combines IP65 protection, LiFePO₄ battery technology and latest-generation LEDs for long-life, low-maintenance emergency lighting.:contentReference[oaicite:22]{index=22}
- ✅ Industry-standard size and multiple cable entry points simplify installation and retrofit work.:contentReference[oaicite:23]{index=23}
- ✅ Advanced test options (Self-Test, DALI-2, Casambi, Silvair) and OLX-XRC remote make compliance checks faster and less disruptive.:contentReference[oaicite:24]{index=24}
