Description

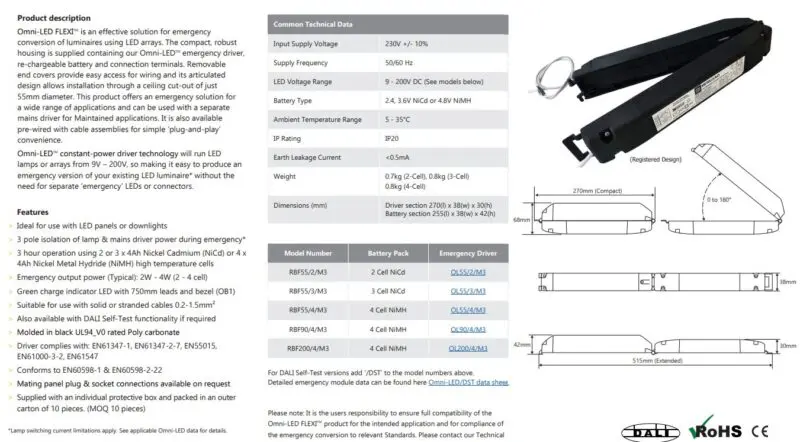

One-Lux Omni-LED FLEXI™ RBF Articulated LED Remote-Box Emergency Conversion Solution
The Omni-LED FLEXI™ RBF Articulated LED Remote-Box Emergency Conversion Solution is a versatile emergency lighting conversion module designed for LED panels, downlights and other luminaires, offering compact installation, articulated design and a range of battery and control-options to suit demanding applications.
Contact us for quotations and trade discount info
Key Features
- ✅ Articulated design allows installation through a ceiling cut-out of just 55 mm diameter.
- ✅ Compatible with DALI-2, “One Connect+” Casambi wireless or Silvair wireless self-test variants.
- ✅ Supports emergency operation for 3 hours using high-temperature NiCd, NiMH or LiFePO₄ battery technologies.
- ✅ Input supply voltage: 230 V ±10%, frequency 50/60 Hz.
- ✅ Output voltage range: 9 – 200 V DC.
- ✅ Designed and manufactured in Great Britain.
- ✅ Removable end-covers for easy wiring access; pre-wired cable assemblies available for plug-and-play convenience.
- ✅ Ideal for use with panels and downlights.
Available Variants / Models
-
Product Code Forward Voltage Range Battery Pack Output in Emergency (Typical) RBF55/3/M3 9–55V 3.6V 4.0Ah NiCd 3.4W RBF55/4/M3 9–55V 4.8V 4.0Ah NiMH 4.5W RBF90/4/M3 55–90V 4.8V 4.0Ah NiMH 4.0W RBF200/4/M3 90–200V 4.8V 4.0Ah NiMH 4.0W RBF55/3W/M3/LFP 9–55V 3.2V 4.4Ah LiFePO₄ 3W RBF55/4W/M3/LFP 9–55V 6.4V 3.6Ah LiFePO₄ 4W RBF80/2W/M3/LFP 55–90V 3.2V 3.6Ah LiFePO₄ 2W RBF90/4W/M3/LFP 55–90V 6.4V 3.6Ah LiFePO₄ 4W RBF200/4W/M3/LFP 90–200V 6.4V 3.6Ah LiFePO₄ 4W RBF230/5W/M3/LFP 90–230V 6.4V 3.6Ah LiFePO₄ 5W RBF230/8W/M3/LFP 90–230V 6.4V 3.6Ah LiFePO₄ 8W - ✅Model codes for forward voltage 9-55 V, 55-90 V and 90-200 V with battery options: NiCd, NiMH or LiFePO₄.
- ✅DALI Self‐Test, Casambi wireless and Silvair wireless options available.
- Choose and buy any highlighted options right here. Contact us for prices of other options.
Applications
- ✅ Emergency conversion of LED panels and downlights in commercial buildings.
- ✅ Integrated emergency lighting in architectural lighting systems requiring minimal ceiling-cut-out.
- ✅ Retrofit installations where compact emergency modules and wireless/self-test functionality are required.
Why Choose the Omni-LED FLEXI™?
- ✅ Minimal cut-out requirement (55 mm) means easy installation into existing ceilings.
- ✅ Fully featured with modern control options (DALI-2 or wireless) plus robust battery tech ensures compliance and longevity.
- ✅ Flexible forward-voltage range (9-200 V DC) accommodates varied luminaires and retrofit scenarios.
