Description
One-Lux Box™ X-RANGE™ (XMB) — LED Emergency Lighting Exit Box
The One-Lux Box™ X-RANGE™ (XMB) is a compact LED emergency exit box designed for escape routes and final exit signage in commercial and public buildings. Using latest-generation LEDs, LiFePO₄ battery technology and an industry-standard housing format, it is ideal for both new installations and retrofit projects. Available with DALI-2, “One Connect+” Casambi wireless or Silvair wireless Self-Test variants, it delivers reliable, easily tested emergency exit signage for modern systems. (Source: One-Lux)
Contact us for project quotations and trade discounts
Key Features
- ✅ LED emergency lighting exit box for escape routes and final exits.
- ✅ Available with DALI-2, “One Connect+” Casambi wireless or Silvair wireless Self-Test
functionality for modern monitoring and test reporting. - ✅ Industry-standard exit box format suitable for both new installations and retrofit applications.
- ✅ Latest generation LEDs provide efficient, long-life emergency signage illumination.
- ✅ Speedy maintenance and testing using the OLX-XRC remote control, compatible with all models.
- ✅ Supplied with up-arrow legend as standard; other legend directions in ISO 7010 format
available to order separately. - ✅ Suitable for maintained or non-maintained operation (M/NM) via dedicated supply inputs (2 W / 0.5 W).
- ✅ LiFePO₄ battery technology with typical 3-hour emergency duration and optimised lifecycle.
- ✅ Emergency exit signage for escape routes and final exits in indoor environments.
- ✅ Suitable for schools, shopping centres, warehouses, offices, car parks and other
public/commercial buildings. - ✅ Ideal for retrofit upgrades where an industry-standard exit box footprint is required.

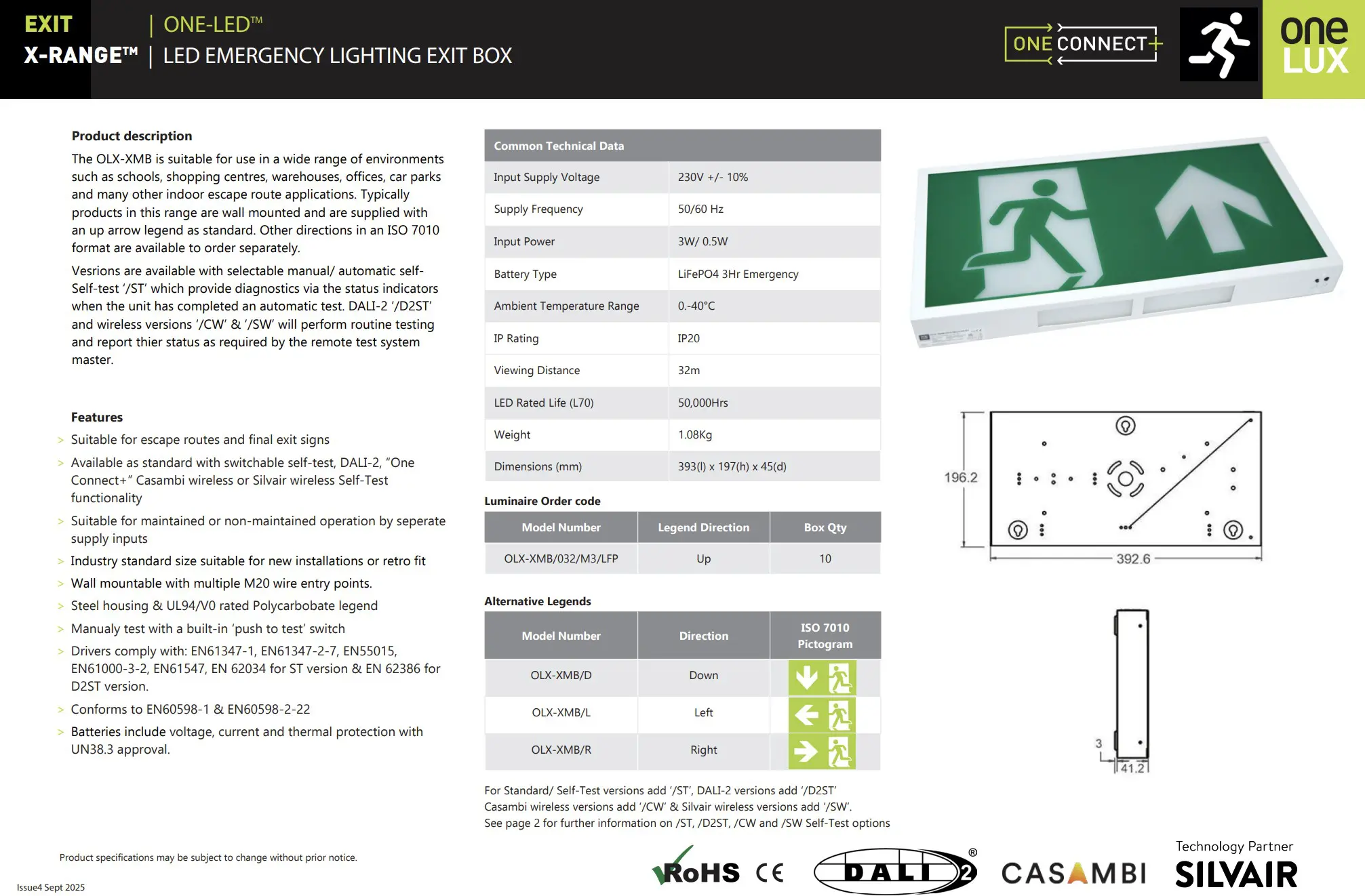

Technical Highlights
- 🔧 Input supply voltage: 230 V ±10 %, 50/60 Hz.
- 🔧 Input power (Maintained / Non-maintained): 2 W / 0.5 W.
- 🔧 Viewing distance: 32 m for clear, compliant escape-route identification.
- 🔧 Battery type: LiFePO₄ emergency battery pack.
- 🔧 Operating temperature range: 0 – 40 °C.
- 🔧 IP rating: IP20 — indoor applications.
- 🔧 Weight: approx. 1.08 kg.
Available Variants / Models
-
- ✅ OLX-XMB/032/M3/LFP — Manual Test, 32 m viewing distance, LiFePO₄ battery.
- ✅ OLX-XMB/032/M3/LFP/ST — Self-Test version, compatible with OLX-XRC remote control.
- ✅ OLX-XMB/032/M3/LFP/D2ST — DALI Self-Test version, compatible with OLX-XRC remote control.
- ✅ Order Alternative Legend Directions Separately ; Down, Left, Right
Why Choose the Box™ X-RANGE™ (XMB)?
- ✅ Combines a 32 m viewing distance with latest-generation LED technology for clear, compliant exit signage.:
- ✅ Fast, flexible testing via OLX-XRC remote control and optional Self-Test or DALI-2 connectivity
reduces disruption and maintenance effort. - ✅ Industry-standard box format simplifies both new projects and retrofits, minimising install time.
