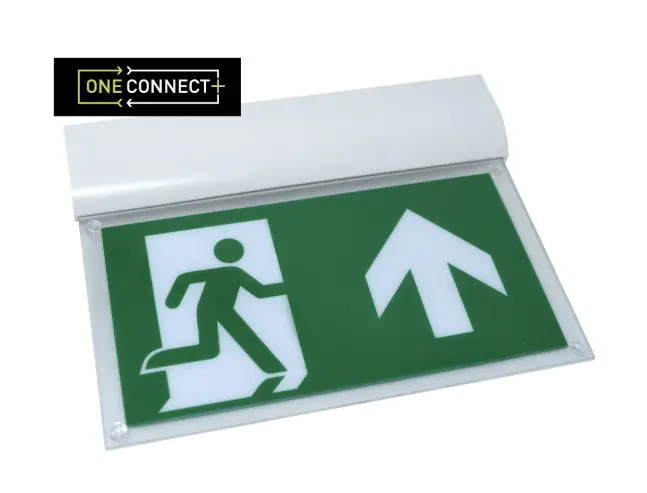

One-Lux OLX-XXB (X-RANGE™) — LED Emergency Exit Blade / Exit Luminaire
The One-Lux OLX-XXB (X-RANGE™) is a versatile LED emergency exit blade / exit luminaire,
designed for escape routes and final exit signage in a wide variety of indoor environments. With multiple
mounting options, selectable maintained or non-maintained mode, and support for self-test, DALI-2 or wireless
control variants, the XXB offers flexibility, compliance and low-maintenance reliability for commercial,
industrial and public building applications. (Source: One-Lux)
Contact us for project quotations and trade discounts
Key Features
- ✅ LED exit luminaire suitable for escape routes and final exit signs in indoor environments.
- ✅ Industry-standard format — easy to install in new builds or retrofit projects.
- ✅ Flexible mounting options: wall, ceiling surface, suspended or recessed mounting.
- ✅ Maintained or non-maintained operation — selectable on-board for compliance with building requirements.
- ✅ Comes with Up arrow legend by default; alternative arrow directions (Down / Left / Right) in ISO 7010 format included in pack.
- ✅ Available with manual test, self-test, DALI-2 or wireless Self-Test control variants, offering flexible testing and maintenance.
- ✅ Uses high-efficiency LEDs rated for 50,000 hours (L70) ensuring long service life and reliability.
- ✅ Suitable for a wide range of building types — offices, warehouses, schools, car parks, retail centres and more.
Technical Highlights
- 🔧 Input Supply Voltage: 230 V ± 10 %, 50/60 Hz
- 🔧 Input Power (Maintained / Non-Maintained): 2 W / 0.5 W
- 🔧 Viewing Distance: 24 m for clear exit signage visibility.
- 🔧 Battery Type: LiFePO₄ emergency battery pack.
- 🔧 Operating Temperature Range: 0 °C – 40 °C
- 🔧 IP Rating: IP20 — suited for indoor use.
- 🔧 Weight: ≈ 1 kg
Available Variants / Models
- OLX-XXB/024/M3/LFP — Standard manual-test LED exit blade with LiFePO₄ battery and Up-arrow legend.
- OLX-XXB/024/M3/LFP/ST — Self-Test version enabling automatic periodic tests and status diagnostics.
- OLX-XXB/024/M3/LFP/D2ST – DALI-2 Self-Test enabling automatic periodic tests and status diagnostics through DALI
- Contact us for other versions supporting test control and monitoring, /CW (Casambi wireless), and /SW (Silvair wireless).
Applications
- ✅ Escape routes and final exits in commercial, retail, industrial and public buildings.
- ✅ Schools, warehouses, offices, car parks, shopping centres where robust, code-compliant exit signage is required.
- ✅ New build installations or retrofit upgrades, thanks to the industry-standard exit box format and flexible mounting options.
- ✅ Projects requiring low-maintenance or automated testing (Self-Test / DALI-2 / wireless), for ease of facility management and compliance.
Why Choose the OLX-XXB (X-RANGE™)?
- ✅ Combines flexibility and compliance — multiple mounting methods and maintained/non-maintained operation to suit building codes.
- ✅ High-quality LEDs with long service life and low maintenance requirements.
- ✅ Fully compatible with modern emergency control options: Self-Test, DALI-2 or wireless — great for modern building management systems.
- ✅ Supplied with full set of directional legends (Up, Down, Left, Right) — ready to deploy for any escape-route configuration.
- ✅ Lightweight (≈ 1 kg) and easy to install — ideal for both new construction and retrofit upgrades.View the full OLX-XXB product page on One-Lux.com
