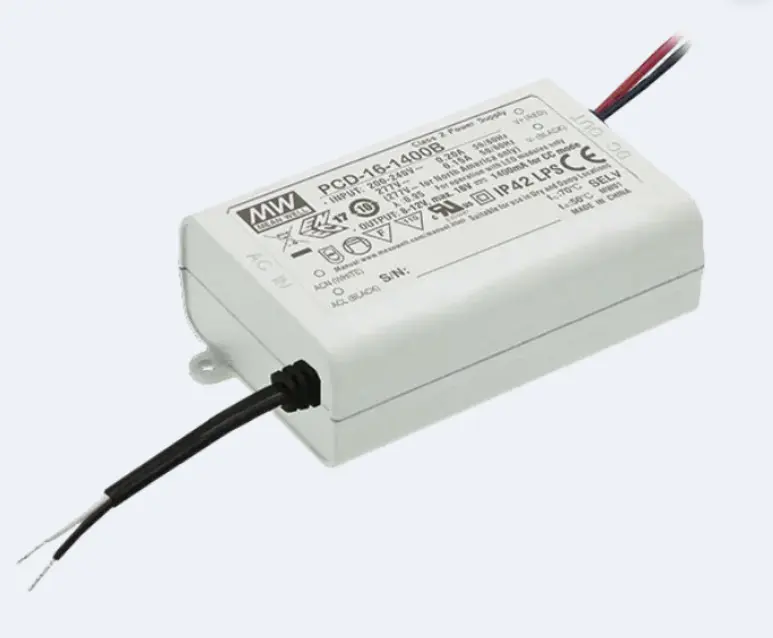

Mean Well PCD-16 LED Driver – 16W TRIAC-Dimmable Constant Current Driver

Description

Mean Well PCD-16 LED Driver – 16 W TRIAC-Dimmable Constant Current

Call for project quotations and trade discounts

The Mean Well PCD-16 Series is a compact 16 W TRIAC-dimmable constant current LED driver with active PFC and Class II/IP42 construction. Available in Type A (90–135 VAC) and Type B (180–295 VAC), it delivers quiet, flicker-free dimming for retail, decorative and advertisement lighting.

Key Features:

• ✅ Dimming: AC phase-cut (TRIAC), leading & trailing edge
• ✅ Electrical: Built-in active PFC; short-circuit & over-temperature protection
• ✅ Construction: Class II, IP42, convection-cooled
• ✅ Input Options: Type A 90–135 VAC / Type B 180–295 VAC

Voltage Output Options (by model):

• ☑️ PCD-16-350: 24–48 V
• ☑️ PCD-16-700: 16–24 V
• ☑️ PCD-16-1050: 12–16 V
• ☑️ PCD-16-1400: 8–12 V

Applications:

• ✅ LED decorative & advertisement fixtures
• ✅ Retail display, accent & cove lighting
• ✅ Compact downlights

Available Models:

• PCD-16-350 (Type A / Type B)
• PCD-16-700 (Type A / Type B)
• PCD-16-1050 (Type A / Type B)
• PCD-16-1400 (Type A / Type B)

Why Choose the Mean Well PCD-16?

• ✅ Seamless phase-cut dimming in a compact 84×57×29.5 mm housing
• ✅ Robust protections and stable operation
• ✅ 3-year warranty backed by Mean Well

View manufacturer page on MeanWell.com
