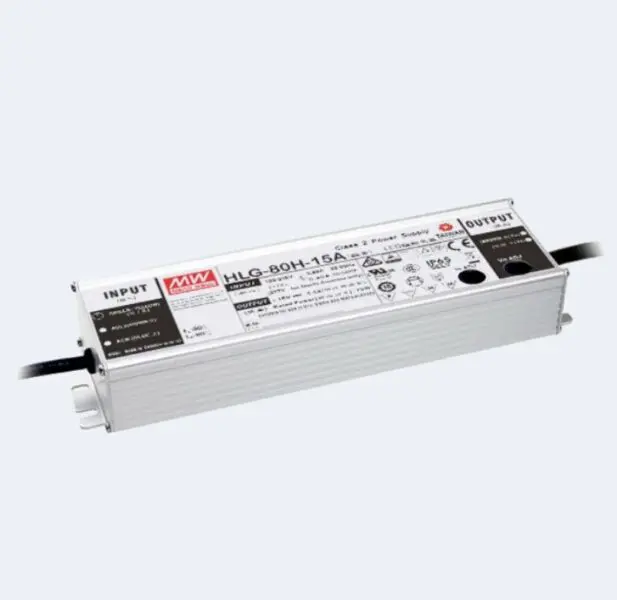

Mean Well HLG-80H LED Driver (80 W) — Constant Voltage + Constant Current / Dimmable / IP65-IP67
The Mean Well HLG-80H Series is an 80 W dual-mode (CV + CC) LED driver with selectable output voltage models and optional dimming/adjustment features. Ideal for LED lighting systems requiring higher wattage than the 60 W class. (Please check manufacturer datasheet for exact output voltage options.)
Call for project quotations and trade discounts
Key Features
- ✅ Dual-mode (CV + CC) output
- ✅ Universal AC input: 90 – 305 VAC
- ✅ High efficiency (≈ 90 %+)—check variant
- ✅ IP65 / IP67 rated metal housing — suitable for outdoor use
- ✅ Free-air convection cooling (fan-less)
- ✅ Protections: short-circuit, over-current, over-voltage, over-temperature
Available Output Voltages / Models
- ☑️ 12 V (HLG-80H-12A)
- ☑️ 15 V (HLG-80H-15A)
- ☑️ 20 V (HLG-80H-20A)
- ☑️ 24 V (HLG-80H-24A)
- ☑️ 30 V (HLG-80H-30A)
- ☑️ 36 V (HLG-80H-36A)
- ☑️ 42 V (HLG-80H-42A)
- ☑️ 48 V (HLG-80H-48A)
- ☑️ 54 V (HLG-80H-54A)
Applications
- ✅ Mid-power LED signage, strips
- ✅ Architectural accent & facade lighting
- ✅ Outdoor LED luminaires in wet/damp locations
Why Choose the HLG-80H Series?
- ✅ Higher wattage option in the HLG-H family
- ✅ Maintains robustness and IP ingress protection of Mean Well outdoor drivers
View manufacturer page on MeanWell.com
| MODEL | HLG-80H-12 | HLG-80H-15 | HLG-80H-20 | HLG-80H-24 | HLG-80H-30 | HLG-80H-36 | HLG-80H-42 | HLG-80H-48 | HLG-80H-54 |
|---|---|---|---|---|---|---|---|---|---|
| DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 7.2 ~ 12V | 9 ~ 15V | 12 ~ 20V | 14.4 ~ 24V | 18 ~ 30V | 21.6 ~ 36V | 25.2 ~ 42V | 28.8 ~ 48V | 32.4 ~ 54V |
| RATED CURRENT | 5A | 5A | 4A | 3.4A | 2.7A | 2.3A | 1.95A | 1.7A | 1.5A |
| RATED POWER | 60W | 75W | 80W | 81.6W | 81W | 82.8W | 81.9W | 81.6W | 81W |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p |
| VOLTAGE ADJ. RANGE | |||||||||
| 10.8 ~ 13.5V | 13.5 ~ 17V | 17 ~ 22V | 22 ~ 27V | 27 ~ 33V | 33 ~ 40V | 38 ~ 46V | 43 ~ 53V | 49 ~ 58V | |
| CURRENT ADJ. RANGE | |||||||||
| 3 ~ 5A | 3 ~ 5A | 2.4 ~ 4A | 2.04 ~ 3.4A | 1.62 ~ 2.7A | 1.38 ~ 2.3A | 1.17 ~ 1.95A | 1.02 ~ 1.7A | 0.9 ~ 1.5A | |
