Datasheet
Description

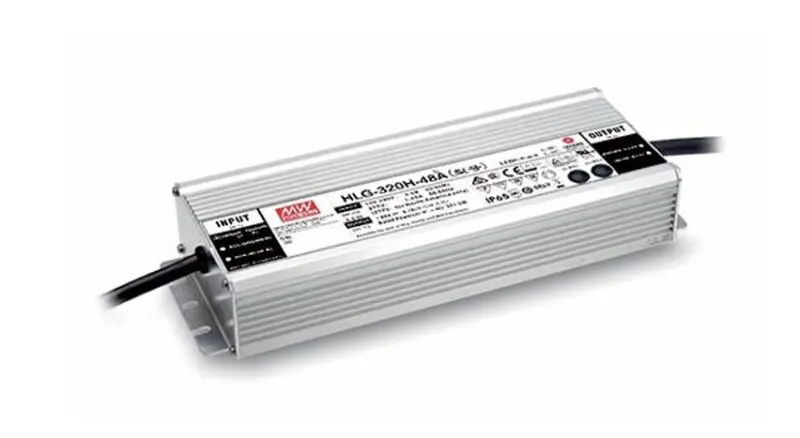

Mean Well HLG-320H LED Driver (320 W) — Constant Voltage + Constant Current / Dimmable / IP65-IP67
The Mean Well HLG-320H Series is a 320 W dual-mode (CV + CC) LED driver with models offering output voltages from 12 V up to 54 V and efficiency up to ~94%. Suitable for large outdoor lighting systems, street lighting, industrial LED arrays and more.
Call for project quotations and trade discounts
Key Features
- ✅ Dual-mode (CV + CC) output supporting multiple voltage options.
- ✅ Universal AC input: 90 – 305 VAC.
- ✅ Up to ~94 % efficiency.
- ✅ IP65/67 metal housing, fanless cooling.
- ✅ Robust protections: short-circuit, over-current, over-voltage, over-temperature.
Available Output Voltages / Models
- ☑️ 12 V (HLG-320H-12A)
- ☑️ 15 V (HLG-320H-15A)
- ☑️ 20 V (HLG-320H-20A)
- ☑️ 24 V (HLG-320H-24A)
- ☑️ 30 V (HLG-320H-30A)
- ☑️ 36 V (HLG-320H-36A)
- ☑️ 42 V (HLG-320H-42A)
- ☑️ 48 V (HLG-320H-48A)
- ☑️ 54 V (HLG-320H-54A)
Available Output Voltage Options
- ☑️ 12 V (HLG-320H-12)
- ☑️ 15 V (HLG-320H-15)
- ☑️ 20 V (HLG-320H-20)
- ☑️ 24 V (HLG-320H-24)
- ☑️ 30 V (HLG-320H-30)
- ☑️ 36 V (HLG-320H-36)
- ☑️ 42 V (HLG-320H-42)
- ☑️ 48 V (HLG-320H-48)
- ☑️ 54 V (HLG-320H-54)
Dimming Options
- ☑️A – Non-Dimmable Ampage and Voltage adjustable through built-in potentiometer
- ☑️AB – Ampage and Voltage adjustable through built-in potentiometer and 3 in 1 dimming function (1-10VDC, 10V PWM signal and resistance)
- ☑️B – 3 in 1 dimming function (1-10VDC, 10V PWM signal and resistance)
Applications
- ✅ Street lighting, large-scale outdoor luminaires
- ✅ Industrial LED arrays and architectural lighting installations
- ✅ High-power indoor/outdoor LED system requiring robust transformerless driver
Why Choose the HLG-320H Series?
- ✅ High-wattage driver option within the HLG-H family for demanding LED loads
- ✅ Excellent efficiency (~94%) for lower losses in large systems
- ✅ Maintains IP-rated build quality and cooling methods typical of Mean Well outdoor drivers
View manufacturer page on MeanWell.com
Additional information
| Weight | 1.88 kg |
|---|---|
| Dimensions | 252 × 90 × 43.8 mm |
| Voltage | 12 Volt, 15 Volt, 20Volt, 24 Volt, 30Volt, 36 Volt, 42Volt, 48 Volt, 54Volt |
| Wattage | 320W |
| Dimming | A – Non-Dimmable, AB – Voltage Current Adjustable + 3 in 1 Dimming, B – 3 in 1 Dimming |
| IP Rating | IP65 |
