Description

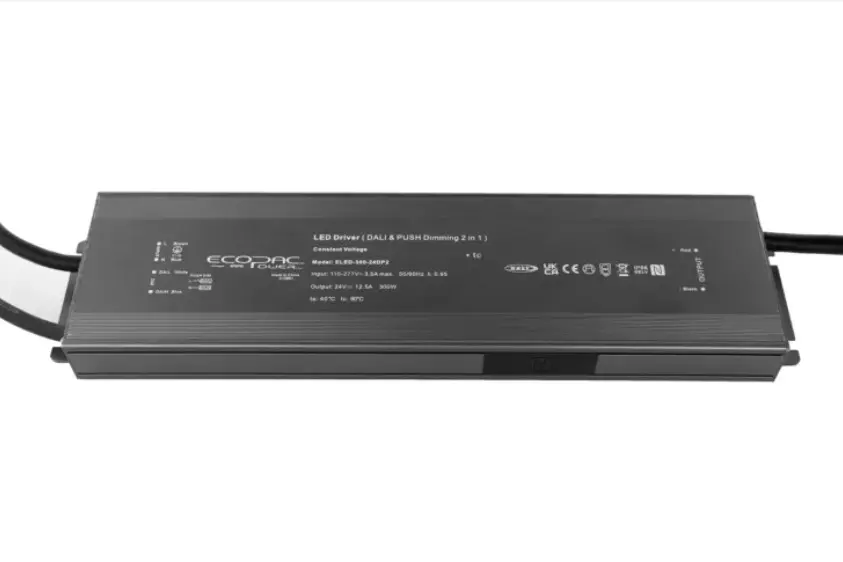

ELED-480-DP2 LED Driver – 480W DALI/PUSH Dimmable Constant Voltage
Call for project quotations and trade discounts
The ELED-480-DP2 Series is a powerful 480W constant voltage LED driver offering advanced DALI and PUSH dimming control. Designed for large-scale commercial and architectural LED lighting systems, it provides exceptional performance, stability, and flicker-free dimming across high-power installations.
Key Features:
- ☑️ Power Output: 480W
- ☑️ Input Voltage: 200–240VAC, 47–63Hz
- ☑️ Output Voltage Options: 12V (ELED-480-DP2-12) / 24V (ELED-480-DP2-24)
- ☑️ Dimming: DALI & PUSH dimmable, 0–100% smooth control
- ☑️ Efficiency: Up to 90%
- ☑️ Protections: Short circuit / overload / over-temperature
- ☑️ Cooling: Free air convection
- ☑️ Warranty: 3 years
Applications:
- ☑️ High-output LED strip lighting systems
- ☑️ Architectural façades and outdoor features (in protected enclosures)
- ☑️ Retail, hospitality, and large exhibition installations
Available Models:
- ELED-480-DP2-12 – 12V output
- ELED-480-DP2-24 – 24V output
Why Choose the ELED-480-DP2?
- ✅ Delivers up to 480W of power for large and high-density LED projects
- ✅ Advanced DALI/PUSH dimming for total lighting control integration
- ✅ High efficiency and thermal reliability for 24/7 installations
- ✅ Engineered by Ecopac with professional-grade performance and support
