Sonance K1 In-Ceiling Cinema Bundle With VX66Rs Round Speakers and S10i Active Subwoofer

Sonance K1 In-Ceiling Cinema Bundle with VX66Rs Round Speakers and S10i Active Subwoofer

The Sonance K1 In-Ceiling Cinema Bundle is a premium 5.1 surround sound system designed for exceptional in-ceiling performance.
It includes five VX66R round speakers from the Visual Experience Series and one S10i 10″ Active Subwoofer, delivering a powerful, immersive cinematic experience for both music and movies.

Call for project quotations and trade discounts

Key Features

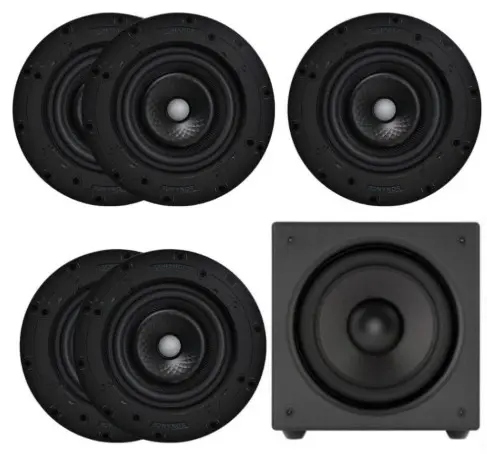

• ✅ Configuration: 5 × VX66R ceiling speakers + 1 × S10i active subwoofer
• ✅ System Type: Complete 5.1 surround system for in-ceiling installation
• ✅ Design: Minimalist, compact, and visually discreet with round micro-trim grilles
• ✅ Grille Options: Optional square adaptors to match ceiling design
• ✅ Performance: Excellent frequency response with powerful, detailed bass
• ✅ Installation: Simple to install with pivoting woofers and tweeters for directional control

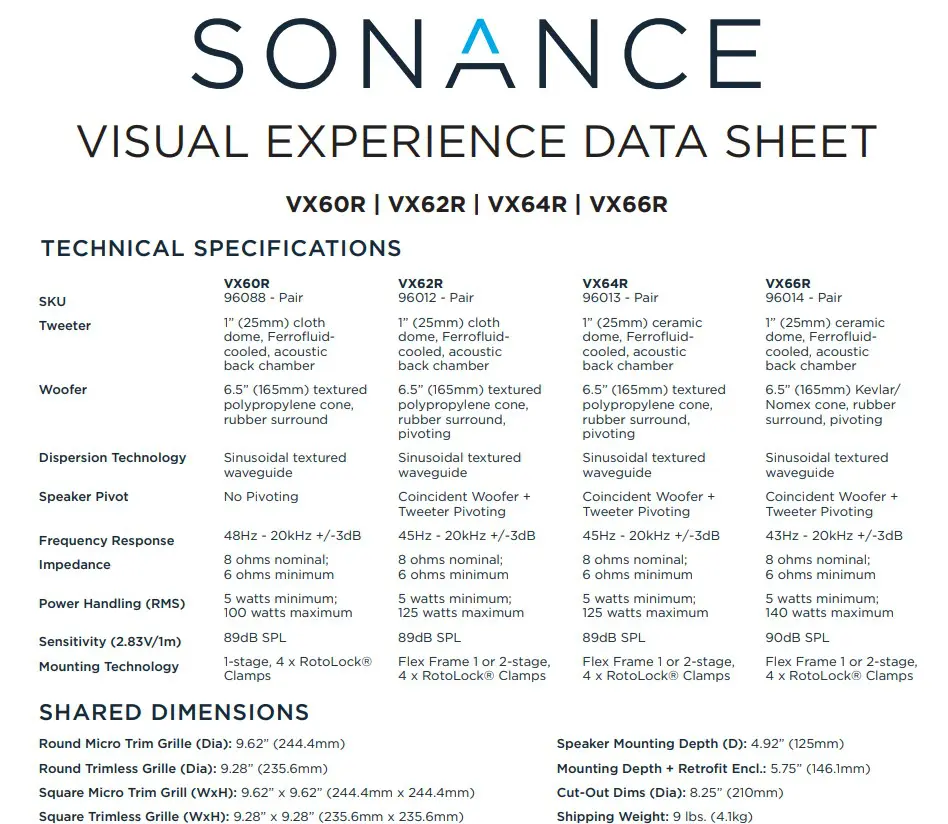

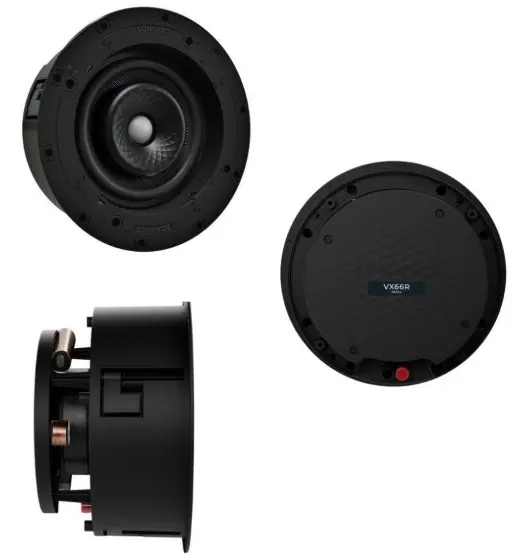

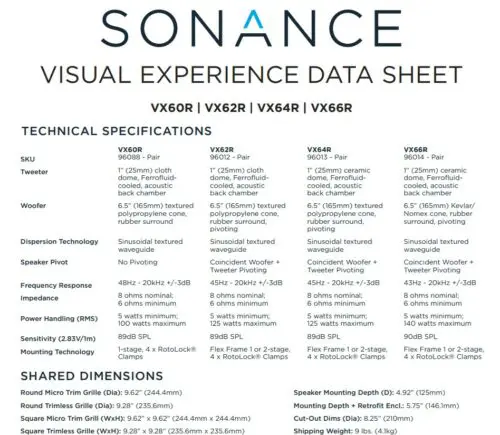

Speaker Specifications – SON-VX66R

• ☑️ Tweeter: 25 mm / 1″ ceramic dome, Ferrofluid cooled, with acoustic back chamber
• ☑️ Woofer: 165 mm / 6.5″ Kevlar Nomex cone, rubber surround
• ☑️ Frequency Response: 43 Hz – 20 kHz ±3 dB
• ☑️ Impedance: 6 Ω minimum
• ☑️ Power Handling: 5 W – 140 W
• ☑️ Sensitivity: 90 dB SPL (2.83 V/1 m)
• ☑️ Mounting Depth: 125 mm / 4.92″
• ☑️ Dimensions: Grille – 244.4 mm / 9.62″ | Cut Out – 210 mm / 8.25″
• ☑️ Weight: TBC

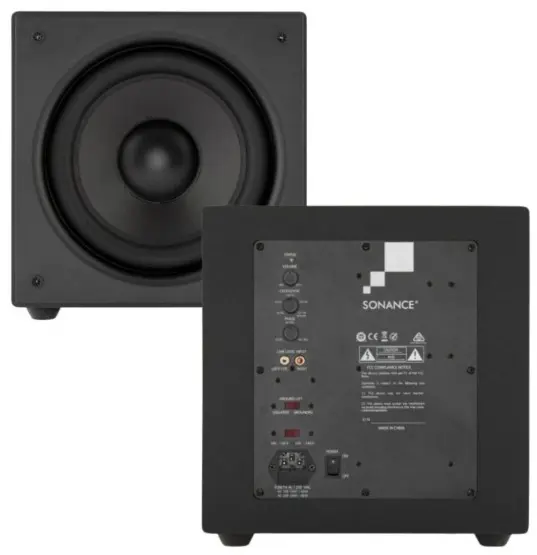

Subwoofer Specifications – SON-S10i

• ☑️ Driver: 10″ sealed-enclosure design
• ☑️ Frequency Response: 27 Hz – 250 Hz
• ☑️ Phase Control: 0° – 180°
• ☑️ Amplifier Power Output: 275 W RMS
• ☑️ Peak Power Handling: 550 W
• ☑️ Connections: Line-level input (L/R) – 2 × RCA phono
• ☑️ Finish: Black cabinet with textured finish
• ☑️ Grille: Black cloth
• ☑️ Dimensions: Height – 300 mm (310 mm with feet) | Width – 300 mm | Depth – 320 mm
• ☑️ Weight: 17.24 kg / 38 lb

Applications

• ✅ Home cinema installations
• ✅ Architectural and multi-room audio systems
• ✅ Luxury residential and entertainment spaces

Why Choose the Sonance K1 Bundle?

• ✅ Professional-grade in-ceiling surround sound
• ✅ Pivoting drivers for precise directional audio
• ✅ Deep, controlled bass from the compact S10i subwoofer
• ✅ Aesthetically clean design that blends seamlessly with ceilings
• ✅ Trusted Sonance engineering for reliability and sound clarity

Please note: Optional square adaptors and grilles are available to align round speakers with square ceiling features.
Specifications subject to change without notice. All rights reserved.
