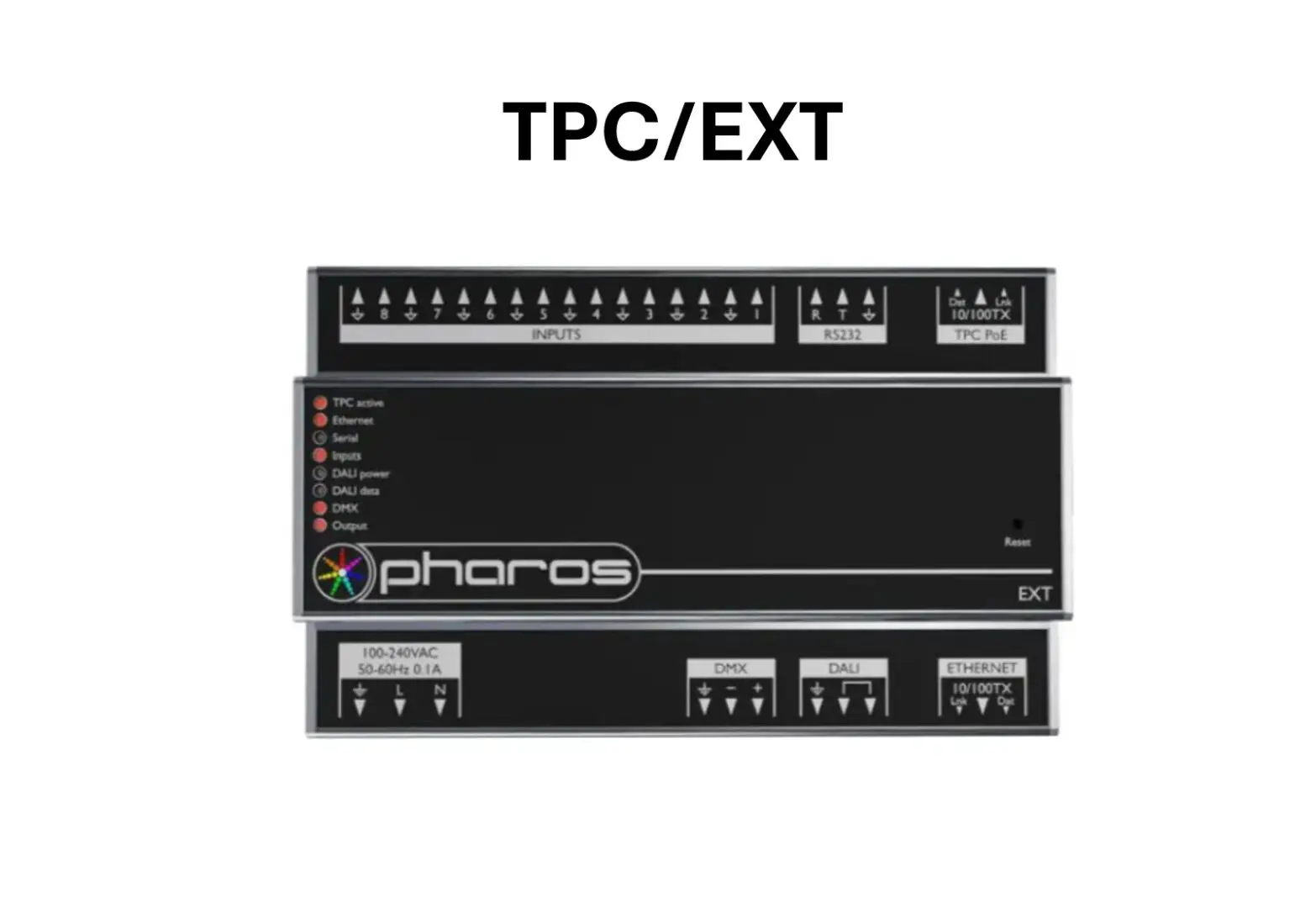

Pharos Designer EXT – TPC Extension

The Pharos Designer EXT is an extension module designed to work with the Pharos TPC (Touch Panel Controller), transforming it into a standalone, mains-powered lighting control system with versatile output and integration options.

While the TPC provides powerful Ethernet-based lighting control and integration, many lighting installations require direct DMX or DALI outputs without complex network infrastructure. The EXT module solves this by providing local DMX and DALI interfaces, along with additional hardware control connections and power supply.

Together, the TPC and EXT create a compact yet powerful solution for architectural lighting control, show control, and automation projects.

Key Features

✅ Direct DMX512 output with RDM support
✅ DALI bus interface for lighting control and triggering
✅ Supplies power and communication to the connected TPC
✅ RS232 serial interface for system integration
✅ 8 digital / analogue inputs for triggering and automation
✅ Internal universal mains power supply
✅ Compact DIN-rail mounted enclosure
🛡 5-year manufacturer warranty

Seamless Programming

The EXT module is programmed directly through:

• Pharos Designer 2

Within the software, the EXT appears as a native extension of the TPC, allowing users to configure outputs, triggers, and control logic as part of a single integrated project.

DMX & RDM Control

The EXT includes a DMX512 output port, allowing the TPC to control DMX lighting fixtures directly.

Capabilities include:

• Standard DMX512 output

• RDM discovery and device addressing

• Control of LED fixtures, dimmers, and DMX devices

DALI Lighting Integration

The EXT also provides a DALI bus interface, enabling control of DALI-compatible luminaires.

Features include:

• Direct DALI lighting control

• Triggering events based on DALI messages

• Integration into automated lighting scenes

Expanded Control Interfaces

To support complex installations, the EXT adds several additional hardware interfaces to the TPC system:

RS232 Serial Port

• Integration with third-party systems

• Control of AV and automation devices

Digital / Analogue Inputs

• 8 configurable inputs

• Ideal for sensors, switches, and external triggers

Networking & System Integration

The EXT integrates seamlessly with other lighting systems from Pharos Controls, including:

• Pharos Designer Controllers

• Remote devices and network nodes

• Ethernet-based lighting systems

Multiple devices can operate together across an Ethernet network, enabling scalable lighting control solutions.

Certifications

• CE compliant

• UKCA compliant

• ETL / cETL listed

• Compatible with Title 24 compliant lighting control systems

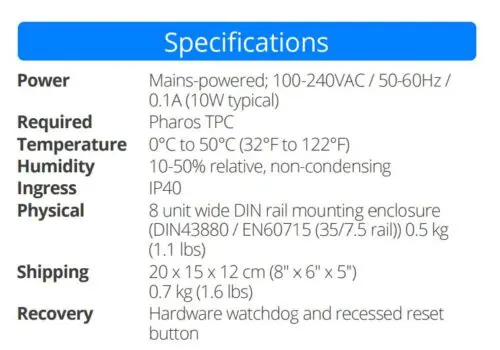

Power Requirements

Input Voltage:
100–240V AC

Frequency:
50–60 Hz

Power Consumption:
10 W typical

Connections use installer-friendly 5.08 mm plug-in rising clamp connectors.

Environmental Specifications

Operating Temperature
0°C – 50°C (32°F – 122°F)

Humidity
10–50% relative humidity (non-condensing)

Ingress Protection
IP40

Data Storage

The system uses a removable SD card for show files, configuration, and media storage.

Physical Specifications

TPC Controller

Wall-mounted touch panel
Partly recessed installation

Compatible with:

• UK 2-gang 35mm back boxes

• Custom US 2.5″ back boxes

Dimensions

14.6 × 8.6 × 3.2 cm
(5.8 × 3.4 × 1.3 in)

Weight

0.25 kg (0.55 lbs)

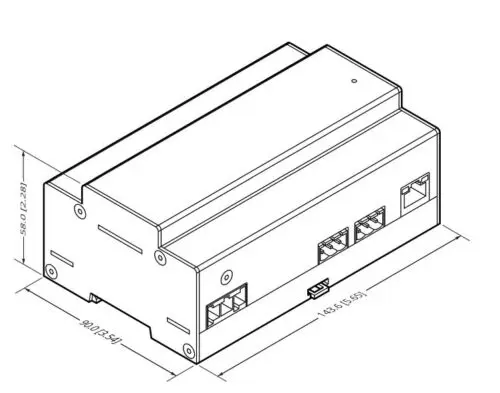

EXT Module

DIN-rail mounted enclosure
(DIN43880 / EN60715 – 35mm rail)

Dimensions

14.4 × 9 × 5.8 cm
(5.7 × 3.5 × 2.3 in)

Weight

0.5 kg (1.1 lbs)

Reliability & Recovery

The EXT module includes:

• Hardware watchdog protection

• Recessed reset button for recovery

Designed as a solid-state, instant-on system for reliable long-term installations.

Warranty

🛡 5-Year Manufacturer Warranty
