Description

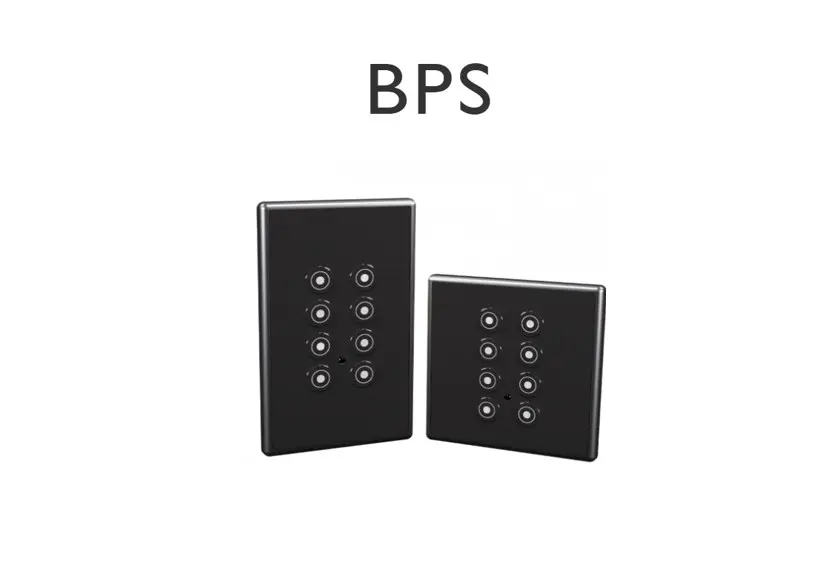

Pharos Designer BPS (Button Panel Station)

The Pharos Designer BPS is a stylish and versatile eight-button wall station designed to work seamlessly with any Pharos Designer Controller. Each button features integrated LED indicators and fully programmable functionality, allowing users to trigger lighting scenes, timelines, and system actions.

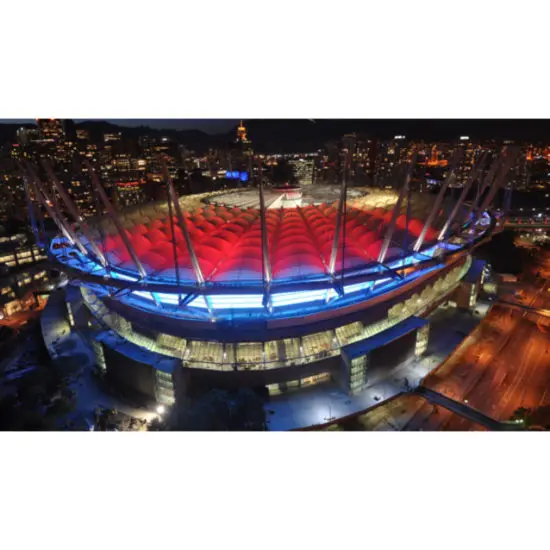

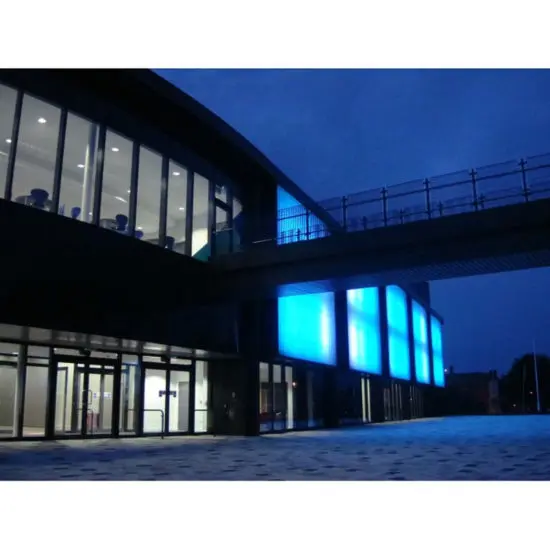

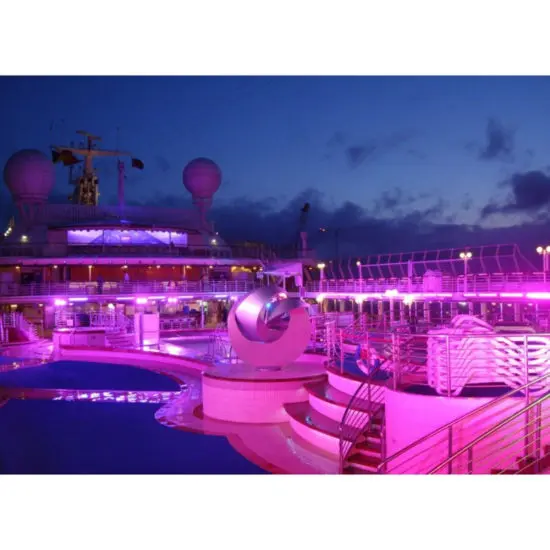

Designed for architectural and entertainment lighting installations, the BPS combines sleek design, simple installation, and flexible control in a compact wall-mounted interface.

The BPS is supported by controllers running **Pharos Designer 2 software version 2.0 or later.

Key Features

✅ Eight freely programmable buttons
✅ Integrated LED indicators for visual feedback
✅ Single cable installation using Power-over-Ethernet (PoE)
✅ Ultra-slim bezel with hidden fixings
✅ Available in multiple finishes
✅ Compatible with both UK and US wall back boxes
✅ 5-year manufacturer warranty

Sleek Architectural Design

The BPS features a low-profile bezel only 5.5 mm thick, creating a modern and discreet appearance on the wall.

A magnetic embossed overlay sits within the bezel to provide a clean finish with no visible screws or fixings.

Both the bezel and overlay are available in a range of colour finishes, allowing the panel to blend seamlessly into architectural environments.

Button Control

Each of the 8 buttons can be programmed for a wide range of functions including triggering lighting scenes, starting timelines, or controlling system actions.

The controller recognises multiple button interactions:

• Press

• Hold

• Repeat

• Release

This allows designers to create advanced control behaviours from a simple interface.

LED Feedback

Every button includes a white LED indicator with fully adjustable brightness.

Visual effects include:

• Fade transitions

• Slow flashing

• Fast flashing

• Ramp effects

These LEDs provide clear user feedback for scene status or system operation.

Power over Ethernet (PoE)

The BPS is powered using Power-over-Ethernet (IEEE 802.3af Class 1), meaning installation requires only a single Ethernet cable to provide both power and communication.

This allows the panel to be installed in remote locations without additional power supplies.

Certifications

• CE compliant

• UKCA compliant

• ETL / cETL listed

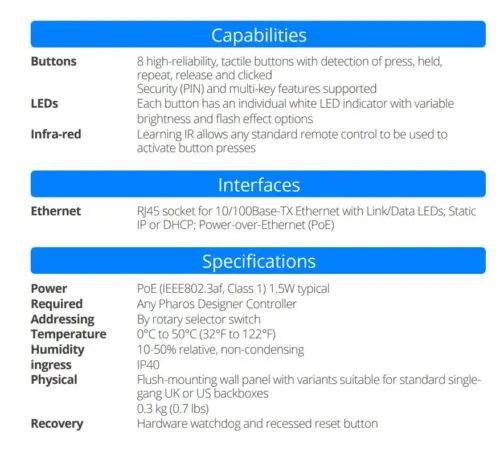

Technical Specifications

Power
PoE (IEEE 802.3af, Class 1)
Typical consumption: 1.5 W

Required Controller
Any compatible Pharos Designer Controller

Configuration Software
Pharos Designer 2 version 2.0 or later

Addressing
Rotary selector switch

Environmental Specifications

Operating Temperature
0°C – 50°C (32°F – 122°F)

Humidity
10–50% relative humidity (non-condensing)

Ingress Protection
IP40

Physical Specifications

Flush-mount wall panel designed for standard single-gang electrical back boxes.

UK Version

• 8.6 × 8.6 × 3.2 cm

• 3.4 × 3.4 × 1.3 in

US Version

• 7 × 11.5 × 3.2 cm

• 2.8 × 4.5 × 1.3 in

Weight

• 0.3 kg (0.7 lbs)

Shipping Information

Package dimensions:

• 20 × 15 × 12 cm

• 8 × 6 × 5 in

Shipping weight:

• 0.5 kg (1.1 lbs)

Reliability & Recovery

The BPS includes:

• Hardware watchdog protection

• Recessed reset button for recovery

Warranty

🛡 5-Year Manufacturer Warranty
