Description
DALI DIN rail SR-2302DIN 4x5Amp Constant Voltage Decoder
Call for project and trade discounts.
This DALI DIN rail mounted controller is designed in full compliance with the standard DALI protocol, ensuring seamless integration with modern lighting systems. The unit allows for flexible addressing, either through manual assignment displayed on its clear numeric digital screen or via automatic configuration by master controllers. Each address can operate synchronously, providing reliable communication across the network. With advanced logarithmic dimming technology, the controller delivers smooth and precise dimming performance from 0% to 100%, enabling comfortable and efficient lighting control. In addition, these decoders are fully compatible with leading systems such as Lutron, Rako, and Mode, making them a versatile solution for both residential and commercial lighting projects.
- Part No. : SR-2302DIN
- Input Voltage : 12-36VDC
- Output Current : 4CH, 5A/CH
- Output Power : 12v=240-24v=720W
- Output type : Constant Voltage

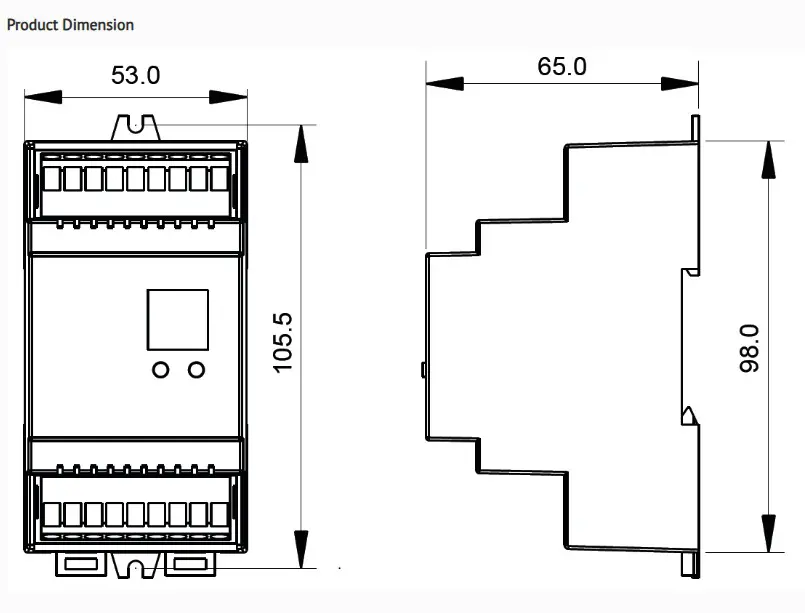

- Dimension (mm) : 65*106*53
- DALI certified.
- TUV CE certified.
- Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
- DALI address can be manually assigned and shown in numeric digital display or automatically assigned by master controller.
- 1 DALI address, 4 channels work synchronously.
- 0%-100% dimming range via logarithmic characteristic, perfect for human’s vision.
- To work with LED lights to establish DALI lighting system.
- To work with power repeater to expand output unlimitedly.
- Din rail mounted DALI dimmer.
