Description

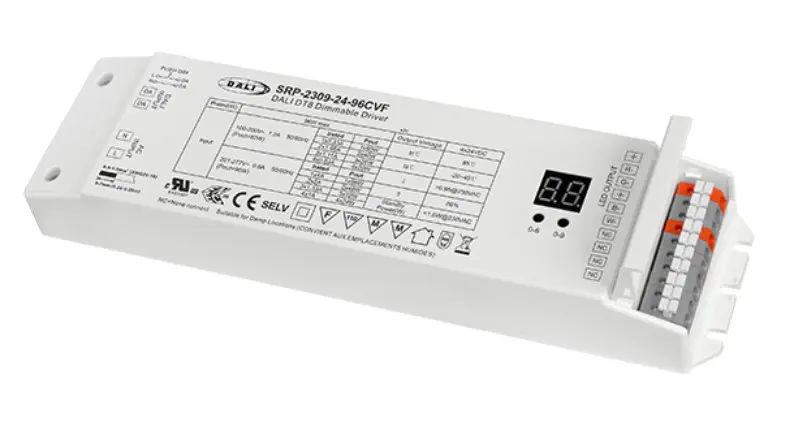

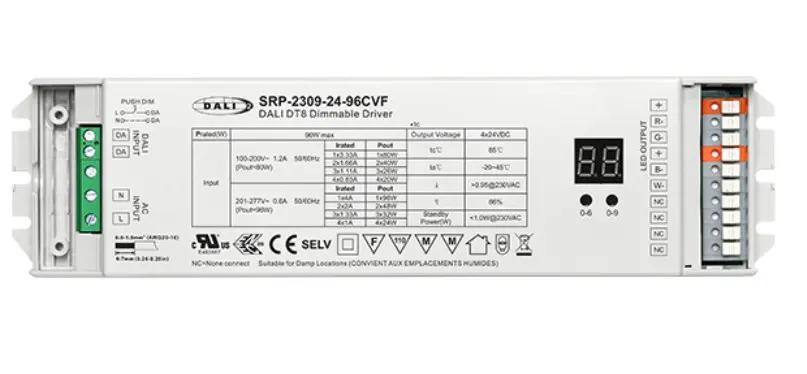

DALI SRP-2309-24-96CVF Powered Decoder 96Watt RGBW Constant Voltage
Call for projects and trade discounts.
12Volt Or 24Volt – This resolute product is a 96watt dimmable DALI-2 driver with 4 channel constant voltage output. It is designed with 100~277VAC input.
This DALI DIN rail mounted controller is designed in full compliance with the standard DALI protocol, ensuring seamless integration with modern lighting systems. The unit allows for flexible addressing, either through manual assignment displayed on its clear numeric digital screen or via automatic configuration by master controllers. Each address can operate synchronously, providing reliable communication across the network. With advanced logarithmic dimming technology, the controller delivers smooth and precise dimming performance from 0% to 100%, enabling comfortable and efficient lighting control. In addition, these decoders are fully compatible with leading systems such as Lutron, Rako, and Mode, making them a versatile solution for both residential and commercial lighting projects.
•Dimmable LED driver, max. output power 96W total
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• 100-277VAC wide input voltage
• 4 channels DC 12V or 24V constant voltage output
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• DALI DT8 device, each device is controlled via a single DALI address
• Any one of three DT8 colour types RGBW, XY Coordinate, Tc can be pre-set by factory setting
• Colour control according to DALI specifications of device type 8
• Compatible with universal DALI masters that support DT8 commands
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
