Advanced Universal Smart Home & AV Control

The RTI T1-B+ is designed for responsive control of sophisticated entertainment and automation systems without relying on touchscreen interfaces.

Ideal applications include:

• Home cinemas
• Media rooms
• Smart homes
• Multi-room audio systems
• Conference rooms
• Hospitality suites
• Commercial AV systems

Its intuitive hard-button layout enables effortless everyday operation for users of all experience levels.

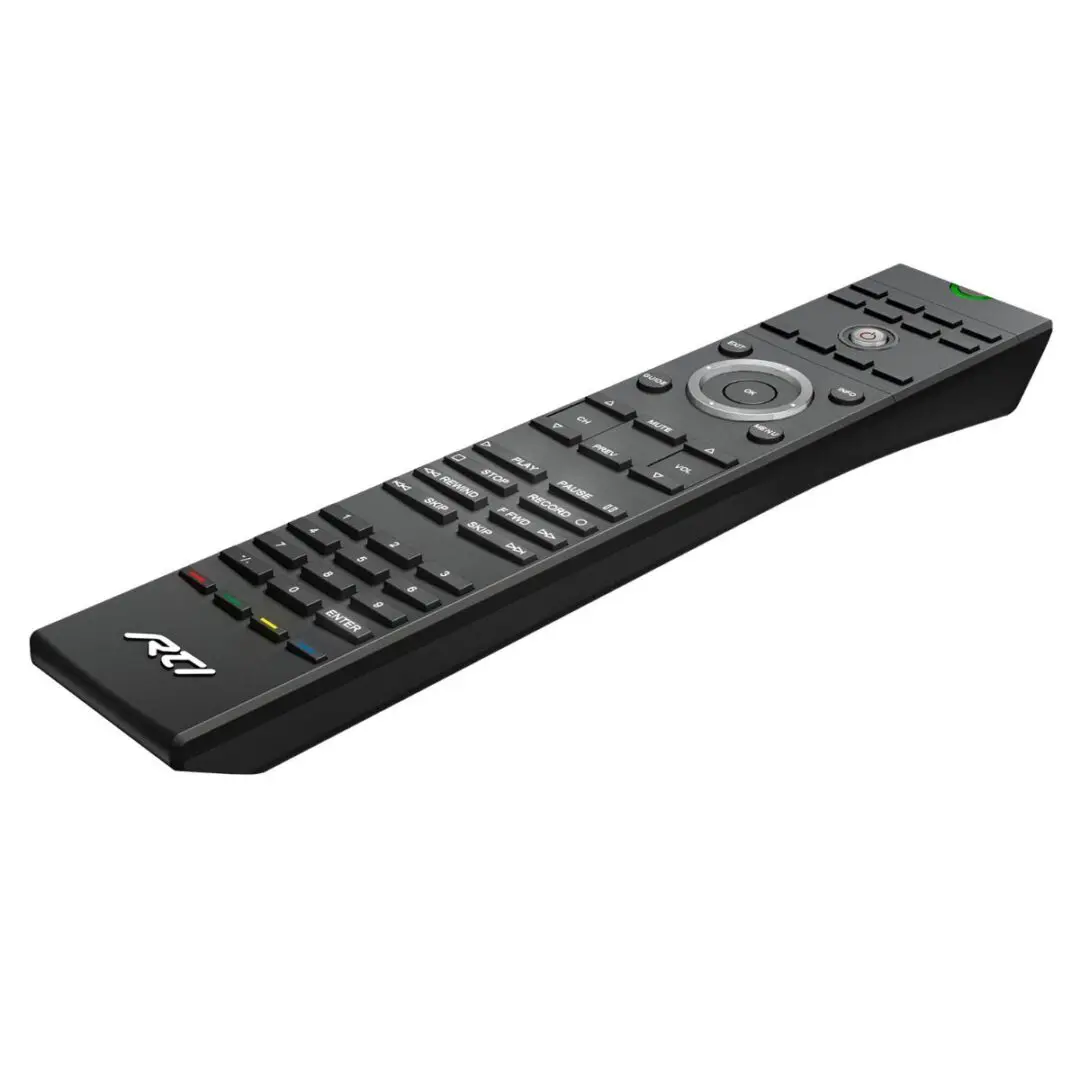

Ergonomic One-Handed Operation

The T1-B+ features a refined ergonomic design optimized for comfortable one-handed use.

Design Highlights

• Slim handheld profile
• Balanced weight distribution
• Intuitive button placement
• Comfortable grip design
• Durable ABS enclosure
• Fast tactile control access

The carefully arranged keypad layout allows quick operation without constant visual attention.

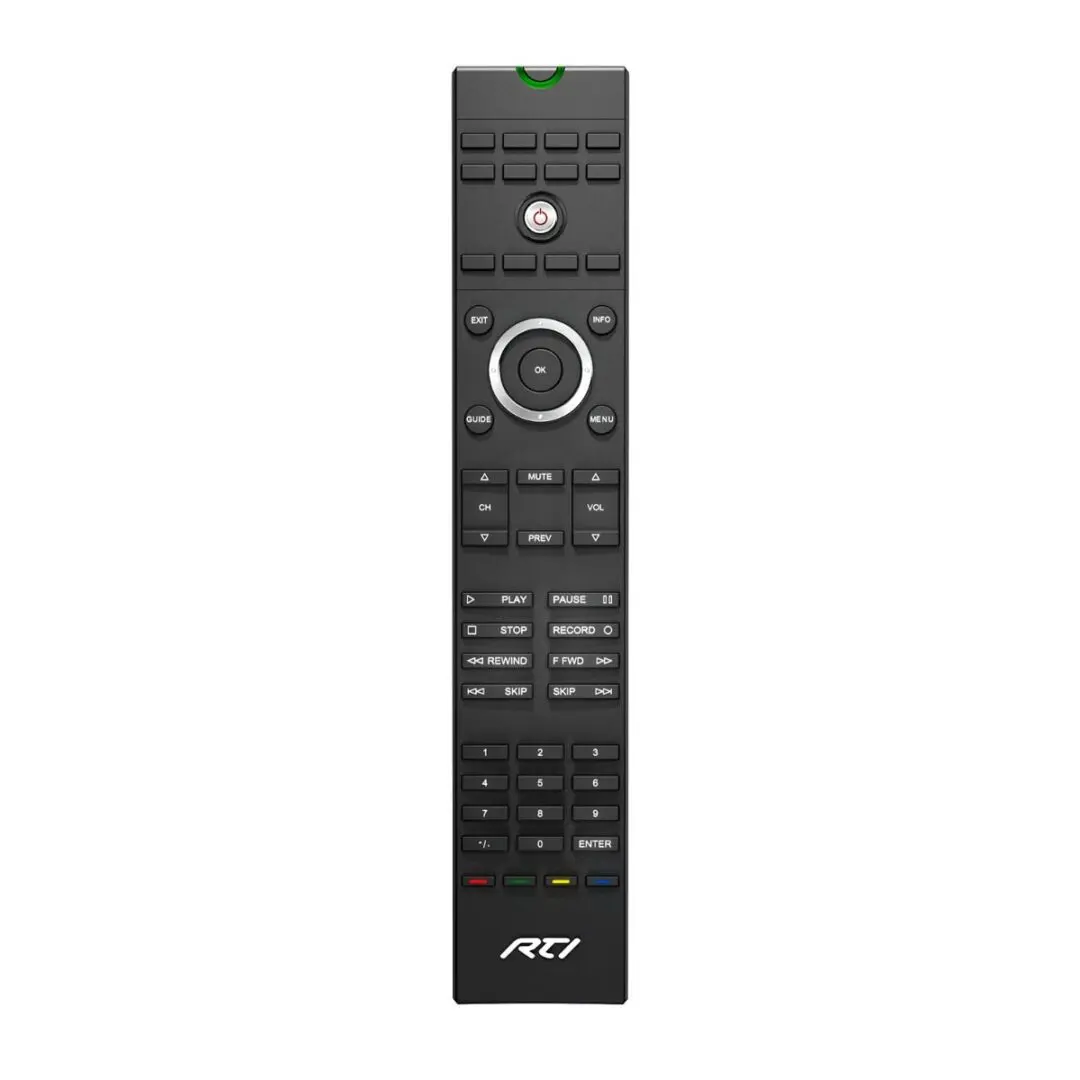

52 Programmable Hard Buttons

The remote includes 52 programmable hard buttons for rapid control of commonly used functions.

Control Functions Include

• Volume adjustment
• Channel selection
• Media playback
• Source switching
• Lighting control
• Smart home scenes
• Navigation commands
• Audio control

This tactile interface delivers significantly faster operation than touchscreen-only control systems.

Integrated Button Backlighting & Two-Way Feedback

The T1-B+ supports real-time two-way feedback through illuminated keypad buttons.

Two-Way Control Features

• Button backlight feedback
• Device status indication
• Responsive system communication
• Smart automation feedback

This provides intuitive operation and enhanced visibility in dark environments such as home cinemas and media rooms.

Dual RF Wireless Communication

The T1-B+ features RTI’s advanced dual RF platform for flexible wireless communication.

RF Technologies

• Zigbee® IEEE802.15.4 communication
• 433MHz RF communication
• Up to 100ft wireless range
• Reliable RTI processor integration

This dual RF capability allows compatibility across a wide range of RTI automation environments.

Integrated Infrared Control

Unlike app-based controllers, the T1-B+ includes built-in infrared transmission for direct control of AV devices.

IR Features

• Direct IR device control
• IR and RF transmission from a single button press
• Wide infrared frequency compatibility
• Up to 30ft IR control range

This enables flexible hybrid system integration without requiring every device to be IP-controlled.

Customisable Buttons with Laser Shark Engraving

The T1-B+ supports RTI’s Laser Shark engraving system for fully personalized button labeling.

Customisation Features

• 8 assignable source buttons
• 4 general-purpose programmable buttons
• Interchangeable key labels
• Custom engraved text and graphics
• Backlit programmable buttons

One free Laser Shark engraved keycap set is included with the remote.

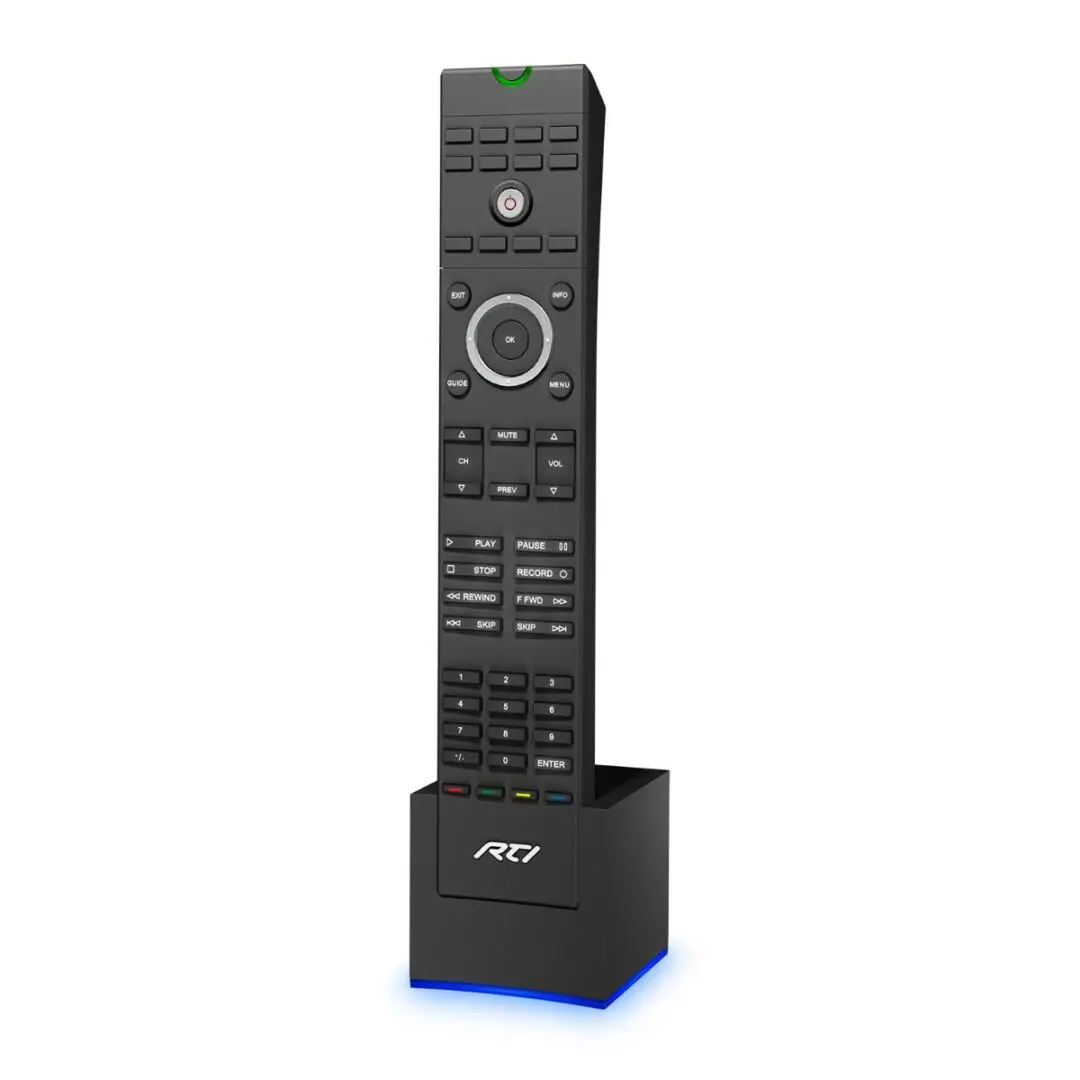

Long Battery Life & Charging Dock

The included lithium-ion battery system provides extended daily operation with convenient charging.

Power Features

• 5–7 days average battery life
• Lithium-ion rechargeable battery
• Included docking station
• 3–4 hour recharge time
• Automatic tilt-switch power management

The charging cradle keeps the remote fully charged and ready for use at all times.

Flexible RTI System Integration

The T1-B+ integrates seamlessly with RTI control processors and accessories.

System Compatibility

RF control requires:

• RTI RM-433 antenna
• RTI ZM-24 transceiver module
• Compatible RTI control processor

Optional RTI modules also support:

• Voltage sensing
• RS-232 control
• Advanced automation integration

Included in the Box

• T1-B+ remote control
• Docking station
• 5V / 2A power supply
• Interchangeable keycap trees (2)
• Wall mount bracket
• Mounting screws & drywall anchors
• Free Laser Shark engraving set

Key Features

• 52 programmable hard buttons
• Dual RF wireless communication
• Zigbee® and 433MHz support
• Integrated IR control
• Backlit keypad buttons
• Two-way status feedback
• Ergonomic one-handed design
• Laser Shark custom engraving support
• Lithium-ion rechargeable battery
• Charging dock included
• IR and RF transmission from one button press

Technical Specifications

Power

• 3.6VDC
• 900mAh lithium-ion battery pack

Power Management

• Automatic On/Off via tilt switch

Infrared Specifications

IR Control Range

• 30ft (9.1m) @ 60°

IR Frequency Range

• 15kHz – 460kHz

RF Communication

RF Technologies

• Zigbee® IEEE802.15.4
• 433MHz RF

RF Range

• Up to 100ft (30.5m)

Charging

Battery Charge Time

• 3–4 hours

Programming

Communication Port

• USB programming port

Physical Specifications

Dimensions (L x W x D)

• 10” x 1.9” x 0.9”
• 254mm x 48mm x 23mm

Weight

• 7 oz (200g) with battery

Construction

• High-impact molded ABS plastic

Environmental Specifications

Operating Temperature

• 0°C to +50°C
• +32°F to +122°F

Operating Humidity

• 5% to 95% non-condensing

Warranty

• Three-Year Manufacturer Warranty (Parts & Labour)
• One-Year Battery Warranty

Why Choose the RTI T1-B+?

Exceptional One-Handed Control

The ergonomic design and tactile buttons make daily operation fast and intuitive.

Consolidates Multiple Remotes

Replace complicated factory remotes with a single professional control solution.

Flexible Wireless & IR Integration

Supports both RF and IR communication for advanced automation flexibility.

Customisable User Experience

Laser engraving and programmable buttons allow personalized control layouts.

Reliable RTI Smart Home Integration

Perfectly suited for professional RTI residential and commercial installations.

Ideal Applications

The RTI T1-B+ is ideal for:

• Home theatre systems
• Media rooms
• Whole-home automation
• Multi-room AV systems
• Hospitality control systems
• Conference room control
• Luxury smart homes
• Commercial AV installations
